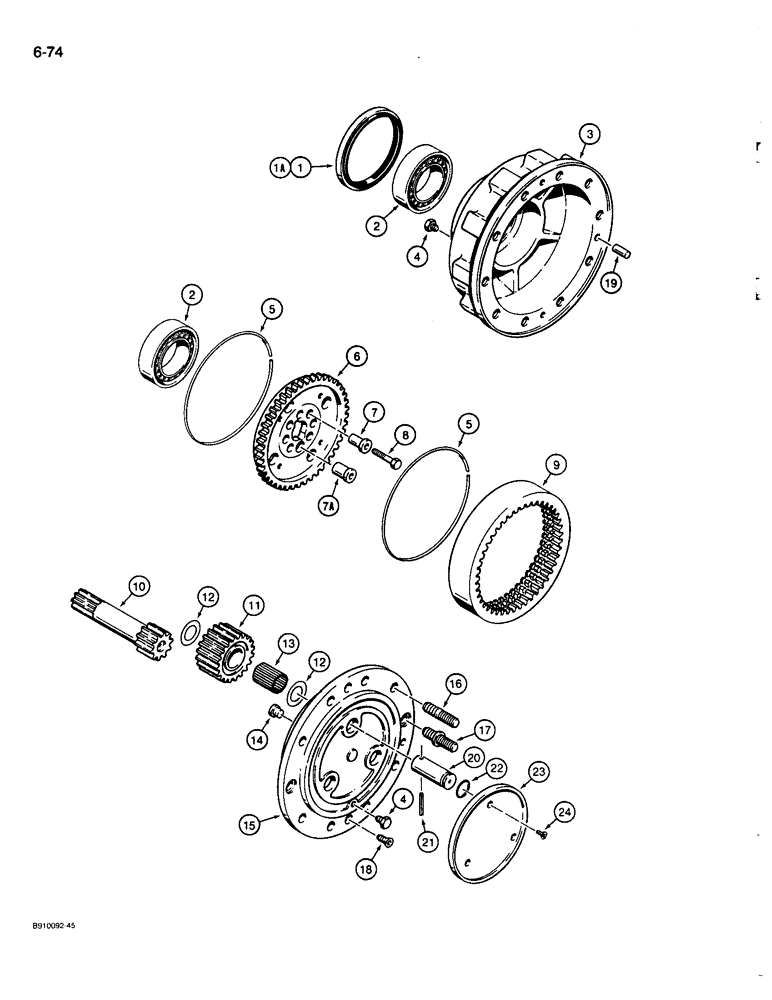

Запчасти Case 680L (6-74) - REAR AXLE, PLANETARY (06) - POWER TRAIN

A186455

AXLE

ASSEMBLY - rear, complete, Carraro No. 123762, parts list Figures 6-66 through 7-02, Includes: Ref. 1 - 24 on this figure, Serial Range: -JJG0070803

1шт.

D147493

AXLE

ASSEMBLY - rear, complete, Carraro No. 126163, parts list Figures 6-66 through 7-02, Includes: Ref. 1 - 24 on this figure JJG0070803 to

1шт.

1

K395102

OIL SEAL

- oil, hub, no longer available, order Ref. 1A seal

2шт.

1a

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

- oil, hub, 149 x 176 x 16, replaces Ref. 1, seal on this figure and Ref. 31 and 32, wear rings on Figure 7-02

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING - ball, hub

4шт.

3

D143084

HUB

- wheel attaching

2шт.

4

A156873

PLUG, DRAIN,M22 x 1.5

4шт.

5

D142979

RING, SNAP

RING - lock

4шт.

6

D142980

CARRIER

HUB - ring gear

2шт.

7

K395105

RING

BUSHING - 20 mm OD, centering

14шт.

7a

K395104

RING

BUSHING - 24 mm OD, centering

2шт.

8

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Special Hex, M14 x 65, Cl 10.9

16шт.

9

D142981

GEAR WHEEL

GEAR - ring, planetary

2шт.

10

D143082

SHAFT

- pinion

2шт.

11

D143081

PINION

GEAR - pinion, planetary

6шт.

12

D142984

WASHER

- thrust, pinion gear

12шт.

13

D143080

BEARING, NEEDLE

BEARING - needle, planetary gear

180шт.

14

K395093

HEADED PIN,12mm OD x 15mm L

PIN - thrust

2шт.

15

D143083

CARRIER

COVER - planetary

2шт.

Ref D143083 subs to P/N 108053A1 carrier, 109642A1 pin 6 mm, 109643A1 pin

1шт.

16

D142986

STUD,88mm L

- special, without collar

16шт.

17

D142987

STUD

- special, with collar, for recessed bolt holes

4шт.

18

K395029

SCREW

- special, planetary cover

4шт.

19

K395094

DOWEL,M18 x 36

Pin, Planetary cover M18 x 36

2шт.

20

D142989

PIN

SHAFT pinion gear

6шт.

Ref. 20 - D142989 shaft replaced by 109642A1 6 mm pin (not a sub). Not required to order when ordering Ref. 15 D143083 planetary cover, since the three nbrs it subs to includes this.

1шт.

21

K260197

PIN

- split, pinion gear shaft

6шт.

Ref. 21 - K260197 pin replaced by 109643A1 pin (not a sub). Not required to order when ordering Ref. 15 D143083 planetary cover, since the three nbrs it subs to includes this.

1шт.

22

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- pinion gear shaft

6шт.

23

D143079

COVER

PLATE planetary cover

2шт.

Ref. 23 - D143079 planetary cover plate - This will sub to D150115 (identical except includes CASE logo). The D150115 will not be available and has been replaced with 3 plugs P/N 112624A1.

1шт.

24

K395082

SCREW,M8 x 20mm

- special, planetary cover plate

6шт.

M20704

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, planetary cover to hub, not shown

1шт.
