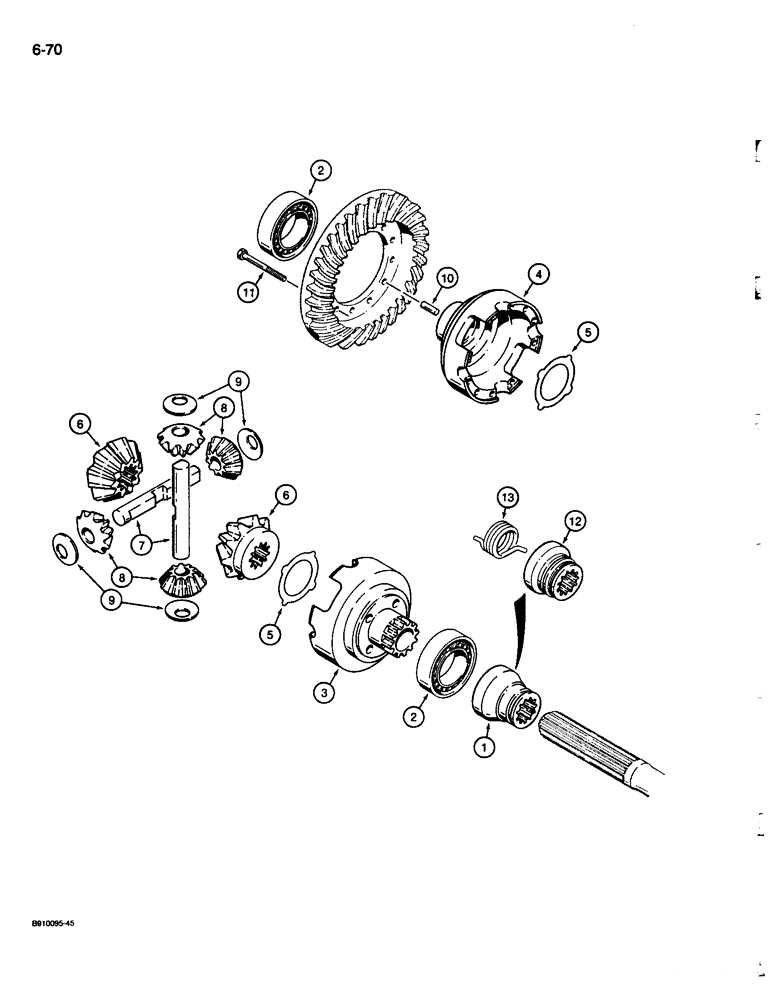

Запчасти Case 680L (6-70) - REAR AXLE, DIFFERENTIAL (06) - POWER TRAIN

A186455

AXLE

ASSEMBLY - rear, complete, Carraro No. 123762, parts list Figures 6-66 through 7-02, Includes: Ref. 1 - 13 on this figure, Serial Range: -JJG0070803

1шт.

D147493

AXLE

ASSEMBLY - rear, complete, Carraro No. 126163, parts list Figures 6-66 through 7-02, Includes: Ref. 1 - 13 on this figure JJG0070803 to

1шт.

1

D143009

SLEEVE

- differential box to right-hand shaft, A186455 axle

1шт.

2

69007

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

- roller

2шт.

D143030

TERMINAL BOX

CASE ASSEMBLY - differential, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

CASE - differential, splined end

1шт.

4

NSS

NOT SOLD SEPARAT

CASE - differential

1шт.

5

D142972

WASHER

- thrust

2шт.

6

D143027

PINION

GEAR - side, differential

2шт.

7

D142970

SHAFT

- pinion gear

2шт.

8

D142969

SUN GEAR

GEAR - pinion

4шт.

9

D142968

WASHER

- thrust, pinion gear

4шт.

10

D143033

DOWEL

PIN - centering, ring gear to differential box

2шт.

11

S300976

BOLT,M12 x 1.5 x 90mm

BOLT - special, ring gear to differential box

10шт.

12

D150112

SLEEVE

- differential box to right-hand shaft, D147493 axle

1шт.

13

D150114

SPRING

- return, internal, D147493 axle, see Figure 6-64 Ref. 20, for spring used with A186455 axle

1шт.

D150827

SLEEVE

24 mm o.a.l., 46 mm OD w/55 mm OD lip, 36 mm ID, spring guide for Ref.13 D150114, the axle shaft goes throught the D150827, Not shown

1шт.
