Запчасти Case 680L (6-66) - REAR AXLE, AXLE HOUSING AND CARRIER (06) - POWER TRAIN

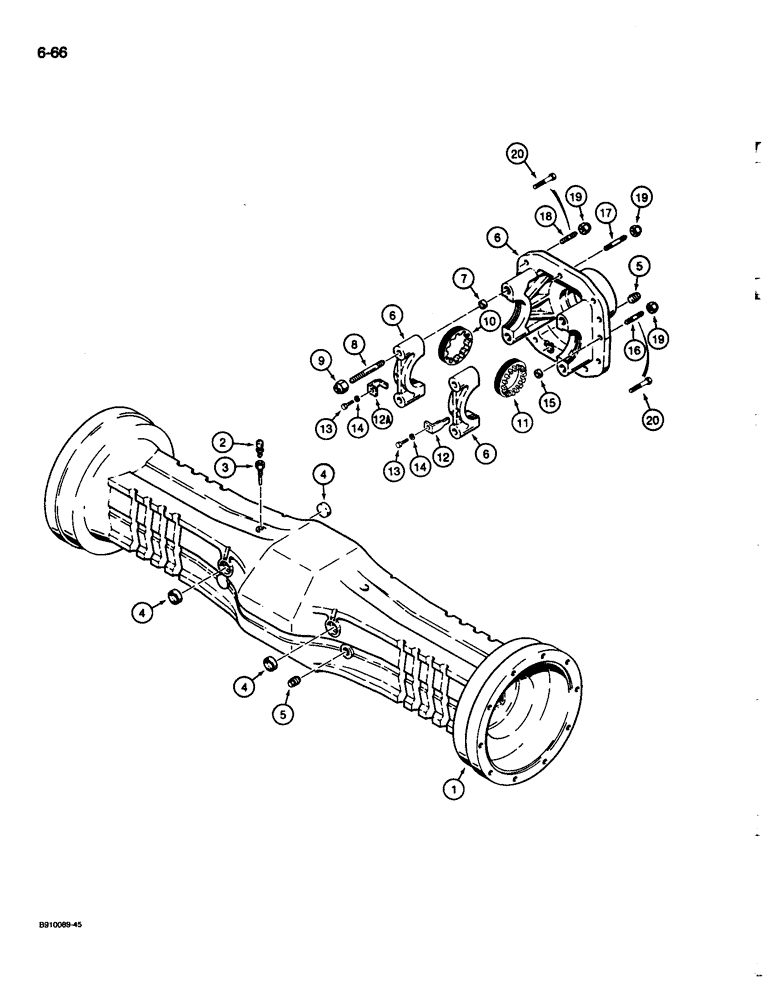

Схема запчастей Case 680L - (6-66) - REAR AXLE, AXLE HOUSING AND CARRIER (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A186455

AXLE

ASSEMBLY - rear, complete, Carraro No. 123762, parts list Figures 6-66 through 7-02, Includes: Ref. 1 - 20 on this figure, Serial Range: -JJG0070803

1шт.

D147493

AXLE

ASSEMBLY - rear, complete, Carraro No. 126163, parts list Figures 6-66 through 7-02, Includes: Ref. 1 - 20 on this figure JJG0070803 to

1шт.

1

D143008

HOUSING

- rear axle

1шт.

2

K965231

BREATHER

- axle housing

1шт.

3

D142949

EXTENSION

- breather

1шт.

4

K956809

PLUG

- large, housing

3шт.

5

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

D143017

SUPPORT ASSY.

CARRIER ASSEMBLY - differential, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

7

K260153

RING

BUSHING - centering, carrier

4шт.

8

D150111

BOLT,Hex Flg, M16 x 2 x 95mm, Cl 12.9

BOLT carrier, replaces D143001

4шт.

9

K260157

NUT

hex, self-locking, special, use with Stud D143001

4шт.

Not required when using new bolt, Ref. 8, D150111

1шт.

10

D142973

RING

- lock, left-hand side mounted

1шт.

11

D143028

CLAMP

RING - lock, right-hand side mounted

1шт.

12

D143032

COVER PLATE

BRACKET - lock, right-hand side mounted

1шт.

12a

K261869

LOCK

BRACKET - lock, left-hand side mounted

1шт.

13

K261871

SCREW

BOLT - hex head, 6 mm-1 x 12 mm, special

2шт.

14

K261870

WASHER

- special

2шт.

15

D143018

BUSHING

- carrier stud

2шт.

16

K262139

STUD

- 59 mm long, center side holes, no longer available, order Ref. 20, bolt

2шт.

17

D143019

STUD

- 61 mm long, upper center hole

1шт.

18

K262139

STUD

- 58 mm long, carrier to housing, no longer available, order Ref. 20, bolt

9шт.

19

905834R1

THIN NUT,M12 x 1.25, Thin

Hex, self-locking, special M12 x 1.25, Thin

1-12шт.

20

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT, , Special Hex Flg, M12 x 33, 12.9

11шт.

M20704

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, carrier to axle housing, not shown

1шт.

Выбрано товаров: 26
