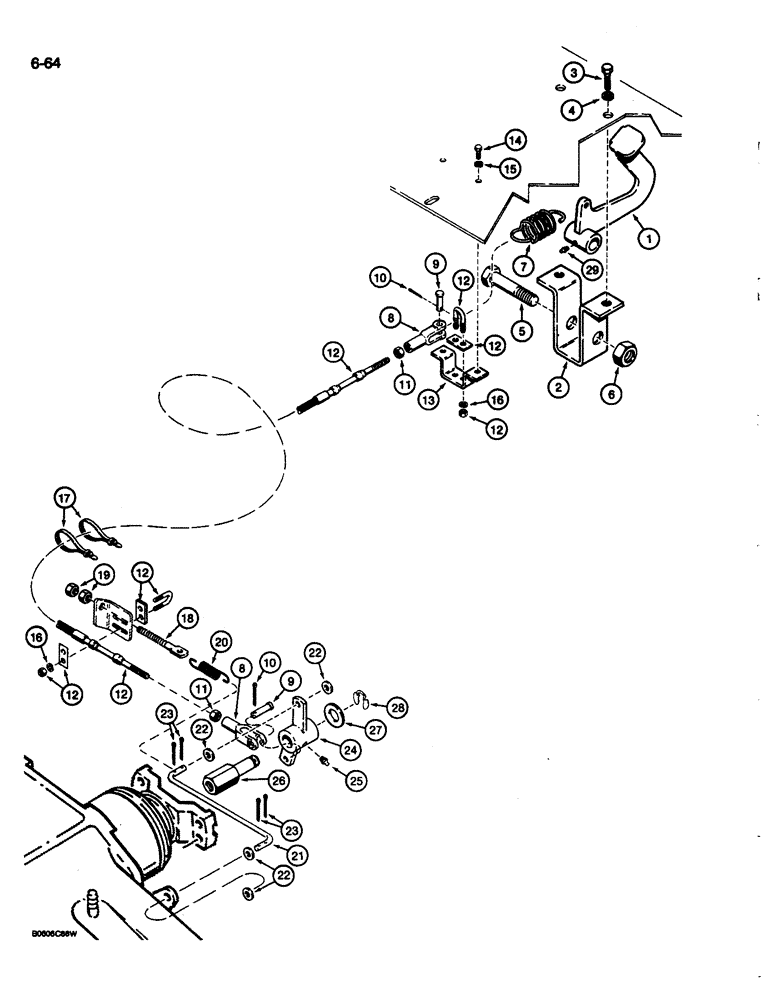

Запчасти Case 680L (6-64) - REAR DRIVE AXLE DIFFERENTIAL LOCK (06) - POWER TRAIN

1

D143437

PEDAL

- differential lock

1шт.

2

D143439

BRACKET

- pedal mounting, mounts to removable main floor plate

1шт.

3

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

113-731

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex, 3/4 NC x 3-1/4 inch, pedal to bracket

1шт.

6

131-197

LOCK NUT,3/4"-10, GC

NUT - hex, self-locking, 3/4"-10 NC, plated

1шт.

7

A183606

SPRING

- pedal return

1шт.

8

A63015

YOKE

CLEVIS - cable end

2шт.

9

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

2шт.

10

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

11

129-37

NUT,#10-32

2шт.

12

D140500

CABLE

- differential lock, includes hardware which is not serviced separately

1шт.

13

D143441

BRACKET

- cable mounting, attaches to removable main floor plate

1шт.

14

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

18

D143459

ROD

- spring retainer, mounts through bracket tab on fuel tank if used, use with item 20, spring

1шт.

19

9635082

NUT,5/16" - 18, Gr 5

If used, use with item 20, spring 5/16"-18, G5

2шт.

20

R29843

SPRING

- extension, attaches to control rod at rear axle, use with A186455 rear axle, see item 13 on Figure 6-70 for spring used with D147493 rear axle

1шт.

21

D142108

ROD

- control, lever to rear axle

1шт.

22

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

23

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

24

D142112

CRANK LEVER

LEVER - pivot, lower, at rear axle

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

26

D142092

PIN

- lever mounting, use with Loctite (shown below) to attach to existing rear axle housing

1шт.

27

895-11020

WASHER,M20 x 37 x 3

- flat, 22 x 37 x 3 mm

1шт.

28

D95097

RING, SNAP

RETAINER - pin

1шт.

29

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4"-28 NF

1шт.

B17423

LOCTITE

- No. 271, high strength, 50 ml tube, use with Ref. 26 pin

1шт.
