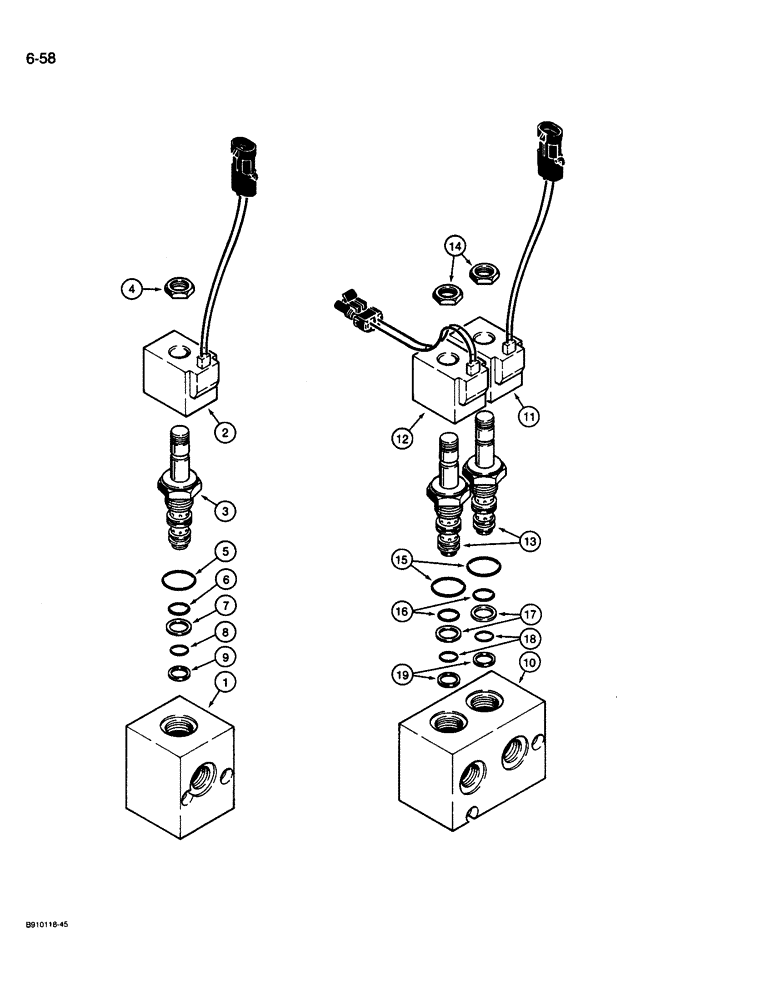

Запчасти Case 680L (6-58) - SOLENOID VALVE, SINGLE, PRIOR TO P.I.N. JJG0070953 (06) - POWER TRAIN

D143719

VALVE

ASSEMBLY - solenoid, clutch cutout, transmission, Includes: Ref. 1 - 9, Serial Range: -JJG0070953

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - solenoid

1шт.

2

D144211

COIL ASSY.

COIL - solenoid

1шт.

3

D144212

VALVE

ASSEMBLY - solenoid, internal component parts not serviced separately, Includes: Ref. 4 - 9

1шт.

4

D144213

NUT

- hex, jam, 1/2 inch NF

1шт.

D144214

SEAL

KIT - external seals, solenoid valve, Includes: Ref. 5 - 9

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Valve body, large, upper

1шт.

6

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- valve body, center

1шт.

7

T40181

RING

- backup, center O-ring

1шт.

8

A8613

O-RING,0.426" ID x 0.566" OD

- valve body, small, lower

1шт.

9

D75841

OIL SEAL

RING - backup, small lower O-ring

1шт.

D147091

VALVE

ASSEMBLY - dual solenoid, clutch cutout, transmission and four wheel drive engagement/disengagement, Includes: Ref. 10 - 19, Start Serial: JJG0070953

1шт.

10

NSS

NOT SOLD SEPARAT

BLOCK - solenoid

1шт.

11

D144211

COIL ASSY.

COIL - solenoid, clutch cutout

1шт.

12

D148721

COIL

- solenoid, four wheel drive engagement/disengagement

1шт.

13

D144212

VALVE

ASSEMBLY - solenoid, internal component parts not serviced separately, Includes: Ref. 14 - 19

2шт.

14

D144213

NUT

- hex, jam, 1/2 inch NF

1шт.

D144214

SEAL

KIT - external seals, solenoid valve, Includes: Ref. 15 - 19

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Valve body, large, upper

1шт.

16

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- valve body, center

1шт.

17

T40181

RING

- backup, center O-ring

1шт.

18

A8613

O-RING,0.426" ID x 0.566" OD

- valve body, small, lower

1шт.

19

D75841

OIL SEAL

RING - backup, small lower O-ring

1шт.
