Запчасти Case 680L (6-54) - TRANSMISSION COOLING SYSTEM, MOUNTING, AND DIPSTICK (06) - POWER TRAIN

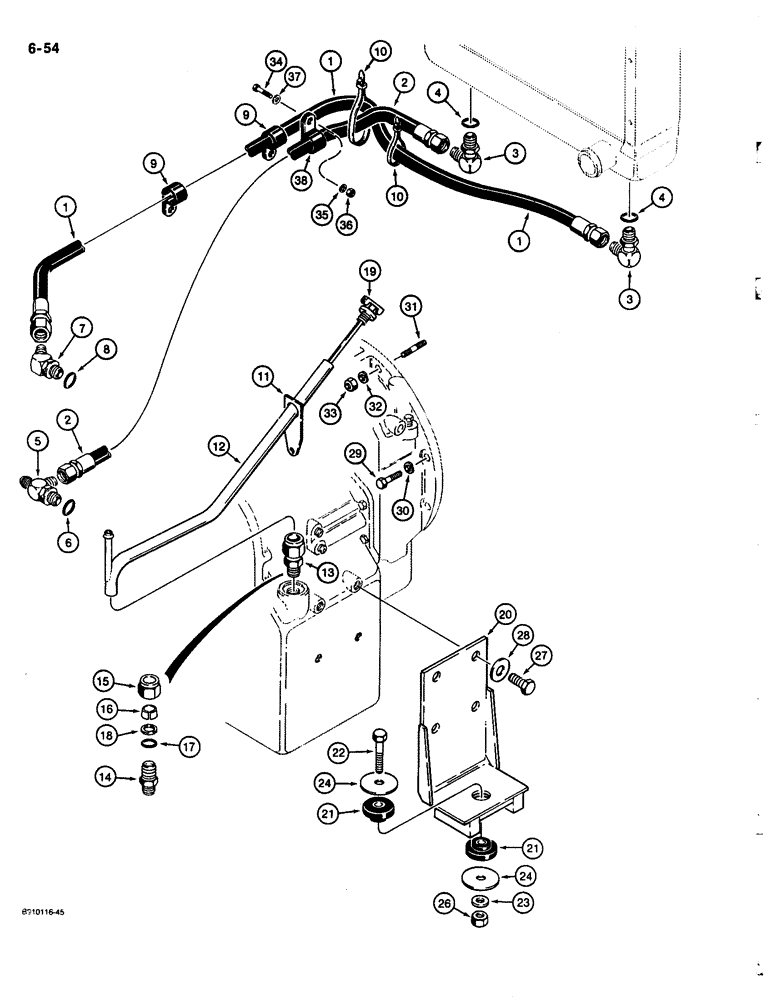

Схема запчастей Case 680L - (6-54) - TRANSMISSION COOLING SYSTEM, MOUNTING, AND DIPSTICK (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

D143447

HOSE ASSY.

HOSE - 1788 mm long, transmission from cooler

1шт.

2

D143446

HOSE ASSY.

HOSE - 1377 mm long, Serial Range: transmission-cooler

1шт.

3

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Includes: Ref. 4

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

5

218-5578

TEE,9/19/16"-18, 37 Degree x 1 1/16"-12, O-Ring Run

- adjustable, Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Tee

1шт.

7

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, adjustable, Includes: Ref. 8

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

9

S88820

CLAMP

- hose

2шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

11

D132042

SUPPORT ASSY.

SUPPORT - dipstick tube holder

1шт.

12

D143686

TUBE

- transmission dipstick

1шт.

13

222-3006

FITTING,1 1/2"-12 x 3/4" NPT

CONNECTOR ASSEMBLY - straight, dipstick, Includes: Ref. 14 - 18

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

15

222-3111

TUBE NUT,1"-12

NUT - connector

1шт.

16

222-3105

SLEEVE,1" Tube

- connector

1шт.

17

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- connector

1шт.

18

D54295

RING

- backup, connector O-ring

1шт.

19

D140207

DIPSTICK

- transmission oil level

1шт.

20

D147641

BRACKET

- transmission mounting

2шт.

21

R49482

RUBBER MOUNTING

INSULATOR - mount

4шт.

22

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

23

196-31

WASHER

- flat, 5/8", plated, hardened

2шт.

24

196-27

WASHER,21/32" x 3" x .179", HDN

- flat, 5/8", plated, hardened

4шт.

26

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

27

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

28

25712R1

WASHER

- flat, 3/4", plated, hardened

8шт.

29

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex head, 10 mm-1.5 x 40 mm, plated

10шт.

30

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

10шт.

31

L112126

STUD

-, Serial Range: transmission-housing

2шт.

32

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

2шт.

33

825-1110

NUT,M10, Cl 8

- hex, 10 mm - 1.5, Cl 8, plated

2шт.

34

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

35

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

36

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

37

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

1шт.

38

R14668

CLAMP

- hose

1шт.

Выбрано товаров: 37
