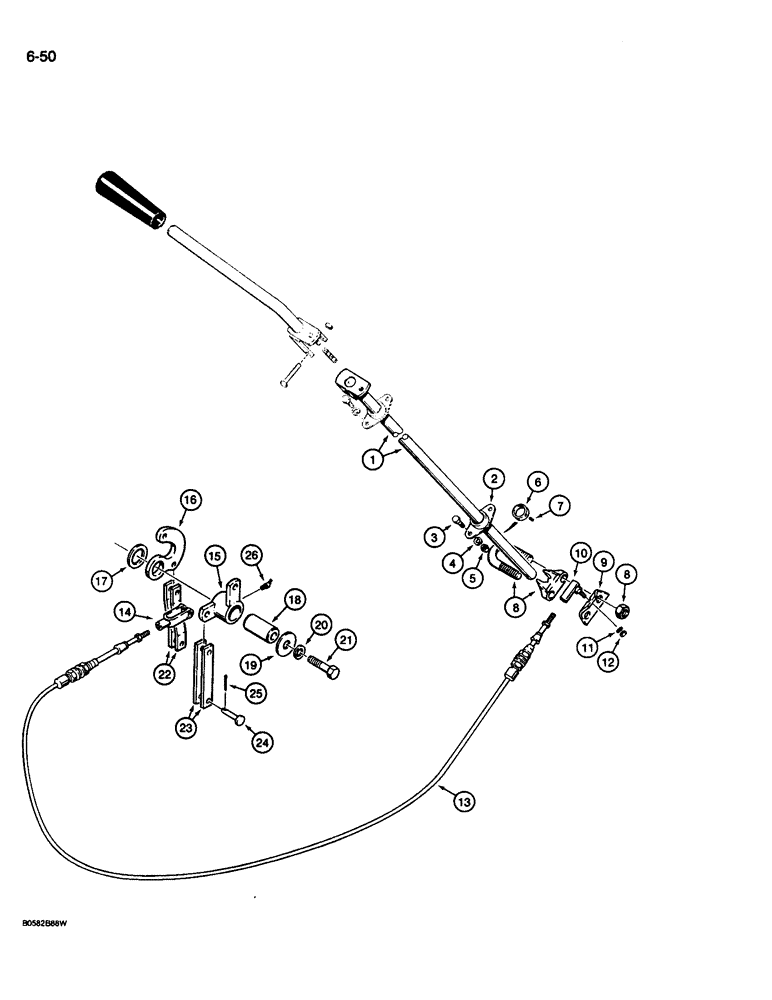

Запчасти Case 680L (6-50) - TRANSMISSION CONTROLS FORWARD AND REVERSE, LOWER LINKAGE (06) - POWER TRAIN

1

D142018

SHAFT

- lower, shuttle linkage

1шт.

2

H755785

FLANGED BEARING,15.88mm ID

BEARING - lower shaft

1шт.

3

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

D81756

COLLAR

ASSEMBLY - set, 5/8" ID, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

COLLAR - shaft

1шт.

7

178-888

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex socket head, 1/4"-20 NC x 1/4"

1шт.

8

L79112

CLAMP

- shuttle cable, includes U-bolt and nuts

1шт.

9

L108603

BRACKET

- shuttle cable

1шт.

10

A10329

BALL JOINT,1/4" - 28 x 1"

- shuttle cable

1шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

12

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

13

D127025

CABLE PULLING GRIP

CABLE - transmission shuttle control

1шт.

14

A18709

CLEVIS

- cable end

1шт.

15

D147827

CRANK LEVER

LEVER - shuttle

1шт.

16

D147826

CRANK LEVER

LEVER - range

1шт.

17

495-81236

WASHER,1 1/16" x 1 1/2" x .032"

- flat, 1 inch, special, shim

1шт.

18

D145292

BUSHING

- lever

1шт.

19

495-81240

WASHER,17/32" x 1 1/2" x .083"

- flat, 1/2 inch, special

1шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

21

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

1шт.

22

L101554

DRAG LINK

LINK - range control

2шт.

23

L101553

DRAG LINK

LINK - shuttle control

2шт.

24

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

5шт.

25

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

5шт.

26

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8" NPT, special short

1шт.
