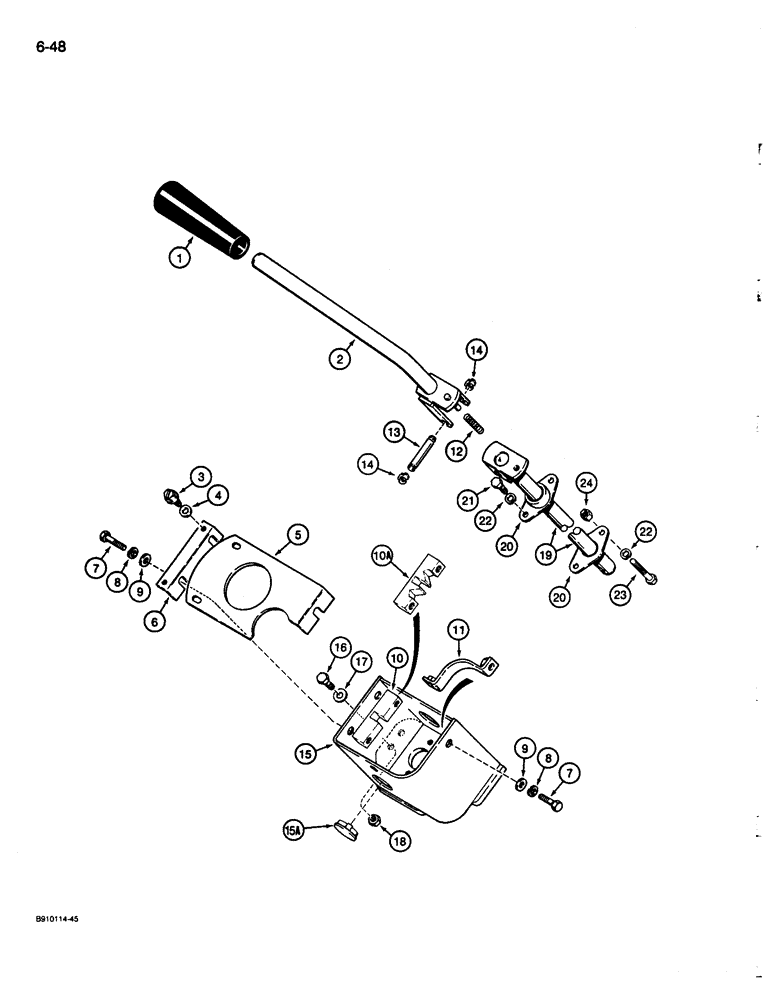

Запчасти Case 680L (6-48) - TRANSMISSION CONTROLS FORWARD AND REVERSE, UPPER LINKAGE (06) - POWER TRAIN

1

D86694

KNOB

HANDLE - shift lever

1шт.

2

D142017

LEVER ASSY.

LEVER - shift, forward and reverse

1шт.

3

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - hex washer, slotted, self-tapping, No. 10 NC x 3/8 inch

2шт.

4

195-513

WASHER,#10

- flat, No. 10, plated

2шт.

5

D142029

COVER

- shuttle control

1шт.

6

D142031

ANGLE

BRACKET - cover mounting

1шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16"-18 NC x 1", plated

4шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

9

195-103

WASHER,5/16"

- flat, , plated 5/16"

4шт.

10

D144498

DETENT

BLOCK - shuttle lever detent, no longer available, order D145104 block, Ref. 10A

1шт.

10a

D145104

DETENT

BLOCK - shuttle lever detent

1шт.

11

D142032

SPECIAL CLAMP

CLAMP - column

1шт.

12

A136803

SPRING

- detent

1шт.

13

D147474

PIN

- pivot, 40 mm long, replaces bolt and nut used on some models

1шт.

14

D143414

CIRCLIP

RING - retaining

2шт.

15

D142025

HOUSING ASSY.

HOUSING - shuttle linkage

1шт.

15a

353-411

PLUG,Dome, 1.000" hole, Nylon

Shuttle housing Dome, 1.000" hole, Nylon

2шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

18

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8"-16 NC, plated

2шт.

19

D142018

SHAFT

- lower, shuttle linkage, see Figure 6-50 for lower, Serial Range: linkage-transmission

1шт.

20

H755785

FLANGED BEARING,15.88mm ID

BEARING - shuttle linkage

2шт.

21

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

2шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

23

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

24

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.
