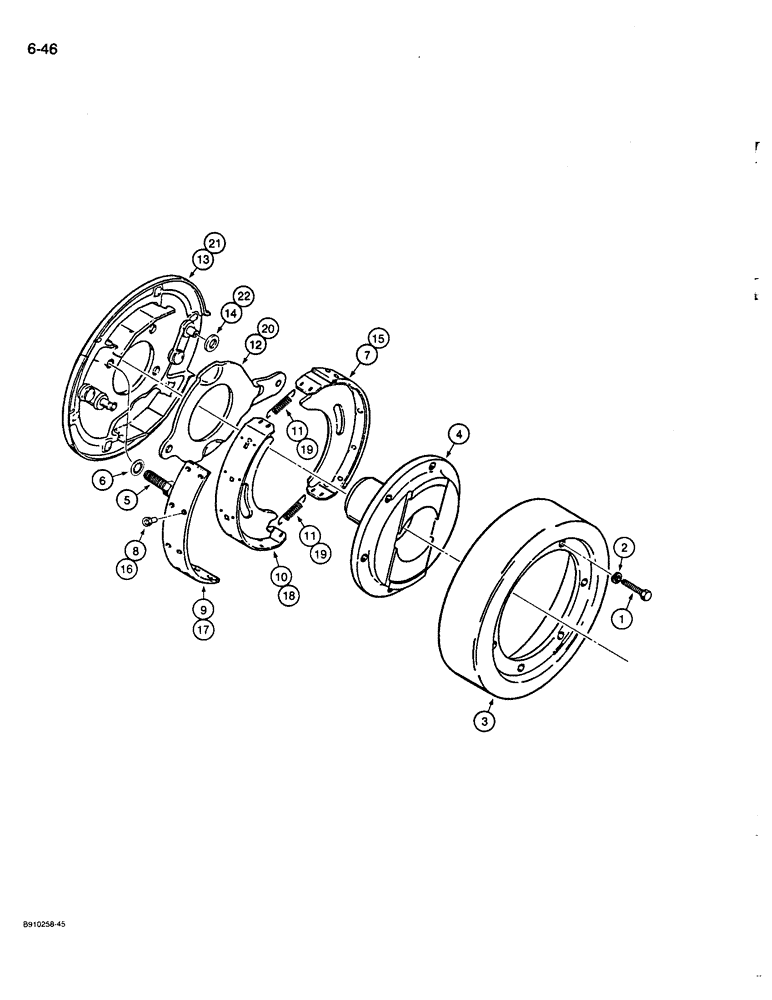

Запчасти Case 680L (6-46) - TRANSMISSION PARKING BRAKE, TWO WHEEL AND FOUR WHEEL DRIVE MODELS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - two wheel and four wheel drive, see Figure 6-22 for transmission options, parts list Figures 6-22 through 6-46, Includes: Ref. 1 - 14 and 15 - 22 on this figure

1шт.

1

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- hex head, 3/8"-24 NF x 3/4", plated

6шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

3

A17982

DRUM

- parking brake

1шт.

4

A19927

FLANGE

- output

1шт.

5

113-508

BOLT,Hex, 9/16" - 12 x 1-1/2", Gr 5, Full Thd

- hex head, 9/16"-12 NC x 1", plated

4шт.

6

193-33

LOCK WASHER,9/16"

WASHER - internal tooth lock, 9/16"

4шт.

L33577

BRAKE

ASSEMBLY - parking, D141242 and D141243 transmission, see Figure 6-22 for correct transmission, Includes: Ref. 7 - 14

1шт.

7

D47524

BRAKE SHOE

SHOE AND LINING ASSEMBLY parking brake, subs from A18133, single shoe with lining riveted, Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

RIVET - lining to shoe, see lining and rivet kit A18136 below

10шт.

9

NSS

NOT SOLD SEPARAT

LINING - brake shoe, see lining and rivet kit A18136 below

1шт.

10

NSS

NOT SOLD SEPARAT

SHOE - parking brake

1шт.

11

N8445

SPRING

- shoe return

2шт.

12

D60994

LEVER

- parking brake actuating

1шт.

13

L33578

PLATE ASSY.

PLATE - backing, parking brake

1шт.

14

L33579

ROLLER

- lever

1шт.

A18136

KIT

lining and rivet, includes two linings (Ref. 9) and 20 rivets (Ref. 8) to service the entire parking brake, parking brake assembly - L33577

1шт.

D150537

BRAKE ASSY.

BRAKE ASSEMBLY - parking, D147319 transmission, see Figure 6-22 for correct transmission, Includes: Ref. 15 - 22

1шт.

15

D150534

BRAKE SHOE

SHOE AND LINING ASSEMBLY - parking brake, Includes: Ref. 16 - 18

2шт.

16

NSS

NOT SOLD SEPARAT

RIVET - lining to shoe, see lining and rivet kit D150535 below

10шт.

17

NSS

NOT SOLD SEPARAT

LINING - brake shoe, see lining and rivet kit D150535 below

1шт.

18

NSS

NOT SOLD SEPARAT

SHOE - parking brake

1шт.

19

N8445

SPRING

- shoe return

2шт.

20

D60994

LEVER

- parking brake actuating

1шт.

21

L33578

PLATE ASSY.

PLATE - backing, parking brake

1шт.

22

L33579

ROLLER

- lever

1шт.

D150535

LINING

KIT lining and rivet, includes two linings (Ref. 17) and 20 rivets (Ref. 16) to service the entire parking brake, parking brake assembly - D150537

1шт.
