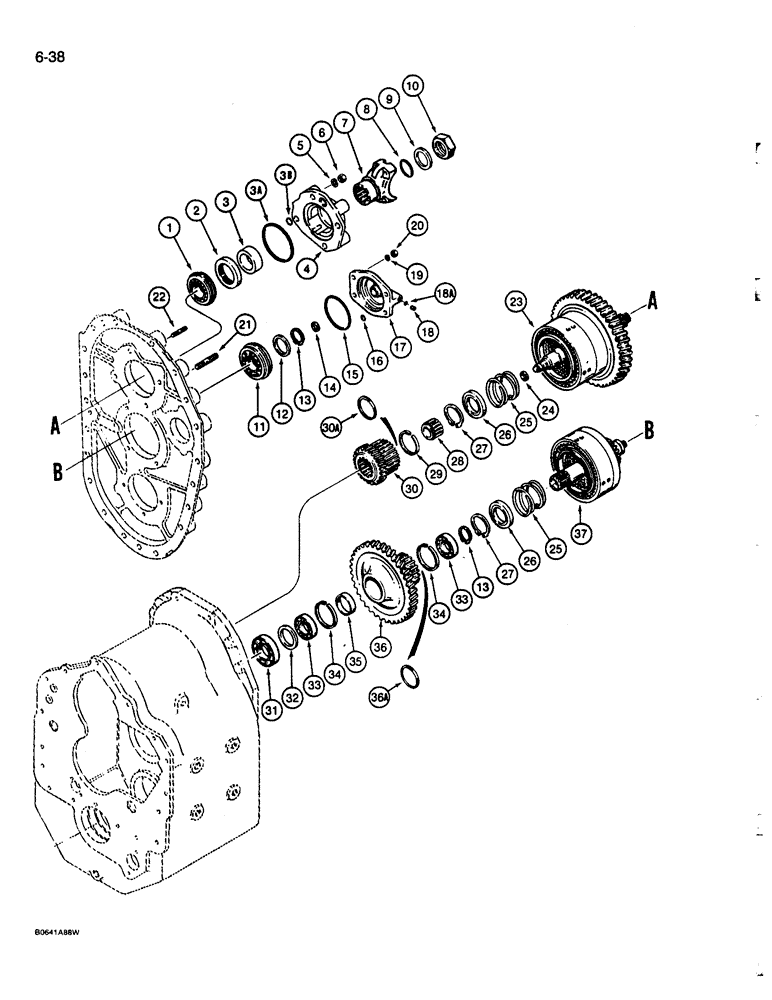

Запчасти Case 680L (6-38) - TRANSMISSION LOW AND THIRD GEARS, TWO WHEEL AND FOUR WHEEL DRIVE MODELS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - two wheel and four wheel drive, see Figure 6-22 for transmission options, parts list Figures 6-22 through 6-46, Includes: Ref. 1 - 37 on this figure

1шт.

1

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING - rear

1шт.

2

E114372

OIL SEAL,53.98mm ID x 79.55mm OD x 9.53mm Thk

- oil, rear bearing cap

1шт.

3

E114374

SPACER

- flange

1шт.

3a

A27817

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

- large, bearing cap

1шт.

3b

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- small, bearing cap

1шт.

4

E114376

CYLINDER END CAP

CAP - rear bearing

1шт.

5

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

4шт.

6

129-126

NUT,9/16"-18, G8

- hex, 9/16"-18 NF

4шт.

7

A19927

FLANGE

- parking brake

1шт.

8

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- flange

1шт.

9

A17938

WASHER

- flange, large

1шт.

10

A55863

LOCK NUT

- flange, special

1шт.

11

N7276

BALL BEARING,50mm ID x 110mm OD x 27mm W

BEARING - rear, low speed shaft

1шт.

12

E114268

BEARING WASHER

WASHER - rear bearing support

1шт.

13

E114334

CLIP

RING - snap, bearing retainer

2шт.

14

N7260

RING

- piston, low shaft

1шт.

15

N8134

O-RING

- rear bearing cap, large

1шт.

16

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- bearing cap, rear, small

1шт.

D142544

COVER ASSY

HOUSING ASSEMBLY - rear bearing cap, Includes: Ref. 17 - 18A

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - rear bearing

1шт.

18

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

1шт.

18a

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, plug

1шт.

19

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

20

425-117

NUT,7/16"-20, G5

- hex, 7/16"-20 NF, plated

4шт.

21

N7209

BEARING CAP

STUD - bearing cap

4шт.

22

N7210

STUD

- bearing cap, rear

4шт.

23

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - third, parts list Figure 6-40

1шт.

24

N7260

RING

- piston

1шт.

25

E114331

SPRING

- piston return

2шт.

26

E114332

RETAINER

- spring

2шт.

27

E114328

RING, SNAP

RING - snap, spring retainer

2шт.

28

N7211

ROLLER CAGE BEARING,38.1mm ID x 47660mm OD x 25.4mm

BEARING - pilot

1шт.

29

S117877

RING

- retainer, third gear and hub

1шт.

30

N8418

GEAR WHEEL

GEAR - third, Includes: Ref. 30A

1шт.

30a

N13129

RING

- retaining, gear, third

1шт.

The oil retaining ring is an internal part of the hub and gear and it is recommended that the ring should not be removed.

1шт.

31

E114340

BALL BEARING

BEARING - front, low speed clutch shaft

1шт.

32

E114341

SPACER

- front bearing

1шт.

33

S89657

BEARING

- gear, low speed

2шт.

34

S89658

RING

- locating, low speed gear bearing

2шт.

35

N7213

SPACER

- low speed gear

1шт.

36

N7214

GEAR

HUB - low gear, Includes: Ref. 36A

1шт.

36a

N13129

RING

- retaining, low gear hub

1шт.

The oil retaining ring is an internal part of the hub and gear and it is recommended that the ring should not be removed.

1шт.

37

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - low, parts list Figure 6-28

1шт.
