Запчасти Case 590L (6-32) - TRANSMISSION ASSEMBLY, TRANSMISSION SHIFTER MECHANISM, TWO-WHEEL OR FOUR-WHEEL DRIVE (06) - POWER TRAIN

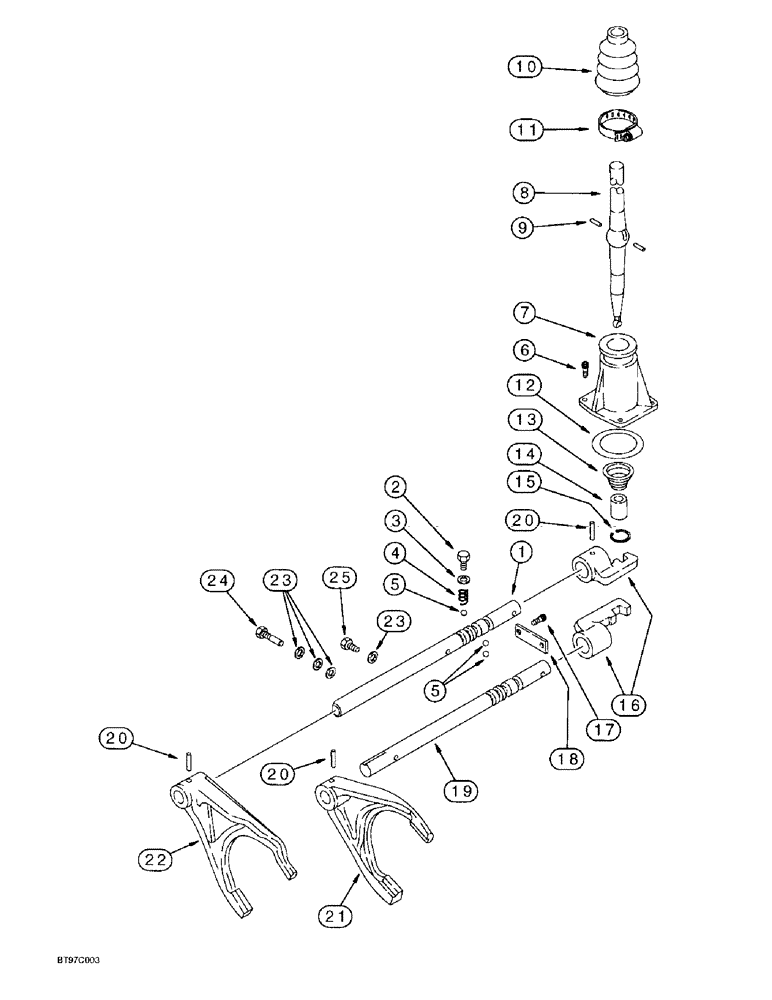

Схема запчастей Case 590L - (6-32) - TRANSMISSION ASSEMBLY, TRANSMISSION SHIFTER MECHANISM, TWO-WHEEL OR FOUR-WHEEL DRIVE (06) - POWER TRAIN
5
24
20
19
4
14
10
8
20
9
5
20
2
21
23
25
1
18
7
11
3
17
23
22
15
12
16
13
6

Артикул

Название

Примечание

Количество

123842A1

TRANSMISSION

ASSEMBLY - two wheel drive, parts list Figures 6-24, 6-26, 6-30 - 6-38 and 6-42, Includes: Ref. 1 - 20

1шт.

See Figure 6-24 for remanufactured transmission part numbers.

1шт.

123843A1

TRANSMISSION

ASSEMBLY - four wheel drive, parts list Figures 6-24 and 6-28 - 6-44, Includes: Ref. 1 - 20

1шт.

See Figure 6-24 for remanufactured transmission part numbers.

1шт.

1

181206A1

ROD

RAIL - shifter fork, third and fourth, replaces 181204A1,181204A2 rail, no longer included in transmission assembly, included in 256888A3 synchronizer kit, see below

1шт.

Part of Service Kit, part number 256888A3

1шт.

2

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 16 mm

3шт.

3

1966835C1

SEALING WASHER

- flat, special, 12 x 16 x 1.5 mm

3шт.

Part of Seal Kits, part numbers 278302A1 and 278836A1

1шт.

4

1966993C1

SPRING

- detent

2шт.

Part of Seal Kits, part numbers 278302A1 and 278836A1

1шт.

5

181139A1

BALL,10mm OD

- detent

4шт.

6

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 25, 8.8

3шт.

7

181171A1

COVER

- shift lever

1шт.

8

190428A3

LEVER

Shift, Replaces 190428A1, 190428A2 lever, No longer included in transmissoin assembly, Included in 256888A3 synchronizer kit

1шт.

Part of Service Kit, part number 256888A3

1шт.

9

1967585C1

PIN

Shift lever, no longer included in transmission assembly, included in 256888A3 synchronizer kit, see below

2шт.

Part of Service Kit, part number 256888A3

1шт.

10

1967581C1

BOOT

Rubber, no longer included in transmission assembly, included in 256888A3 synchronizer kit, see below

1шт.

Part of Service Kit, part number 256888A3

1шт.

11

181177A1

CLAMP

- adjustable

1шт.

Part of Seal Kits, part numbers 278302A1 and 278836A1

1шт.

12

181138A1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

- sealing

1шт.

Part of Seal Kits, part numbers 278302A1 and 278836A1

1шт.

13

278533A1

SPRING

Shift lever, replaces 1967586C1, no longer included in transmission assembly, included in 256888A3 synchronizer kit

1шт.

Part of Service Kit, part number 256888A3

1шт.

14

278532A1

BUSHING

Shift lever, Replaces 181180A1 bushing, no longer included in transmission assembly, included in 256888A3 synchronizer kit

1шт.

15

279039A1

RING, SNAP

Replaces 800-1115 ring, no longer included in transmission assembly, included in 256888A3 synchronizer kit

1шт.

Part of Seal Kits, part numbers 278302A1 and 278836A1

1шт.

16

181173A1

SELECTOR

SHIFTER - rail

2шт.

17

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

BOLT - hex socket, 10 - 1.5 x 25 mm

2шт.

Part of Seal Kits, part numbers 278302A1 and 278836A1

1шт.

18

181175A1

PLATE

Retainer, Detent ball

1шт.

19

181245A1

ROD

RAIL - shifter fork, first and second; included in 256888A3 synchronizer kit, see below

1шт.

20

905794R1

PIN,M6 x 30, Coiled

- roll, 6 x 30 mm; included in 256888A3 synchronizer kit, see below

2-4шт.

Part of Seal Kits, part numbers 256888A3 and 278302A1

1шт.

21

181203A1

SHIFTER FORK

FORK - gear shift, first and second

1шт.

22

181174A2

SHIFTER FORK

Gear shift, third and fourth, replaces 181174A1 fork, no longer included in transmission assembly, included in 256888A3 synchronizer kit

1шт.

Part of Service Kit, part number 256888A3

1шт.

23

181104A1

COPPER WASHER

WASHER - sealing, copper

4шт.

Part of Seal Kits, part numbers 278302A1 and 278836A1

1шт.

24

181275A1

BOLT

BOLT - hex, special

1шт.

25

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

1шт.

256888A3

SYNCHRONIZER

KIT, Incl: Ref. 1, 8 - 10, 13 - 15, 19, 20, 22; plus parts on Figures 6-32, 6-36, 6-38. Also incl 190436A1 spring, Ref 37 on 6-42. Also incls (1) 278531A1 washer which is NSS and not shown.

1шт.

278302A1

SET OF PARTS

KIT - seal, transmission overhaul, two wheel drive, includes Ref. 3, 4, 11, 12, 15, 17, 20 and 23 above, also see kit parts on Figures 6-24, 6-26, 6-32 - 6-38 and 6-42

1шт.

278836A1

SET OF PARTS

KIT - seal, transmission overhaul, four wheel drive, includes Ref. 3, 4, 11, 12, 15, 17 and 23 above, also see kit parts on Figures 6-24, 6-28 and 6-32 - 6-44

1шт.
