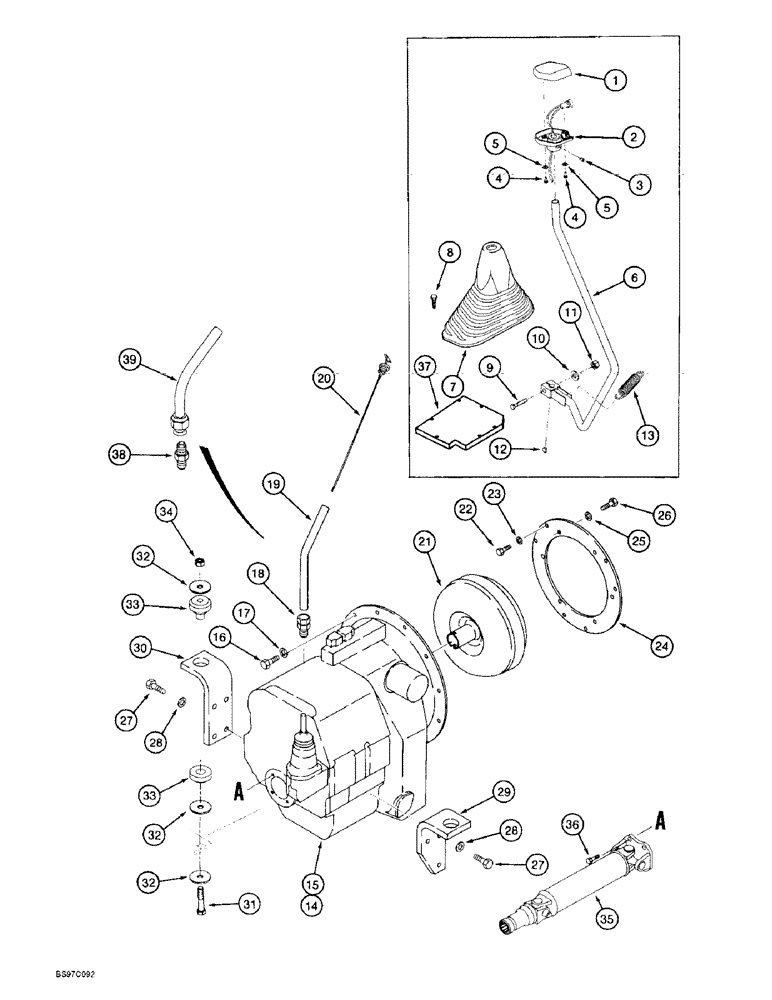

Запчасти Case 590L (6-22) - TRANSMISSION MOUNTING, DRIVE SHAFT, DIPSTICK AND GEAR SHIFT LEVER (06) - POWER TRAIN

1

187714A1

KNOB

Upper, Cover

1шт.

2

187715A1

KNOB

Lower

1шт.

3

484-6316

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

SCREW - set, hex socket headless, 5/16 NF x 3/8 inch, half dog point

1шт.

4

459-11014

SCREW,Pan HD, #10 - 32 x 7/8"

- machine, pan head slotted, No. 10 NF x 7/8 inch

2шт.

5

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

6

179689A1

LEVER

- transmission gear shift, see Figure 4-10 for clutch cutout harness and switch

1шт.

7

190618A1

BELLOWS

BOOT - transmission gear shift lever

1шт.

8

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW - self-tapping, hex washer head, No. 10 - 16 x 1 inch

4шт.

9

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

- hex, 12 - 1.75 x 55 mm, class 10.9

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

11

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

1шт.

12

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

13

143370A1

SPRING

- return, shift lever

1шт.

14

123842A1

TRANSMISSION

ASSEMBLY - two wheel drive, parts list Figures 6-24, 6-26, 6-30 - 6-38 and 6-42

1шт.

See Figure 6-24 for remanufactured transmission part numbers.

1шт.

15

123843A1

TRANSMISSION

ASSEMBLY - four wheel drive, parts list Figures 6-24 and 6-28 - 6-44

1шт.

See Figure 6-24 for remanufactured transmission part numbers.

1шт.

16

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

12шт.

17

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

12шт.

18

222-3006

FITTING,1 1/2"-12 x 3/4" NPT

ADAPTER - compression, 1 tube O.D. x 3/4 inch PT, used with 121659A1 tube, Ref. 19, if used

1шт.

19

121659A1

TUBE,25.4 mm OD, 268, 153 mm Length

- transmission dipstick, no longer available, order 237948A1 tube and 218-459 adapter, Ref. 38 and 39

1шт.

20

121658A1

DIPSTICK,492mm L

- oil level, transmission

1шт.

21

1995137C1

CONVERTER

- torque, new

1шт.

21

1995137C1R

REMAN-TORQUE CONVERT

Converter - Torque, remanufactured, Component Parts Not Serviced Separately

1шт.

21

1995137C1C

CORE-TORQUE CONVERTR

Return Part Number - Torque Converter Core, Use This Part Number to Return Torque Converter for Credit when using a Remanufactured Assembly

1шт.

22

428-510

BOLT,Hex, 5/16" - 24 x 5/8", Gr 8

- hex, 5/16 NF x 5/8 inch, grade 8

6шт.

23

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

- flat, hardened, special

6шт.

24

A178706

PLATE

- adapter, torque converter to engine flywheel

1шт.

26

626-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 16 mm, class 10.9

6шт.

27

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 40 mm

7шт.

28

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

- flat, 13.5 x 28 x 4 mm, hardened

7шт.

29

184791A1

SUPPORT

BRACKET - mounting, transmission, right-hand

1шт.

30

185338A1

SUPPORT

BRACKET - mounting, transmission, left-hand

1шт.

31

814-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

- hex, 16 - 2.0 x 110 mm

2шт.

32

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- flat, special, 5/8 inch, hardened

6шт.

33

117846A1

INSULATOR BLOCK,16.69mm ID x 64.8mm OD x 84.6mm L

INSULATOR - engine mount, rear

2шт.

34

832-10416

NUT,M16 x 2, Cl 8

NUT, LOCK, M16 x 2, Cl 8

2шт.

35

133947A1

DRIVE SHAFT

SHAFT ASSEMBLY - drive, transmission to rear axle, parts list Figure 6-62

1шт.

36

608-12025

BOLT,Hex, M12 x 25mm, Cl 10.9

- hex, self-locking, 12 - 1.75 x 25 mm, class 10.9

4шт.

37

183175A1

SEAL

- foam, transmission control lever, installed between firewall and flange on four speed shift lever boot, cab models only

1шт.

38

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, 1-5/16-12 flare x 3/4 inch PT

1шт.

39

237948A1

TUBE,25.4 mm OD

- transmission dipstick

1шт.
