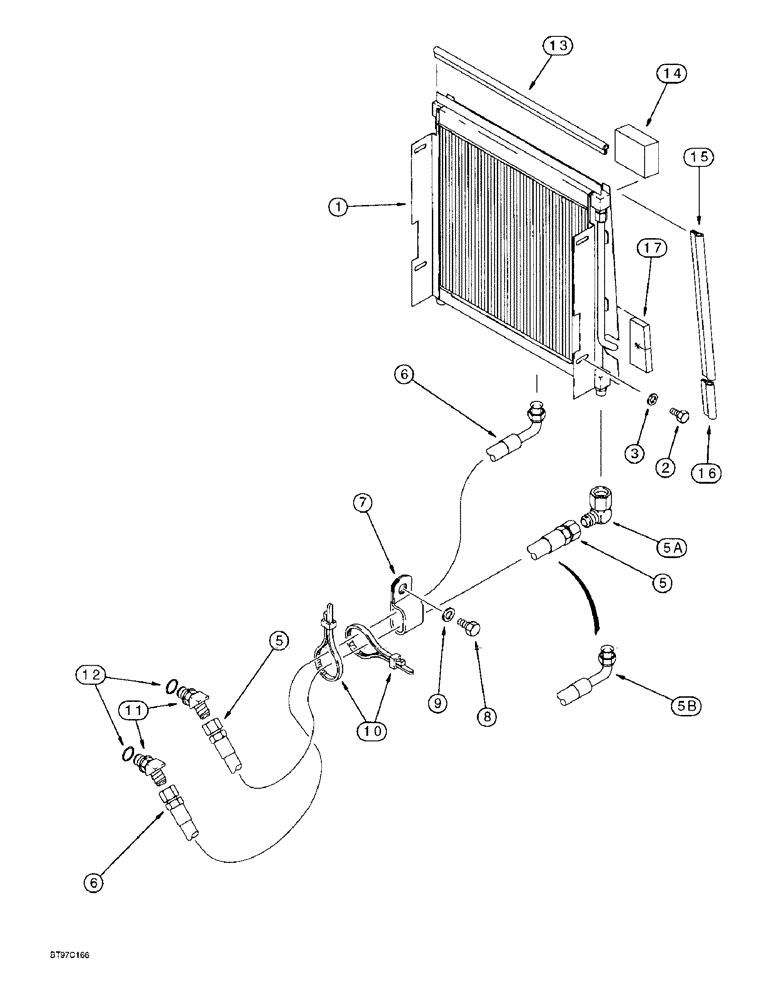

Запчасти Case 590L (6-21A) - TRANSMISSION COOLING SYSTEM, USED WITH 239739A1 HEAVY DUTY RADIATOR ASSY. (SEE P. 2-3B FOR RADIATOR) (06) - POWER TRAIN

1

235811A1

COOLER, OIL

COOLER - hydraulic oil, heavy duty, used with 239739A1 heavy duty radiator on Fig. 2-3A, uses radiator upper mounting bolts, see Fig. 9-7 for hardware and Fig. 8-8 for additional cooler hydraulic routing

1шт.

Parts should service this with the new cooler part no. 291288a1, and fitting 218-5062.

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

5

243804A1

HOSE

- 1225 mm (48-1/4 inch) long, transmission to cooler inlet, if used

1шт.

5a

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel, used with Ref. 5 hose, if used

1шт.

5b

254154A1

HOSE

- 1240 mm (48-7/8 inch) long, transmission to cooler inlet, if used

1шт.

6

243805A1

HOSE

- 1525 mm (60 inch) long, cooler, Serial Range: outlet-transmission

1шт.

7

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- P-type, double, 1 inch

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

11

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 7/8-14 inch flare x adj. O-ring bosss, Incl. Ref 12

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

233972A1

SEAL

- 564 mm (22-7/32 inch) long, horizontal, Serial Range: cooler-wrapper

1шт.

14

234719A1

SEAL

SEAL - 70 x 100 x 32 mm, upper corner

2шт.

15

233970A1

SEAL

- 472 mm (18-5/8 inch) long, vertical, Serial Range: cooler-wrapper

2шт.

16

233971A1

SEAL

- 103 mm (4-1/16 inch) long, lower corner

2шт.

17

234499A1

SEAL

- 45 x 120 x 15 mm, cooler

2шт.
