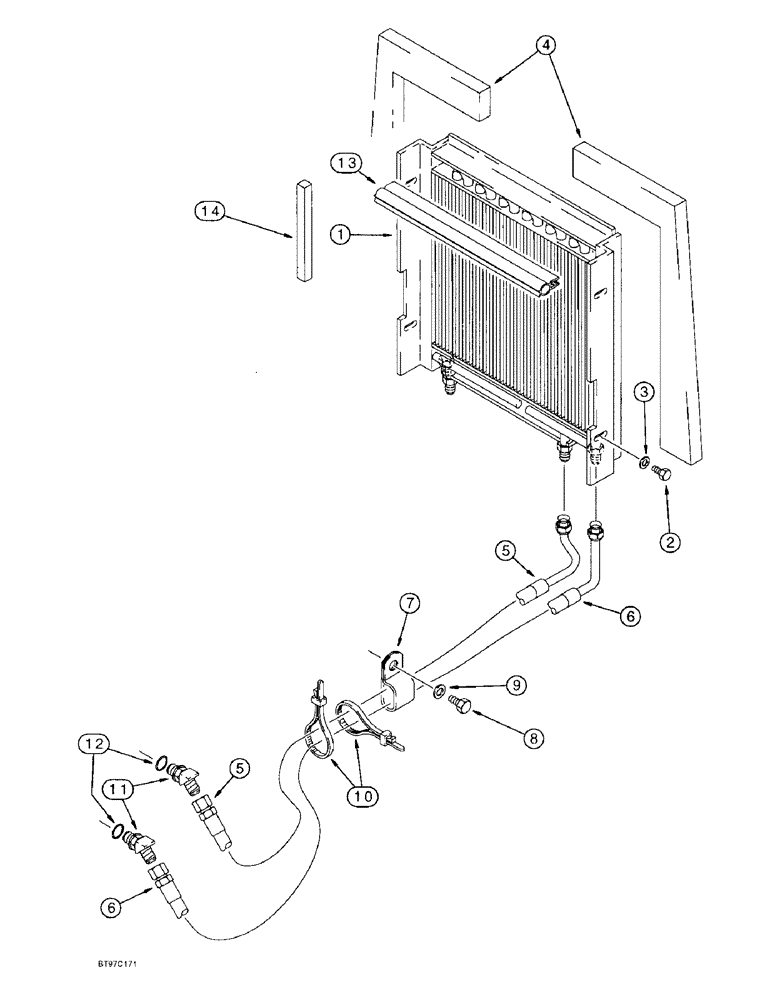

Запчасти Case 590L (6-20) - TRANSMISSION COOLING SYSTEM, USED WITH 129264A1 OR 234876A1 RADIATOR ASSY. (SEE P. 2-3 FOR RADIATOR) (06) - POWER TRAIN

1

231280A1

COOLER, OIL

COOLER - hydraulic oil, used with 129264A1 or 234876A1 radiator on Fig. 2-2, uses radiator upper mounting bolts, see Fig. 9-70 for hardware and Fig. 8-8 for additional cooler hydraulic routing, Replaces 139783A1 cooler, for service order 277114A1 cooler

1шт.

1a

277114A1

COOLER, OIL

COOLER - hydraulic oil, not used in production, for service of 231280A1 cooler, if used, not shown

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

4

233409A1

FOAM INSULATION

BAFFLE - foam

2шт.

237708A1

SEALANT

ANT - RTV clear, 10.3 ounce tube

1шт.

5

188829A1

HOSE

- 1215 mm (47-7/8 inch) long, transmission to cooler inlet

1шт.

6

188830A1

HOSE

- 1525 mm (60 inch) long, cooler, Serial Range: outlet-transmission

1шт.

7

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- P-type, double, 1 inch

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

11

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 7/8-14 inch flare x adj. O-ring bosss, Incl. Ref 12

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

183735A1

OIL SEAL

- radiator to oil cooler

1шт.

14

233311A1

RUBBER STRIP,20mm W x 270mm L x 20mm Thk

- adhesive back, 20 x 20 x 270 mm long, radiator to oil cooler

2шт.
