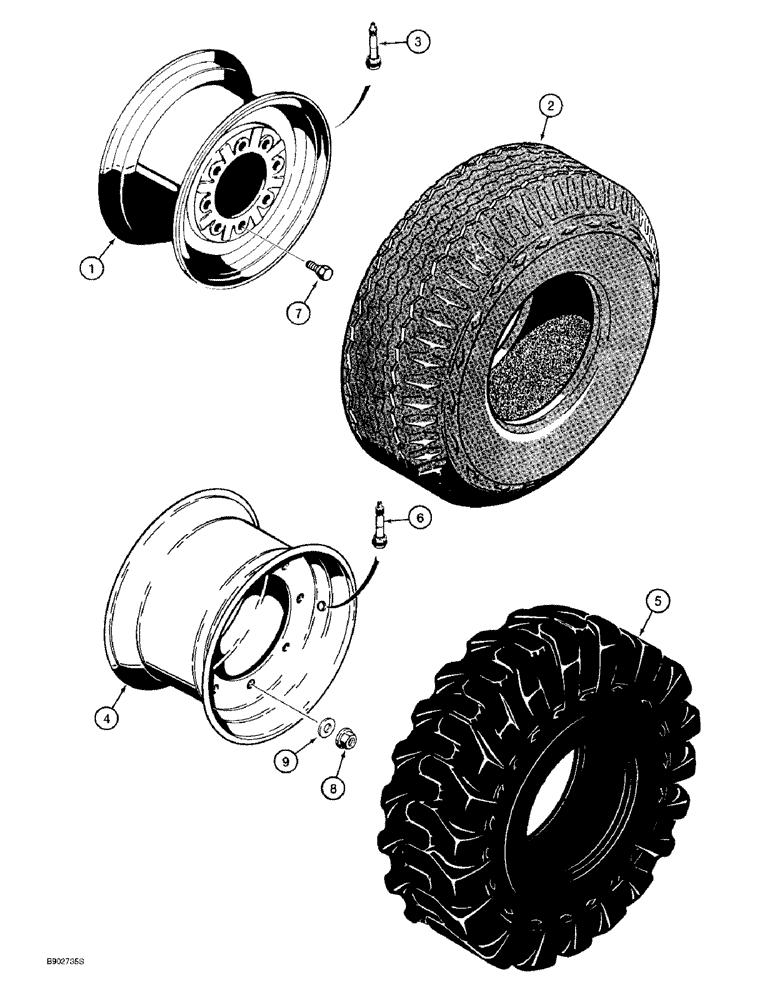

Запчасти Case 590L (5-18) - FRONT WHEELS AND TIRES, FOR 14 X 17.5 - 16 PLY TIRES, TWO WHEEL DRIVE MODELS (05) - STEERING

1

133124A1

WHEEL

- rim, 16.1 X W11C, use on models with 450-pound front counterweight or models without counterweight

2шт.

2

REF

INSTRUCTION

TIRE - front, purchase locally

2шт.

REFS. #2, #5: CONSULT YOUR PARTS BUYER'S GUIDE FOR TIRE PROGRAMS CURRENTLY BEING OFFERED.

1шт.

3

A38261

VALVE

- stem, tire inflation

2шт.

1

247104A1

WHEEL

- rim, 16.1 X W11C, used on models with 900-pound front counterweight, two-wheel drive models

2шт.

2

REF

INSTRUCTION

TIRE - front, purchase locally, two wheel drive models

2шт.

3

A38261

VALVE

- stem, tire inflation, two wheel drive models

2шт.

4

132952A1

WHEEL

- rim, 17.5 X 10.50, 8-hole pattern, for 14 x 17.5 - 10 PR tires, four wheel drive models

2шт.

5

REF

INSTRUCTION

TIRE - front, purchase locally, for 14 x 17.5 - 10 PR tires, four wheel drive models

2шт.

REFS. #2, #5: CONSULT YOUR PARTS BUYER'S GUIDE FOR TIRE PROGRAMS CURRENTLY BEING OFFERED.

1шт.

6

A38261

VALVE

- stem, tire inflation, for 14 x 17.5 - 10 PR tires, four wheel drive models

2шт.

7

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Retaining, 2WD models

16шт.

8

825-11418

NUT,M18 x 1.5, Cl 8

- hex, 18 mm - 1.5, special, wheel nuts, four wheel drive models

16шт.

9

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardenedwheel nuts, four wheel drive models

16шт.
