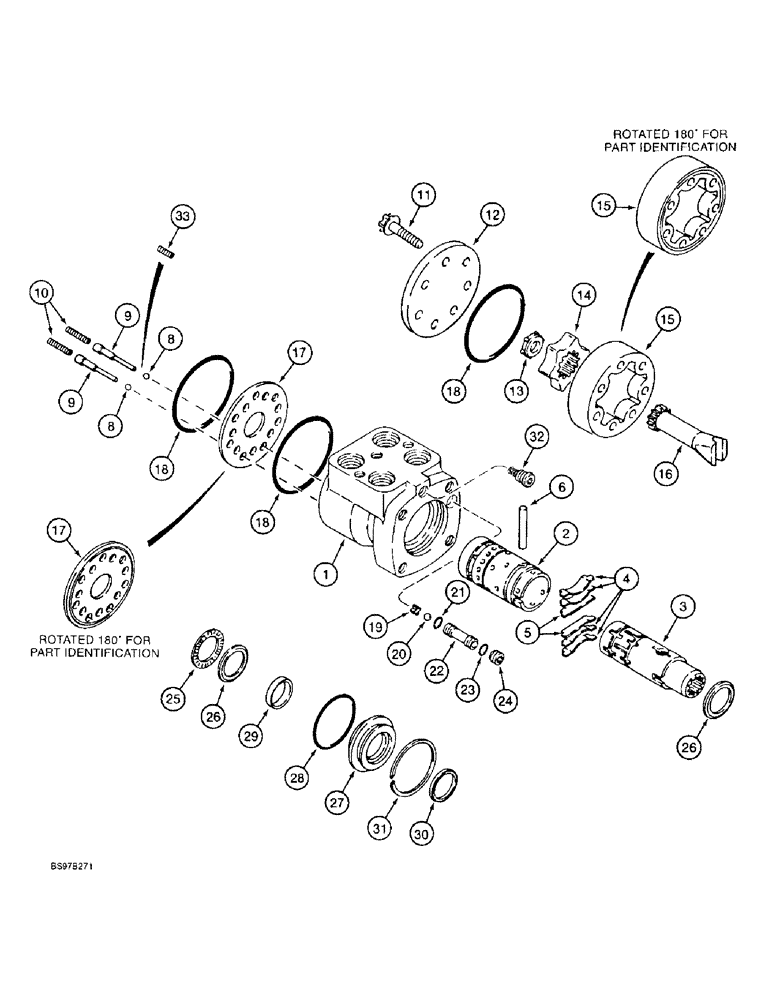

Запчасти Case 590L (5-10) - STEERING CONTROL VALVE (05) - STEERING

139599A2

PUMP, HYDRAULIC

VALVE ASSEMBLY - steering control, Includes: Ref. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - control valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

N14250

KIT

- centering spring, Includes: Ref. 4

1шт.

4

L30889

SPRING

- spool, centering, 6 in kit, order N14250 kit

4шт.

5

NSS

NOT SOLD SEPARAT

SPACER - spring

2шт.

6

L30888

PIN

- roll, centering

1шт.

8

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24, anticavitation

2шт.

9

136494A1

PLUG

RETAINER - spring, anticavitation

2шт.

10

N14763

SPRING

- anticavitation

2шт.

11

143717A1

SCREW,Torx Hd, Flg, 5/16" - 24 x 2"

BOLT - 12 point flange, special, 5/16 NC x 2 inch

7шт.

12

135867A1

CAP

- end, without O-ring groove

1шт.

13

143723A1

SPACER

- gerotor, drive shaft

1шт.

143721A1

GEAR-SET

GEROTOR - pump, control valve, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

ROTOR - control valve

1шт.

15

NSS

NOT SOLD SEPARAT

STATOR - control valve

1шт.

16

L30878

DRIVE SHAFT

SHAFT - drive, gerotor, steering control valve

1шт.

17

135869A1

PLATE

- spacer, with O-ring groove

1шт.

18

238-5040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

-040, 70 Duro, 2.864" ID x .070" Thk, Cover and housing

3шт.

Part of Low Torque Seal Kit, P/N 1343658C3

1шт.

19

L35368

RETAINER

- check ball

1шт.

20

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 24, check

1шт.

21

L30893

O-RING,1/16" Thk x 5/16" ID

7/16 x 5/16 x 1/16 in, seat, inner

1шт.

Part of Low Torque Seal Kit, P/N 1343658C3

1шт.

22

D82806

VALVE SEAT

SEAT - ball, check

1шт.

23

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Seat, outer

1шт.

Part of Low Torque Seal Kit, P/N 1343658C3

1шт.

24

D82805

SET SCREW

SCREW - set, hex socket, special

1шт.

25

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle, Spool

1шт.

26

D82804

RACE

- thrust, bearing, bearing

2шт.

27

S110170

BUSHING

GLAND - seal, spool, seal

1шт.

28

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

Seal retainer -225, 70 Duro, 1.859" ID x .139" Thk

1шт.

Part of Low Torque Seal Kit, P/N 1343658C3

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - spool, inner

1шт.

Part of Low Torque Seal Kit, P/N 1343658C3

1шт.

30

697494R91

OIL SEAL

SEAL - 1 inch ID, spool, outer

1шт.

Part of Low Torque Seal Kit, P/N 1343658C3

1шт.

31

S110169

WASHER

RING - retaining, seal

1шт.

32

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - relief, factory preset, do not remove

1шт.

33

196087A1

SPRING

- detent, check ball

2шт.

1343658C3

SEAL KIT

KIT - seal, low torque, Include: Ref. 18, 21, 23, 28, 29, and 30

1шт.
