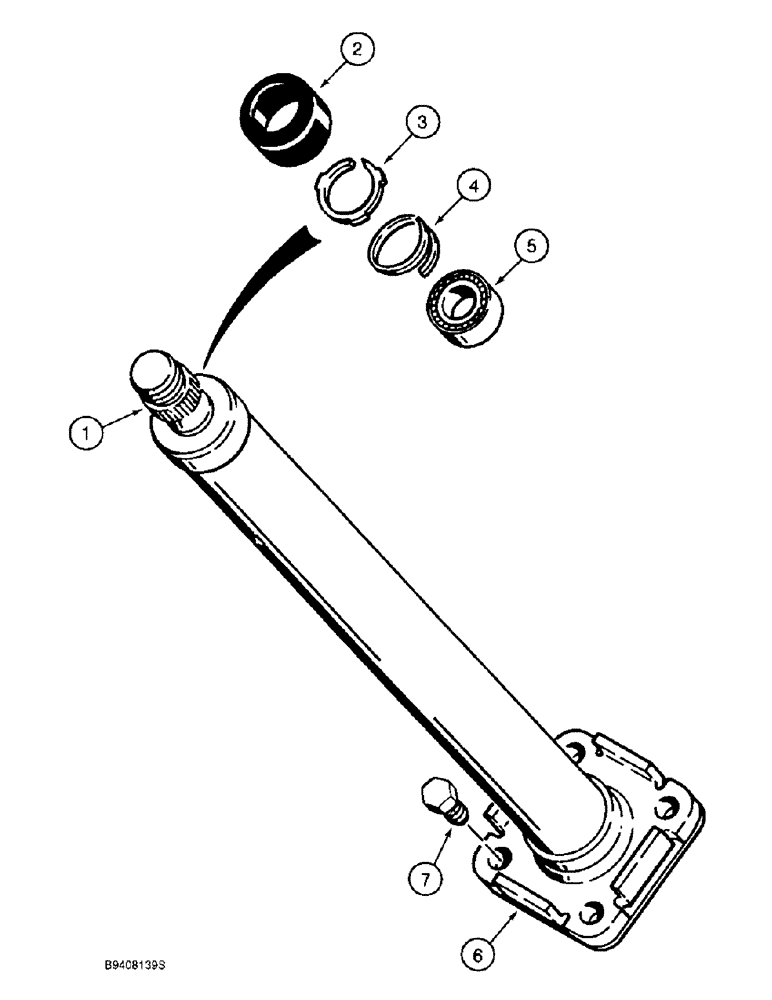

Запчасти Case 590L (5-08) - STEERING COLUMN (05) - STEERING

142930A1

STEERING COLUMN

COLUMN ASSEMBLY - steering, Eaton No. 204-1162-006, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

COLUMN - steering shaft

1шт.

2

S115351

CAP

- shaft

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

4

102-1387

SNAP RING,#87, Ext, Spiral

RING - external spiral retaining, No. 87, bearing

1шт.

5

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

- roller, steering shaft

1шт.

6

NSS

NOT SOLD SEPARAT

FLANGE - tube

1шт.

7

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.
