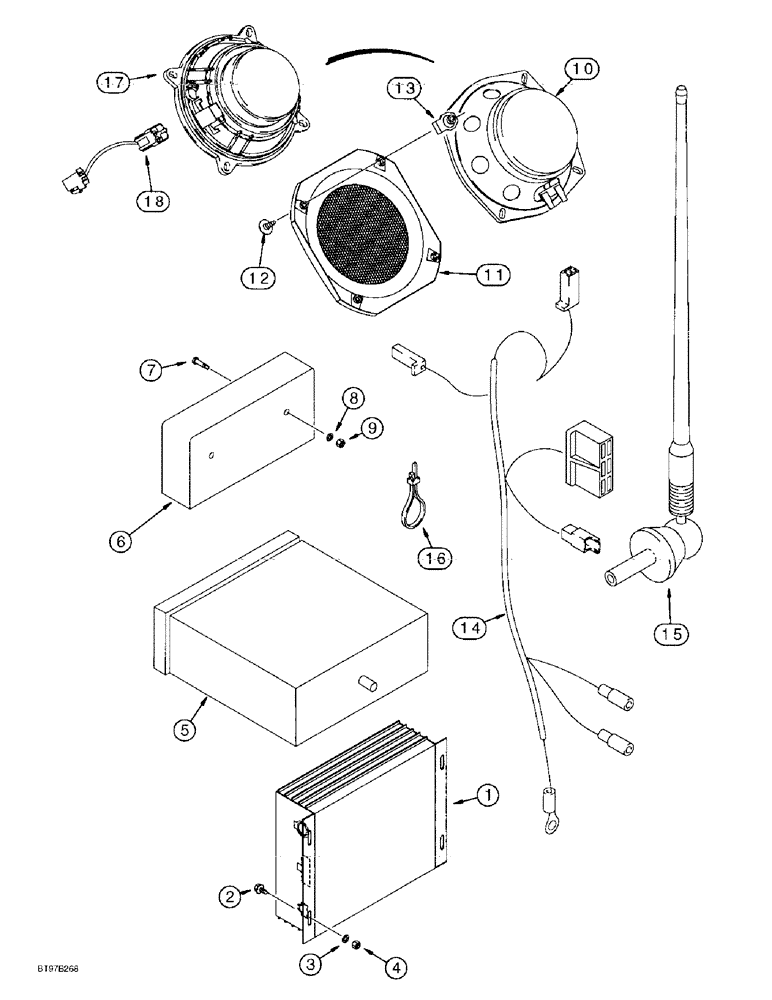

Запчасти Case 590L (4-44) - RADIO, ANTENNA AND TAPE PLAYER (04) - ELECTRICAL SYSTEMS

1

186083A1

RADIO - 12 volt, stereo tuner/amplifier

1шт.

See Ship Direct Radio Program for current part numbers. Radio for all "L" series loader backhoes is ZAE900LKT.

1шт.

2

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

- heavy hex flange, 6 - 1.0 x 20 mm

4шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

4

832-10406

NUT,M6 x 1, Cl 8

LOCK, M6 x 1, Cl 8

4шт.

5

186084A1

RADIO

STEREO - cassette tape player

1шт.

See Ship Direct Radio Program for current part numbers. Radio for all "L" series loader backhoes is ZAE900LKT.

1шт.

6

186082A1

REMOTE CONTROL

CONTROL - remote

1шт.

See Ship Direct Radio Program for current part numbers. Radio for all "L" series loader backhoes is ZAE900LKT.

1шт.

7

142-101

SCREW - machine, oval Phillips, No. 6 NC x 7/8 inch

2шт.

8

495-31016

WASHER,#6

2шт.

9

225-14106

NUT,#6-32

2шт.

10

141924A1

SPEAKER

- radio, no longer available, order 237114A1 speaker kit

2шт.

11

187281A1

COVER

GRILLE - speaker cover

2шт.

12

260-16312

SELF-TAP SCREW,Pan HD, M6 x 20mm

SCREW - self-tapping, pan Phillips, No. 6-20 x 3/4 inch

8шт.

13

125749A1

SPRING NUT

- U-type, No. 6 NC

8шт.

14

186488A1

HARNESS

- radio

1шт.

See Ship Direct Radio Program for current part numbers. Radio for all "L" series loader backhoes is ZAE900LKT.

1шт.

15

186085A1

ANTENNA

- radio, used in production, for service order ZAE1181039

1шт.

15

ZAE1181039

ANTENNA

- radio, service replacement

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

12шт.

237114A1

SPEAKER

KIT - speaker, services one speaker, Includes: Ref. 17 and 18

1шт.

17

182721A2

SPEAKER

- radio, 5-1/4 inch, round, Replaces 182721A1

1шт.

18

195551A1

HARNESS

- adapter, speakers to headliner harness

1шт.
