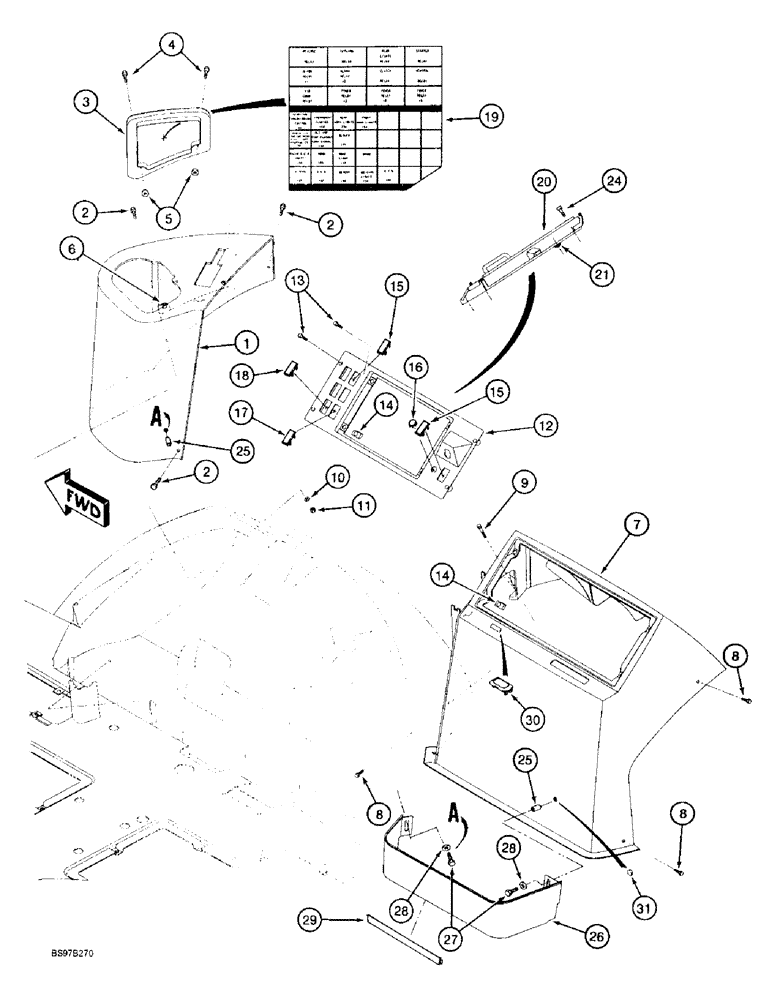

Запчасти Case 590L (4-24) - SIDE INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS

1

119270A3

COVER

- loader control, with hole for tool tray, also order (1) 181385A1 insert, Ref. 25, if used, replaces 119270A1 and 119270A2 cover

1шт.

1

245891A2

COVER

- loader control, without hole for tool tray, if used, Replaces 245891A1

1шт.

2

555-2

BOLT,Hvy Hex, M6 x 20, Cl 8.8

- heavy hex flange, 6 - 1.0 x 20 mm

3шт.

3

120032A1

COVER

PANEL - fuse access

1шт.

4

182276A1

SCREW

- special, No. 10 NC x 3/4 inch

2шт.

5

127009A1

CLIP,ELECTRICAL

RETAINER - screw, push-on

2шт.

6

131-861

SPRING NUT,Tinn, U, #10-24

2шт.

7

119269A2

PANEL, INSTRUMENTS

PANEL - instrument, side, with hole for tool tray and without hole for ride control switch, no longer available, order 119269A3 panel and (1) 181385A1 insert, Ref. 25, Replaces 119269A1

1шт.

7

119269A3

PANEL, INSTRUMENTS

PANEL - instrument, side, with hole for tool tray and with hole for ride control switch, if used

1шт.

7

245890A1

CONSOLE

PANEL - instrument, side, without hole for tool tray and with hole for ride control switch, if used

1шт.

8

555-2

BOLT,Hvy Hex, M6 x 20, Cl 8.8

- heavy hex flange, 6 - 1.0 x 20 mm

4шт.

9

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

- heavy hex flange, 6 - 1.0 x 25 mm

1шт.

10

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

11

832-10406

NUT,M6 x 1, Cl 8

LOCK, M6 x 1, Cl 8

1шт.

12

123615A2

LARGE PLATE

PANEL - instrument cluster mounting, Replaces 123615A1

1шт.

13

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

8шт.

14

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

- J-type, No. 10 NC

8шт.

15

86000535

PLUG,1.427" x .62", Plastic

Accessory option, If used 1.427" x .62", Plastic

2шт.

16

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8 inch, nylon, used in place of cold start button, if used

1шт.

17

86000535

PLUG,1.427" x .62", Plastic

Used in place of rotating beacon switch, If used 1.427" x .62", Plastic

1шт.

18

86000535

PLUG,1.427" x .62", Plastic

Used in place of 4WD switch, If used 1.427" x .62", Plastic

1шт.

19

REF

INSTRUCTION

DECAL - fuses and relays, see page 9-141, Ref 4 for decal

1шт.

129586A1

COVER

ASSEMBLY - instrument cluster panel, anti-vandalism, uses existing hardware, ROPS canopy models, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - instrument cluster panel

1шт.

21

F22426

STOP

BUMPER - rubber

3шт.

24

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

4шт.

25

181385A1

RIVET

INSERT - threaded, 8 mm - 1.25, loader control cover and side instrument panel, if used

2шт.

26

186367A1

TRAY

- tool, interior, mounts to loader control cover and side instrument panel, if used

1шт.

27

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, Full Thd, 8 - 1.25 x 30 mm, If used

2шт.

28

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, If used

2шт.

29

D60180

STRIP

TRIM - edge, 368 mm (14-1/2 inch) long, cut from F42827 bulk trim, used only on ROPS canopy units without floormats, if used

1шт.

30

86000535

PLUG,1.427" x .62", Plastic

Switch hole, Models without ride control, If used, See Figure 8-80 for switch used on models with ride control 1.427" x .62", Plastic

1шт.

31

1340319C1

PLUG

- flat face, pry out, 7/16 inch diameter, models without tool tray, if used, Replaces 353-425

2шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 2946 mm (116 inch) long

1шт.
