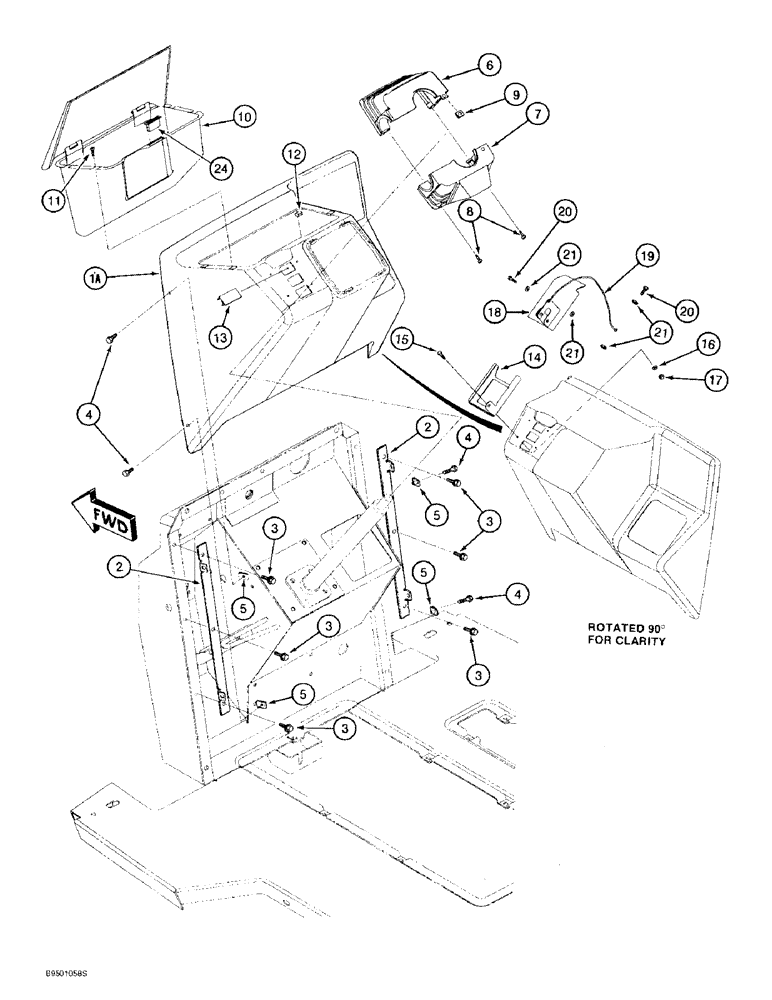

Запчасти Case 590L (4-22) - FRONT INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS

1

119266A1

CONSOLE

PANEL - instrument, front, cab models, Ref. 1A shown

1шт.

1a

181316A1

CONSOLE

PANEL - instrument, front, ROPS canopy models, with four bolt holes for anti-vandalism cover

1шт.

2

137851A1

PLATE

- bar, front console mounting to firewall, no longer included in cab frame

2шт.

3

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

10шт.

4

555-2

BOLT,Hvy Hex, M6 x 20, Cl 8.8

- heavy hex flange, 6 - 1.0 x 20 mm, special, instrument panel to firewall

4шт.

5

833-40406

NUT,M6, U

- U-type, 6 mm - 1.0

4шт.

6

119267A2

COVER

- upper, steering column, Replaces 119267A1

1шт.

7

119268A1

COVER

- lower, steering column

1шт.

8

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

3шт.

9

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

10

177164A1

BOX

- storage compartment (service with 122641A1 box and 120029A1 cover, not shown)

1шт.

11

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

12

176857A1

SPRING NUT

- J-type, No. 10

4шт.

13

86000535

PLUG,1.427" x .62", Plastic

Upper, used in place of dome lamp switch, If used 1.427" x .62", Plastic

1шт.

14

136450A1

SUPPORT

BRACKET - front instrument panel, anti-vandalism, ROPS canopy models

1шт.

15

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

16

495-31022

WASHER,#10

4шт.

17

225-14110

NUT,#10-24

4шт.

18

136454A1

COVER

- anti-vandalism, front instrument panel, ROPS canopy models

1шт.

19

D126821

CABLE

CORD - manual retaining, anti-vandalism cover

1шт.

20

151-522

RIVET,Pop, 3/16" x .575"

- break mandrel, 3/16 x 9/16 inch

2шт.

21

495-31022

WASHER,#10

4шт.

24

D127335

CATCH

Retainer, Magnetic, Storage compartment

1шт.
