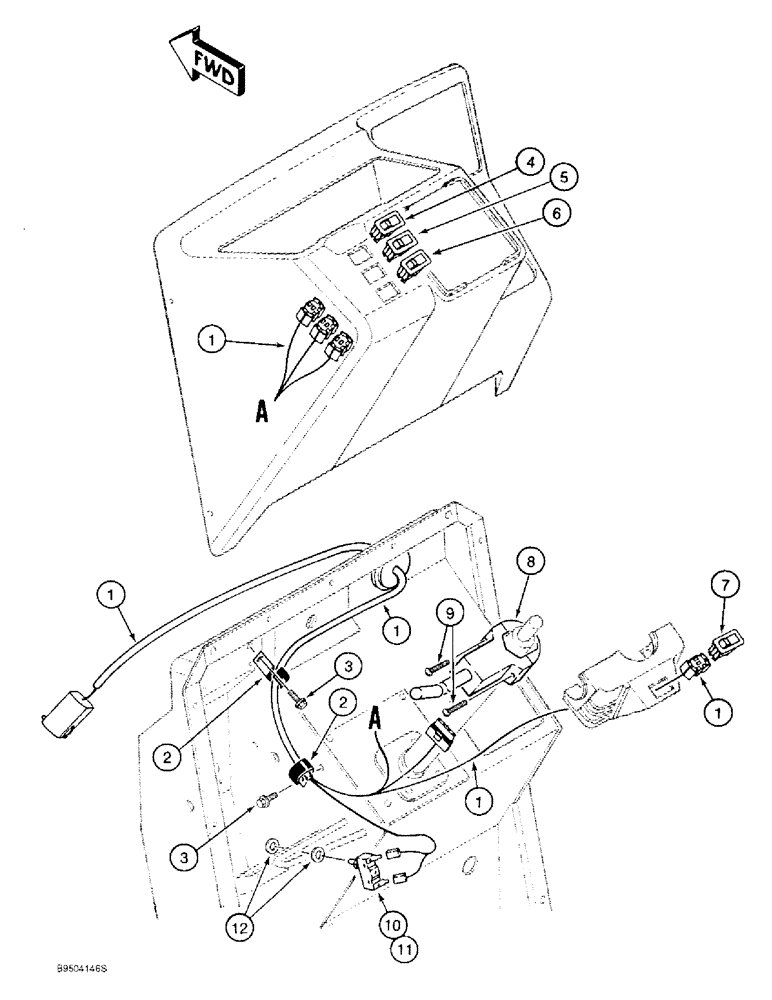

Запчасти Case 590L (4-16) - FRONT CONSOLE WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

132105A1

HARNESS

- front console

1шт.

2

D147383

CLIP,5/8" J

CLAMP - J-type, Serial Range: harness-firewall

2шт.

3

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

BOLT - hex flange, self-tapping, 8 - 1.25 x 20 mm

2шт.

4

123538A1

LIGHT SWITCH

SWITCH - rocker, dome lamp, if used, see Figure 4-22 for plug used in place of switch

1шт.

5

122736A1

FLASHER SWITCH

SWITCH - rocker, hazard, flasher lamps

1шт.

6

131691A1

ROCKER SWITCH

- rocker, turn signal

1шт.

7

122740A1

ROCKER SWITCH

- rocker, horn

1шт.

8

133790A1

IGNITION SWITCH

LEVER - shuttle shift, transmission, forward/neutral/reverse switch, individual internal component parts are not serviced separately, no longer available, order 278327A1 lever assembly, Includes boot

1шт.

276588A1

BOOT

- rubber, handle, shuttle shift lever, not shown

1шт.

8a

278327A1

LEVER ASSY.

LEVER ASSEMBLY - shuttle shift, transmission, forward/neutral/reverse switch, individual internal component parts are not serviced separately, not shown, Includes lever, collar and boot

1шт.

278328A1

SWITCH

LEVER - shuttle shift, transmission, not shown

1шт.

This is just the LEVER, P/N 278327A1 includes the lever, collar and screws.

1шт.

236521A1

HALF-COLLAR

COLLAR - shuttle lever, includes clamp and (2) nuts, not shown

1шт.

279520A1

DUST CAP

BOOT - rubber, handle, shuttle shift lever, not shown

1шт.

9

840-1535

SCREW,Pan, M5 x 35mm, Cl 4.8

2шт.

10

D148108

SWITCH

- rocker, brake lamp

1шт.

11

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL - Male

2шт.

12

495-81153

WASHER,.469" x 3/4" x .030"

- flat, 15/32 x 3/4 x 1/32 inch

2шт.
