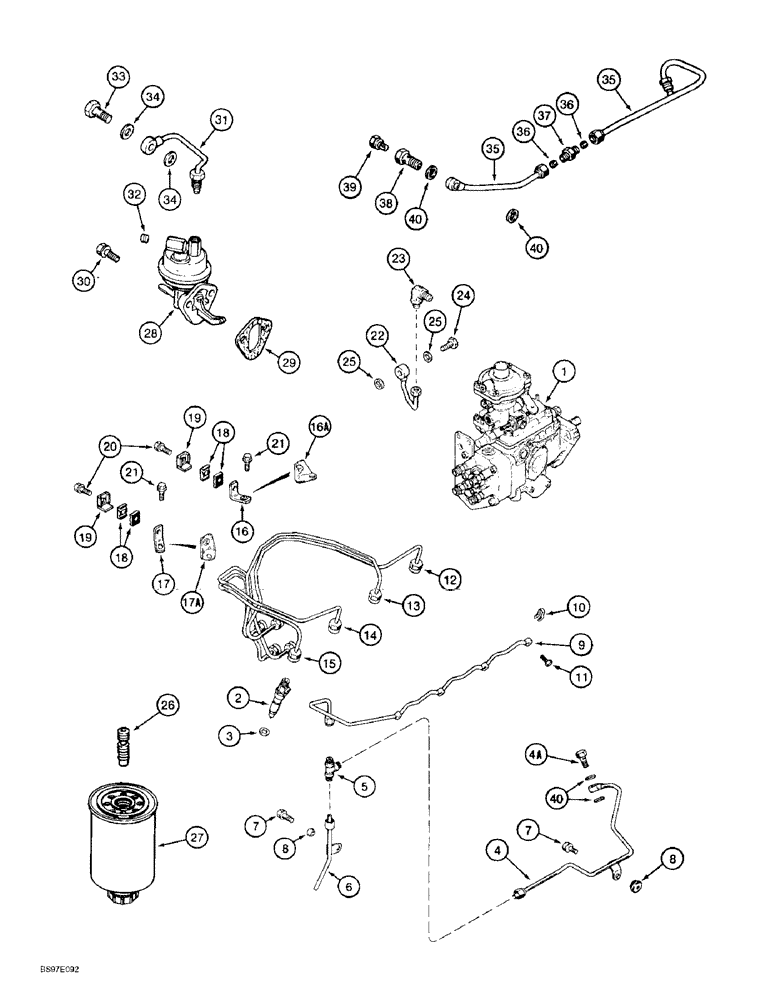

Запчасти Case 590L (3-08) - FUEL INJECTION SYSTEM AND FUEL FILTER, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J917526

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, parts list Figure 3-10

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, see Figure 3-12

4шт.

3

J906659

SEAL

- injector nozzle, 7 mm injector tip

4шт.

4

J905699

FUEL TUBE,4.76 mm OD

TUBE - fuel return, injection pump to tee

1шт.

4a

J905465

BANJO BOLT

BOLT - banjo, overflow

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Fuel drain tubes (Remove and discard nuts and sleeves before assembly)

1шт.

6

J905692

FUEL TUBE

TUBE - fuel return, tee to fuel tank

2шт.

7

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8-1.25 x 20 mm, Fuel tube brace through tappet cover to cylinder block

2шт.

8

J928759

SEALING WASHER

- cover bolt, Replaces J900267

2шт.

9

J909695

FUEL TUBE

TUBE - manifold, fuel drain, tee to fuel tank return

1шт.

10

J903380

SEAL

- connector

4шт.

11

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special, Fuel drain manifold M6 x 1 x 14.3

4шт.

12

J903480

FUEL TUBE,21 mm ID x 64 mm OD

TUBE - fuel injector, No. 1 cylinder

1шт.

13

J903481

FUEL TUBE,21 mm ID x 64 mm OD

TUBE - fuel injector, No. 2 cylinder

1шт.

14

J903482

FUEL TUBE,21 mm ID x 64 mm OD

TUBE - fuel injector, No. 3 cylinder

1шт.

15

J903483

FUEL TUBE,21 mm ID x 64 mm OD

TUBE - fuel injector, No. 4 cylinder

1шт.

16

J919294

SUPPORT

BRACKET - fuel tube, no longer used, order Ref. 16A

1шт.

16a

J930689

SUPPORT

BRACKET - fuel tube, Replaces J919294

1шт.

17

J919292

SUPPORT

BRACKET - fuel tube, no longer used, order Ref. 17A

1шт.

17a

J930688

SUPPORT

BRACKET - fuel tube, Replaces J919292

1шт.

18

J917746

CLAMP

- fuel tube

4шт.

19

J904711

SUPPORT

BRACKET - fuel tube

2шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

21

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Brackets to cylinder head Hex Flg Hd, M8 x 1.25 x 25

2шт.

22

J910004

FUEL TUBE,4.76 mm OD x 101.9 mm L

TUBE - injection pump aneroid

1шт.

23

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

- 90 degree, compression, 3/16 tube O.D. x 1/8 inch PT, Replaces J910265

1шт.

24

J924724

BANJO BOLT

- banjo, special, aneroid tube

1шт.

25

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- sealing

2шт.

26

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter, Replaces J903845

1шт.

27

J931062

FILTER

- fuel, Replaces J843760

1шт.

28

J928143

PUMP

- lift, fuel, Replaces J904374

1шт.

29

J931348

GASKET

- mounting, fuel transfer pump, Replaces J914304 and J923054

1шт.

30

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8-1.25 x 20 mm, Fuel lift pump to block

2шт.

31

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

TUBE ASSEMBLY - fuel supply, fuel lift pump to fuel filter inlet in cylinder head

1шт.

32

217-459

DRAIN PLUG,Sq Soc, 1/4" - 18 NPTF

PLUG - hex socket headless, 1/4 inch PT, fuel inlet

1шт.

33

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm, fuel filter to lift pump tube

1шт.

34

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm, banjo connectors

2шт.

35

J918640

FUEL TUBE

TUBE ASSEMBLY - fuel supply, two-piece, Includes: Ref. 36 and 37

1шт.

36

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

2шт.

37

222-4

FITTING,9/16"-24, Flex Tube

ADAPTER - compression, 5/16 inch tube O.D.

1шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special, Includes: Ref. 38 and 39

1шт.

38

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex, special

1шт.

39

NSS

NOT SOLD SEPARAT

SCREW - hex, special, vent

1шт.

40

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

4шт.
