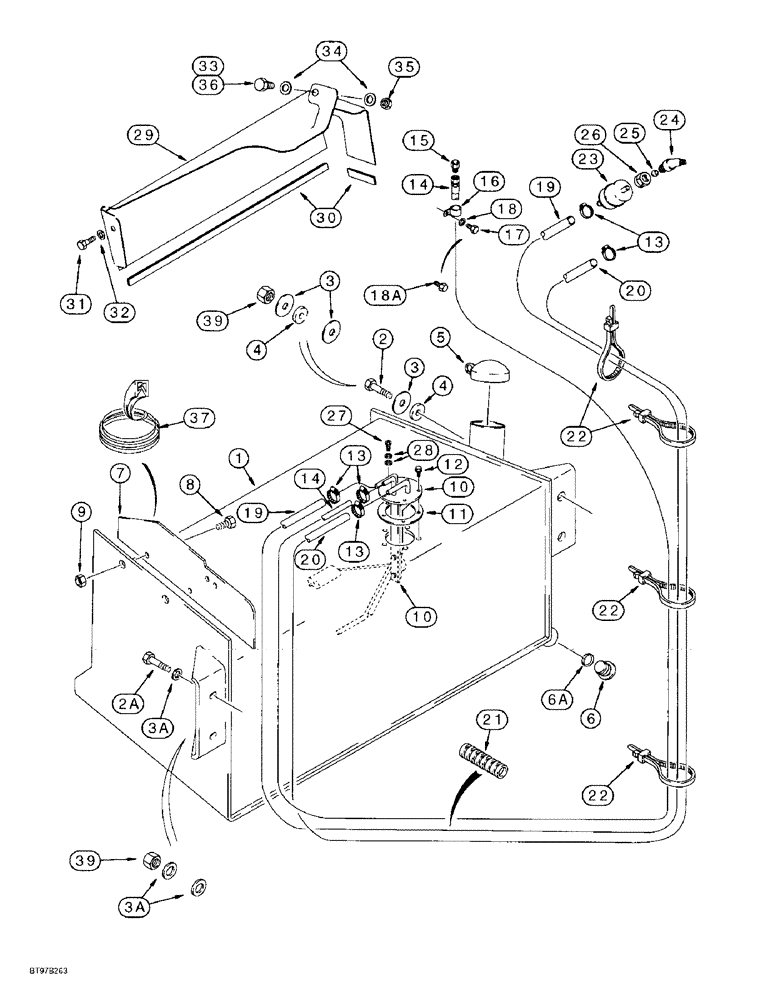

Запчасти Case 590L (3-02) - FUEL RESERVOIR, FUEL LEVEL SENSOR AND LEFT-HAND MUD GUARD (03) - FUEL SYSTEM

1

133504A1

FUEL TANK

TANK - fuel reservoir, includes left-hand steps, mounts to left-hand side of chassis

1шт.

2

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

- hex, full threads, 20-2.5 x 40 mm, class 10.9, if used

2шт.

See Figure 9-66 for studs used on some chassis.

1шт.

2a

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 30 mm, class 10.9, if used

2шт.

See Figure 9-66 for studs used on some chassis.

1шт.

3

185646A1

WASHER

- flat, hardened, special, 21 x 60 x 4 mm thick

2-4шт.

3a

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

2-4шт.

4

185926A1

SPACER,21mm x 40mm x 6.6mm Th

- bushing, left-hand side of tank

2шт.

5

130049A1

FILLER CAP

CAP - fuel tank, non-vented

1шт.

6

86625138

PLUG,7/18" - 14

Drain, Includes Ref. 6A Hex Soc, 7/8"-14 ORB

1шт.

6a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

141405A1

GUARD

- mud

1шт.

8

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Replaces 614-10025, 25 mm long bolt used on some models Hex, M10 x 20, 8.8, Full Thd

2шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

10

186881A1

FUEL GAUGE

SENSOR - fuel level

1шт.

11

188311A2

GASKET,2.38mm Thk

- fuel sensor, Replaces 188311A1

1шт.

12

D75465

SCREW,#10 - 32 x 5/8"

- self-tapping, hex washer head, special, No. 10 NF x 5/8 inch

4шт.

13

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

5шт.

14

130046A1

HOSE

- 1500 mm (59 inch) long, vent

1шт.

15

130047A1

BREATHER ASSY.

VENT - fuel, 1/4 inch PTF short

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

1шт.

17

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

No Longer Used, Order 121856A1 Bolt, Ref. 18A Hex, M10 x 25, 8.8, Full Thd

1шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm, Used with Ref 17 bolt

1шт.

18a

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT - hex washer, special, 10 - 1.5 x 30 mm

1шт.

19

114316A1

FUEL HOSE,10.00 mm ID x 1585.00 mm, SAE 30R6

Fuel supply 10.00 mm ID x 1585.00 mm, SAE 30R6

1шт.

20

114317A1

FUEL HOSE,6.00 mm ID x 1585.00 mm, SAE 30R6

Cut from 427683C2 bulk hose, Fuel return, Attaches to injector return line on engine 6.00 mm ID x 1585.00 mm, SAE 30R6

1шт.

21

130048A1

PROTECTOR

SLEEVE - 203 mm (8 inch) long, fuel line hose guard

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

D145357

FILTER

- fuel, in-line

1шт.

222-95

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

- 45 degree, compression, 3/8 tube O.D. x 1/4 inch PT, to engine fuel pump, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

25

222-104

SLEEVE,3/8" Tube

- 3/8 inch tube O.D.

1шт.

26

222-114

NUT,5/8"-24

NUT - hex, 3/8 tube O.D. x 5/8-24 inch

1шт.

27

490-11010

SCREW,Cross Pan Hd, #10-32 x 5/8"

- machine, pan Phillips, No. 10 NF x 5/8 inch, fuel sensor ground

1шт.

28

D83885

WASHER

- flat, copper, special

2шт.

29

189602A1

COVER

- left-hand loader lift frame tubing, mounted above fuel reservoir, models without clam bucket

1шт.

29a

188009A1

COVER

- left-hand loader lift frame tubing, mounted above fuel reservoir, models with clam bucket, not shown

1шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

- bulk, 6 (1/4) x 13 (1/2) x 15240 mm (600 inch) long, sold by the foot

1шт.

A165860

TRIM

- edge, bulk, 696 mm (27-3/8 inch) long

1шт.

30

191046A1

ORNAMENTAL STRIP

TRIM - edge, 650 mm (25-19/32 inch) long, cut from A165860 bulk trim

1шт.

Apply 3 inch, 75 mm, of trim to front lower edge and 22-7/16 inch, 570 mm, of trim to outside lower edge of cover.

1шт.

31

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

1шт.

32

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

33

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

189602A1 cover, no longer used, order 814-10040 bolt, Ref. 38 Hex, M10 x 20, 8.8, Full Thd

1шт.

34

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1-2шт.

35

829-1410

NUT,M10 x 1.5, Cl 10.9

189602A1 Cover M10, Cl 10

1шт.

36

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm, 188009A1 Cover, No longer used, Order 814-10040 bolt, Ref. 38

1шт.

37

D40442

MOLDING

TRIM - edge, 305 mm (12 inch) long, cut from F42827 bulk trim

1шт.

38

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm, not shown

1шт.

39

829-1420

NUT,M20, Cl 10

Used on models with studs on chassis, See Figure 9-64, if used M20, Cl 10

4шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 2946 mm (116 inch) long

1шт.
