Запчасти Case 590L (2-40) - CRANKSHAFT, 4T-390 ENGINE (02) - ENGINE

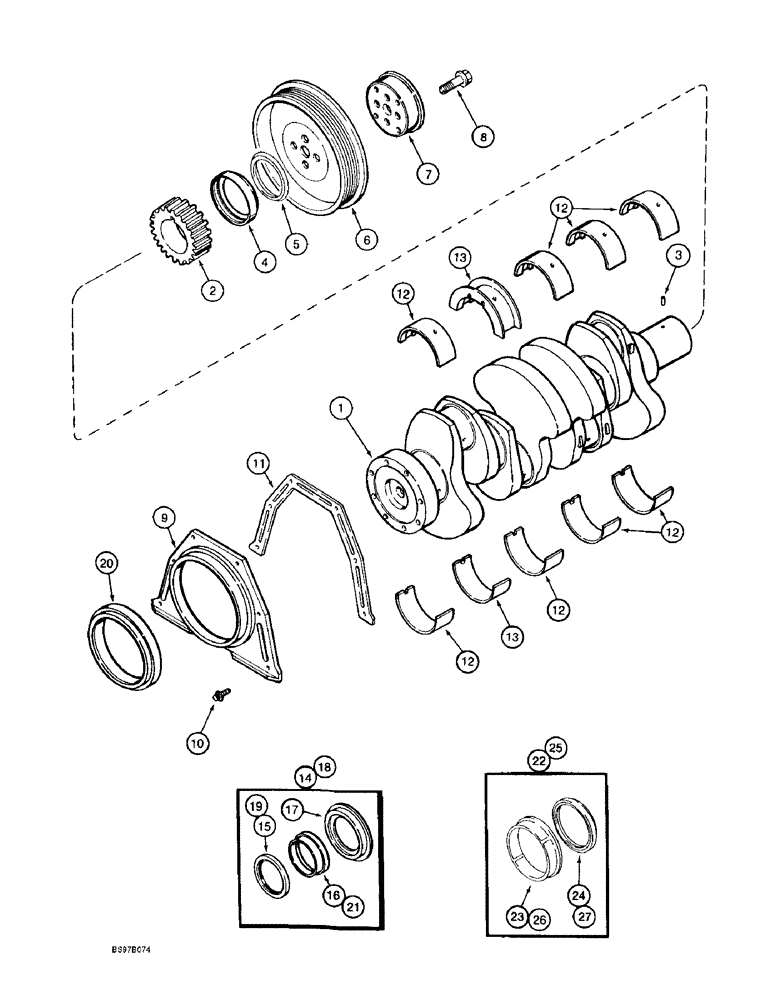

Схема запчастей Case 590L - (2-40) - CRANKSHAFT, 4T-390 ENGINE (02) - ENGINE
27
11
12
12
6
21
8
24
13
12
4
20
17
25
16
7
26
5
13
12
2
14
22
9
10
3
18
15
12
19
1
23

Артикул

Название

Примечание

Количество

JR908031

CRANKCASE

CRANKSHAFT - engine, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, for service order J918323 crankshaft assembly, Ref. 1

1шт.

J929036R

REMAN-CRANKSHAFT

590SL (3/95-), Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft for credit when using a remanufactured assembly

1шт.

1

J918323

CRANKSHAFT

ASSEMBLY - engine, new, Includes: Ref. 2 and 3

1шт.

J929036R

REMAN-CRANKSHAFT

590SL (3/95-), Reman for New P/N J918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

GEAR - crankshaft, Replaces J919681

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front, order Ref. 14 kit

1шт.

5

J926430

SHAFT SEAL

SEAL - dust, crankshaft, service repair only

1шт.

6

J914494

PULLEY,181.25mm OD

- crankshaft vibration damper

1шт.

7

J905820

ADAPTER

FLANGE - adapter, pulley

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

- hex flange, special, 12 - 1.25 x 36 mm

4шт.

9

J921043

REAR COVER

RETAINER - seal, rear cover

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

11

J928493

GASKET

- rear cover retainer, Replaces J914386

1шт.

12

A77405

CRANKSHAFT BEARING

BEARING - main, upper and lower set, standard

4шт.

12

A77472

BEARING SET

BEARING - main, upper and lower set, 0.25 mm undersize

4шт.

12

A77474

BEARING SET

BEARING - main, upper and lower set, 0.50 mm undersize

4шт.

12

A77476

BEARING SET

BEARING - main, upper and lower set, 0.75 mm undersize

4шт.

12

A77478

BEARING SET

BEARING - main, upper and lower set, 1.00 mm undersize

4шт.

13

A77406

CRANKSHAFT BEARING

BEARING - main thrust, upper and lower set, standard

1шт.

13

A77473

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.25 mm undersize

1шт.

13

A77475

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.50 mm undersize

1шт.

13

A77477

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.75 mm undersize

1шт.

13

A77479

THRUST BEARING

BEARING - main thrust, upper and lower set, 1.00 mm undersize

1шт.

13

A77841

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.50 mm undersize, 0.50 mm oversize thrust

1шт.

13

A77840

THRUST BEARING

BEARING - main thrust, upper and lower set, 1.00 mm undersize, 1.00 mm oversize thrust

1шт.

14

J904353

GASKET KIT

KIT - oil seal, crankshaft front, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

18

J802820

PACKAGE, REPAIR

KIT - oil seal, crankshaft front, includes wear sleeve, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE - wear, not shown

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

22

J909411

SEAL

KIT - oil seal, crankshaft rear, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

24

NSS

NOT SOLD SEPARAT

SLEEVE - installation

1шт.

25

A77810

SERVICE KIT

KIT - oil seal, crankshaft rear, includes wear sleeve, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

Выбрано товаров: 43
