Запчасти Case 590L (2-32) - CYLINDER HEAD AND VALVE MECHANISM, 4T-390 ENGINE (02) - ENGINE

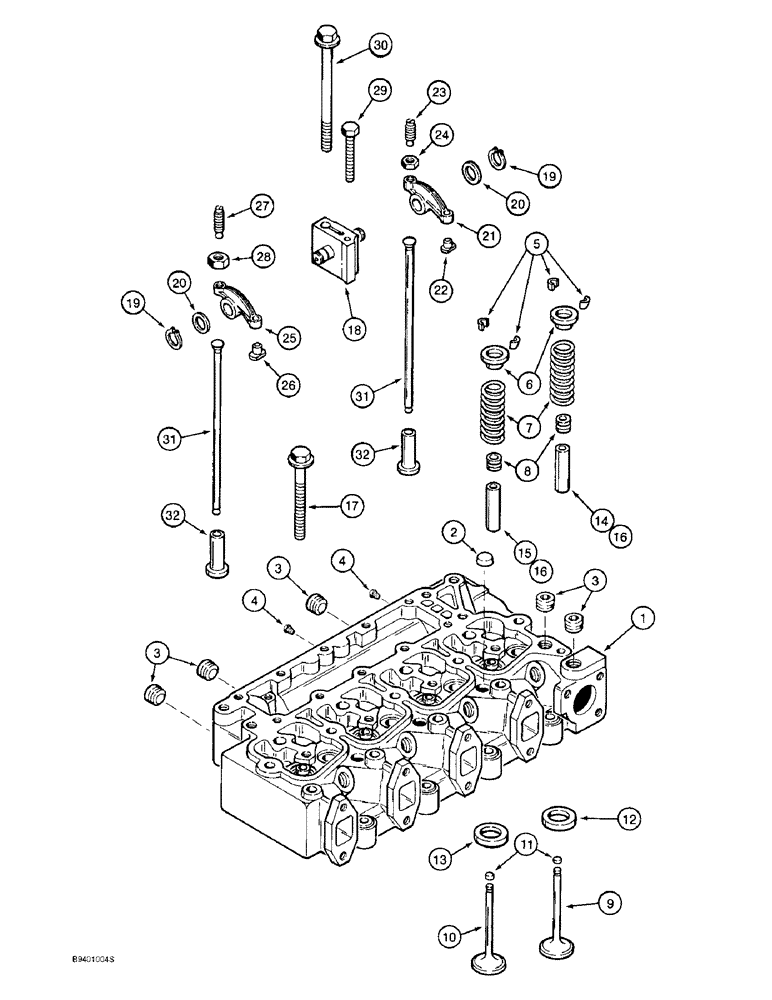

Схема запчастей Case 590L - (2-32) - CYLINDER HEAD AND VALVE MECHANISM, 4T-390 ENGINE (02) - ENGINE
28
29
21
9
7
23
32
27
16
31
25
3
12
11
8
10
26
13
5
4
1
32
22
16
14
17
19
3
18
19
24
3
30
2
31
20
6
15
20
4

Артикул

Название

Примечание

Количество

JR929736

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, Replaces JR920611, Includes: Ref. 1 - 10

1шт.

JC929736

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return head for credit when using a remanufactured assembly, Replaces JC920611, Includes: Ref. 1 - 10

1шт.

1

J929736

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves, Replaces J920611, Includes: Ref. 1 - 10

1шт.

1

J920005

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, without valves

1шт.

2

A77783

PLUG

- expansion, 21 mm O.D.

3шт.

3

A77429

PLUG

- hex socket, 1/2 inch PT, one removed to install temperature sending unit

5шт.

4

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

2шт.

5

J900250

SCREW

KEEPER - valve

16шт.

6

J900299

RETAINER

- valve spring

8шт.

7

J926700

VALVE SPRING

SPRING - valve, Replaces J900276 spring

8шт.

8

J901097

SEAL

- valve

8шт.

9

J920867

VALVE

- intake

4шт.

10

J920868

VALVE

- exhaust

4шт.

11

J280911

WEAR PAD

PAD - wear, service repair only for valve stem tip, for use on intake and exhaust valves

1шт.

12

J906854

SEAT, VALVE

SEAT - insert, intake valve, service repair only

4шт.

13

J904105

SEAT, VALVE

SEAT - insert, exhaust valve, service repair only

4шт.

14

J904408

GUIDE

- valve, intake, service repair only, 14 mm O.D.

4шт.

These parts are semi-finished valve guides.

1шт.

15

J904409

GUIDE

- valve, exhaust, service repair only, 14 mm O.D.

4шт.

These parts are semi-finished valve guides.

1шт.

16

J906206

GUIDE

- valve, intake and exhaust, service repair only, 11 mm O.D.

8шт.

These parts are semi-finished valve guides.

1шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - cylinder head, 70 mm long

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Cylinder head, 120 mm long

10шт.

18

J922488

SUPPORT

AND SHAFT ASSEMBLY - rocker arm

4шт.

19

J900242

SNAP RING

RING - retaining, rocker arm

8шт.

20

J900245

WASHER

- thrust, rocker arm

8шт.

21

J910811

ROCKER

ARM ASSEMBLY - rocker, intake, Includes: Ref. 22 - 24

4шт.

22

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

24

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

25

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust, Includes: Ref. 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

29

J901221

BOLT

- hex, 8 - 1.25 x 75 mm, Replaces 814-8075

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - rocker arm and cylinder head, 180 mm long

4шт.

31

J923262

PUSH ROD

ROD - push, rocker arm

8шт.

32

J931623

TAPPET

- valve, push rod, Replaces J925031

8шт.

Выбрано товаров: 39
