Запчасти Case 590L (2-26) - OIL FILTER AND COOLER, 4T-390 ENGINE (02) - ENGINE

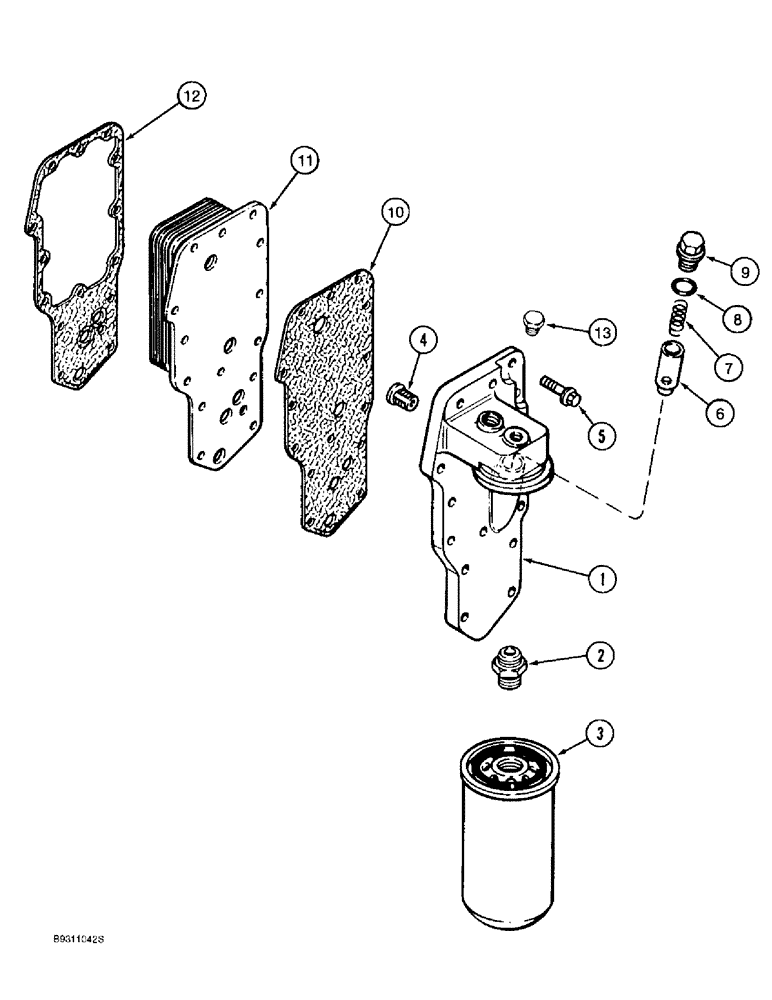

Схема запчастей Case 590L - (2-26) - OIL FILTER AND COOLER, 4T-390 ENGINE (02) - ENGINE
5
9
11
6
7
2
4
1
13
10
12
3
8

Артикул

Название

Примечание

Количество

J918954

HEAD

ASSEMBLY - oil filter and cooler

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - lube oil filter

1шт.

2

J909355

ADAPTER

- filter head

1шт.

3

J933145

FILTER

- engine oil, cartridge, Replaces J908616

1шт.

J908616 can be used instead of J933145. J908616 is the regular specified filter and J933145 is the premium filtration filter. Both applicable and available.

1шт.

4

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

5

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

14шт.

6

J918428

PLUNGER

- regulator, pressure

1шт.

7

J918427

SPRING

- compression, 54 mm free length

1шт.

8

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

9

J915787

PLUG

- threaded, pipe

1шт.

10

J929792

GASKET,1.2mm Thk

- filter head, Replaces J918257

1шт.

11

J921557

COOLER

CORE - cooler, oil

1шт.

12

J942914

GASKET

- oil cooler core, Replaces J926760

1шт.

13

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

1шт.

Выбрано товаров: 15
