Запчасти Case 590L (2-20) - MANIFOLDS, 4T-390 ENGINE, EXHAUST, INTAKE (02) - ENGINE

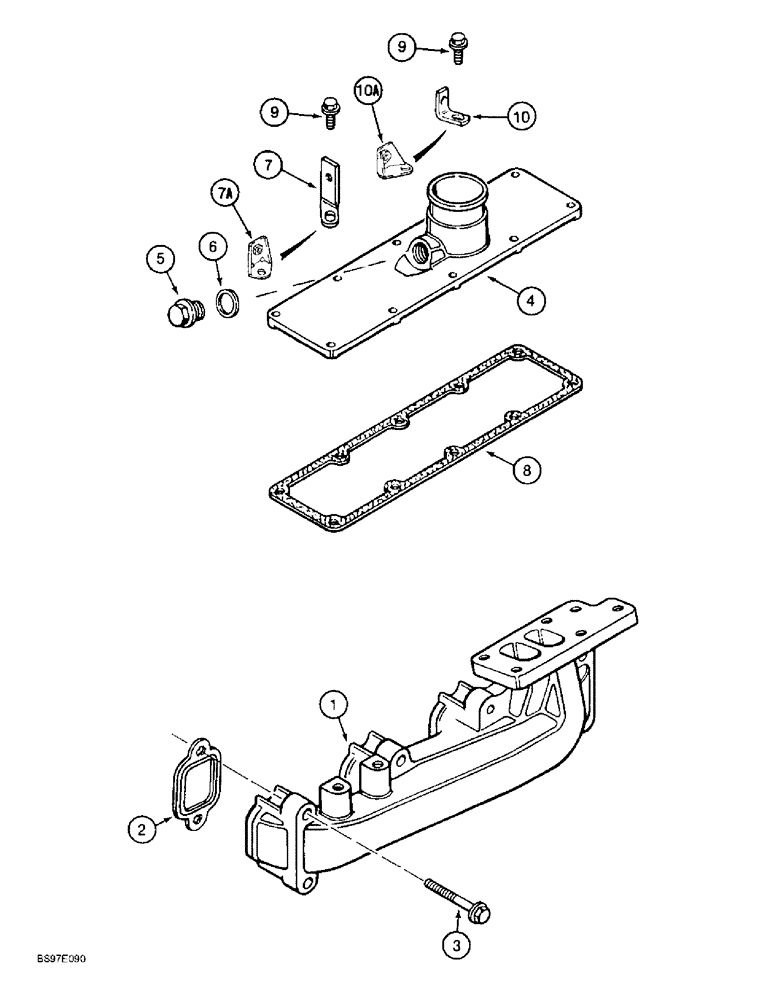

Схема запчастей Case 590L - (2-20) - MANIFOLDS, 4T-390 ENGINE, EXHAUST, INTAKE (02) - ENGINE
7a
6
4
10
5
1
3
8
2
9
7
10a
9

Артикул

Название

Примечание

Количество

1

J287119

EXHAUST MANIFOLD

- exhaust

1шт.

73mm (approx 2.87") center to center hole spacing for mounting turbo with M8 studs (J934178) and nut (J929777)

1шт.

Use J901919 manifold with new J818823 - M10 studs, J818824 - M10 flange nut, J901356 gasket and new J802908 turbo. Refer to service via ASIST with any update concerns.

1шт.

1

J901919

MANIFOLD

1шт.

86mm (approx 3.385") center to center hole spacing for mounting turbo with M10 studs (J818823) and nut (J818824)

1шт.

2

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.50 x 65 mm, class 10.9

8шт.

A77416

COVER

KIT - intake manifold, no longer available, order components separately, Ref. 4 - 6

1шт.

4

J904339

COVER

- intake

1шт.

5

J907185

PLUG

- manifold

1шт.

6

J906773

WASHER

- plug sealing

1шт.

7

J919292

SUPPORT

BRACKET - fuel tube, no longer used, order Ref. 7A

1шт.

7a

J930688

SUPPORT

BRACKET - fuel tube, see Ref. 17A on Figure 3-8

1шт.

8

J938153

MANIFOLD GASKET,0.8mm Thk

- intake manifold, Replaces J914028

1шт.

9

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Intake manifold Hex Flg Hd, M8 x 1.25 x 25

10шт.

10

J919294

SUPPORT

BRACKET - fuel tube, no longer used, order Ref. 10A

1шт.

10a

J930689

SUPPORT

BRACKET - fuel tube, see Ref. 16A on Figure 3-8

1шт.

Выбрано товаров: 17
