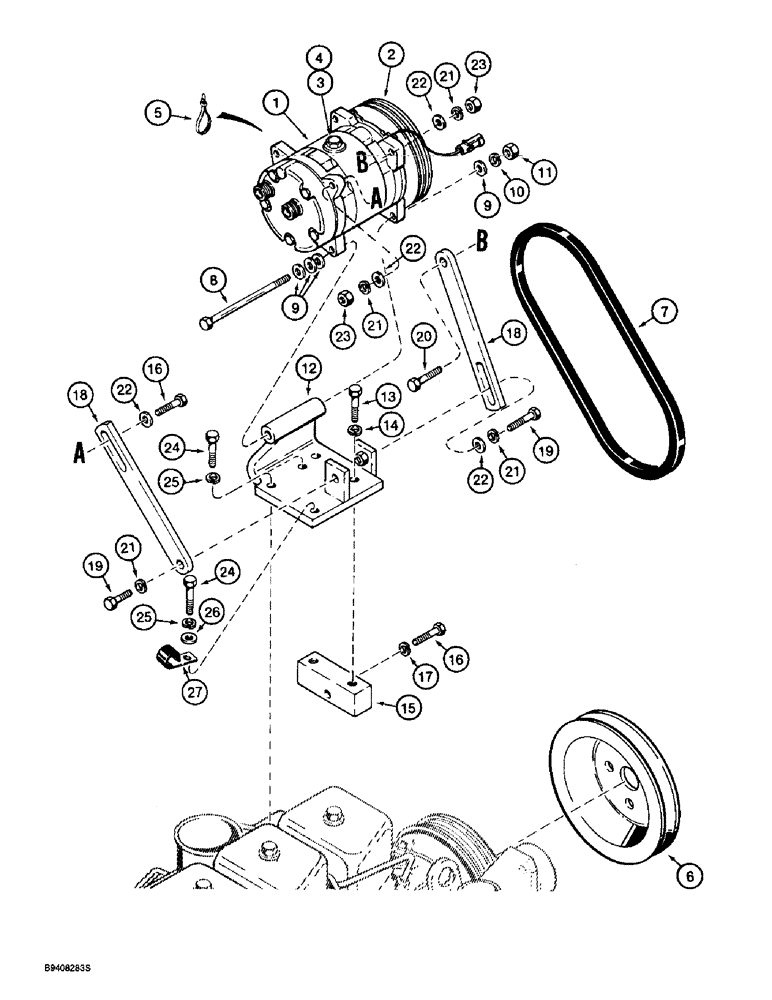

Запчасти Case 590L (9-130) - AIR CONDITIONING, COMPRESSOR MOUNTING AND DRIVE (09) - CHASSIS/ATTACHMENTS

1999755C2

COMPRESSOR

ASSEMBLY - air conditioning, Includes: Ref. 1 - 4

1шт.

86993462R

REMAN-COMPRESSOR

590SL (3/95-); Reman For New P/N 1999755C2

1шт.

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

1

NSS

NOT SOLD SEPARAT

COMPRESSOR - air conditioning

1шт.

2

135324A1

CLUTCH

ASSEMBLY - compressor

1шт.

3

A49667

PLUG

- hex, oil filler

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide, plug

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

6

A189284

PULLEY,151mm OD

- air conditioner compressor drive

1шт.

7

277546A1

BELT

V-BELT, Drive, Compressor, Replaces 128790A1

1шт.

8

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

- hex, 10 - 1.5 x 130 mm, class 10.9

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.

10

892-11010

LOCK WASHER,M10

1шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

12

A189274

SUPPORT

BRACKET - compressor mounting

1шт.

14

892-11010

LOCK WASHER,M10

2шт.

15

A184614

SUPPORT

BLOCK - bracket support

1шт.

16

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

2шт.

17

892-11010

LOCK WASHER,M10

1шт.

18

A184932

TENSIONER

STRAP - compressor adjusting

2шт.

20

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

1шт.

21

892-11010

LOCK WASHER,M10

4шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

25

892-11010

LOCK WASHER,M10

3шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1шт.

27

D147383

CLIP,5/8" J

CLAMP - J-type, main engine harness to compressor bracket

1шт.

13

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

19

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

24

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.
