Запчасти Case 590L (2-10) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

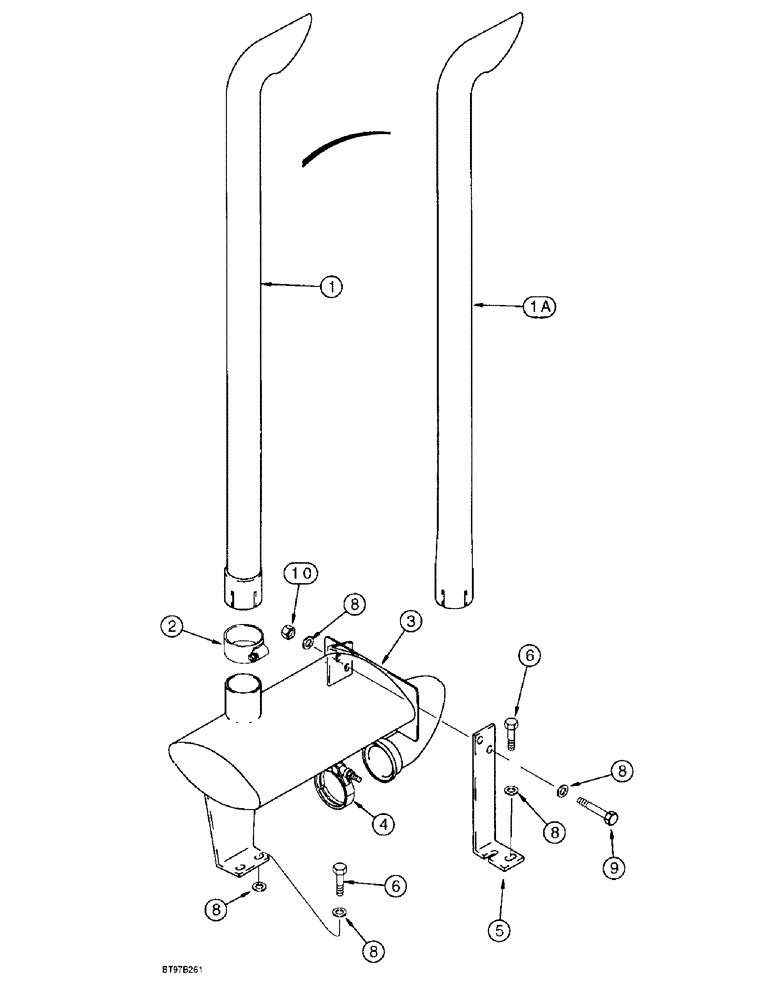

Схема запчастей Case 590L - (2-10) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE
2
6
8
8
10
8
9
1a
3
5
6
1
8
4
8

Артикул

Название

Примечание

Количество

1

192704A1

PIPE, EXHAUST SYSTEM

PIPE - exhaust, muffler extension, no longer available, order 275967A1, Ref. 1A

1шт.

1a

275967A1

PIPE, EXHAUST SYSTEM

PIPE - exhaust, muffler extension

1шт.

2

176437A1

CLAMP,63.5mm - mm

- exhaust pipe to muffler, includes hardware

1шт.

3

192483A1

MUFFLER,W/ Spark Arrester

- engine exhaust

1шт.

4

A170467

CLAMP,72mm ID

- includes hardware, muffler, Serial Range: tube-engine

1шт.

5

187021A1

SUPPORT

BRACKET - muffler, front

1шт.

8

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

10шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

Выбрано товаров: 10
