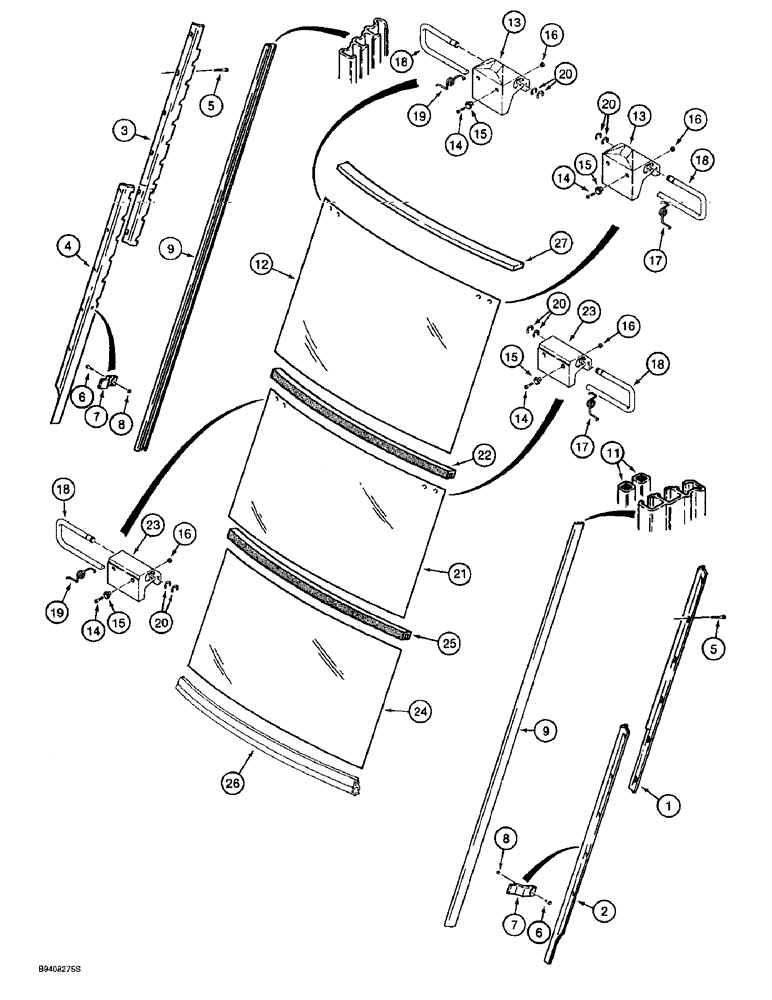

Запчасти Case 590L (9-108) - CAB REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

97256C3

SUPPORT

BRACKET - right-hand, upper

1шт.

2

97257C3

SUPPORT

BRACKET - right-hand, lower

1шт.

3

97258C3

RETAINER

BRACKET - left-hand, upper

1шт.

4

97259C3

SUPPORT

BRACKET - left-hand, lower

1шт.

5

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

- self-tapping, hex washer head, No. 10 NC x 3/4 inch

18шт.

6

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex flange, 1/4 NC x 3/4 inch

2шт.

7

D129974

BRACKET

- window, lower rear

2шт.

8

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

9

1989960C1

SLIPPER

CHANNEL - track

2шт.

11

179355A1

SEALING STRIP,9.53mm W x 1536mm L x 6.35mm Thk

- foam, adhesive-backed, 1536 mm (60-15/32 inch) long, special, track channel both sides

4шт.

12

D129967

GLASS

- upper rear window

1шт.

13

97278C1

LATCH

- upper rear window only

2шт.

14

442-11016

SCREW,Cross Oval Hd, #10-24 x 1"

- machine, oval Phillips, No. 10 NC x 1 inch

8шт.

15

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- nylon, black, special

8шт.

16

230-42409

NUT,#10-24, GA

NUT - hex, self-locking, No. 10 NC

8шт.

17

1990727C1

SPRING

- right-hand latch

2шт.

18

1344232C1

LEVER

- latch, metal, left-hand and right-hand

4шт.

19

1990728C1

SPRING

- left-hand latch

2шт.

20

100-3337

SNAP RING,E-Type, 0.3" OD

Ring, Retaining, , Latch lever #37, .300" Dia, E-Type

8шт.

21

D129968

GLASS

- center rear window

1шт.

22

D126198

SEAL,894mm L

- 912 mm (35-29/32 inch) long, center window glass

1шт.

23

97277C1

LATCH

- window, center window

2шт.

24

D129969

GLASS

- lower rear window

1шт.

25

D126198

SEAL,894mm L

- 912 mm (35-29/32 inch) long, lower window glass

1шт.

26

137315A1

SEAL,899.6mm L

TRIM - edge, bulk, 900 mm (35-7/16 inch) long, lower rear glass

1шт.

27

106974A1

SEAL,912mm L

- foam, adhesive-backed, 20 x 10 x 912 mm, upper rear glass

1шт.
