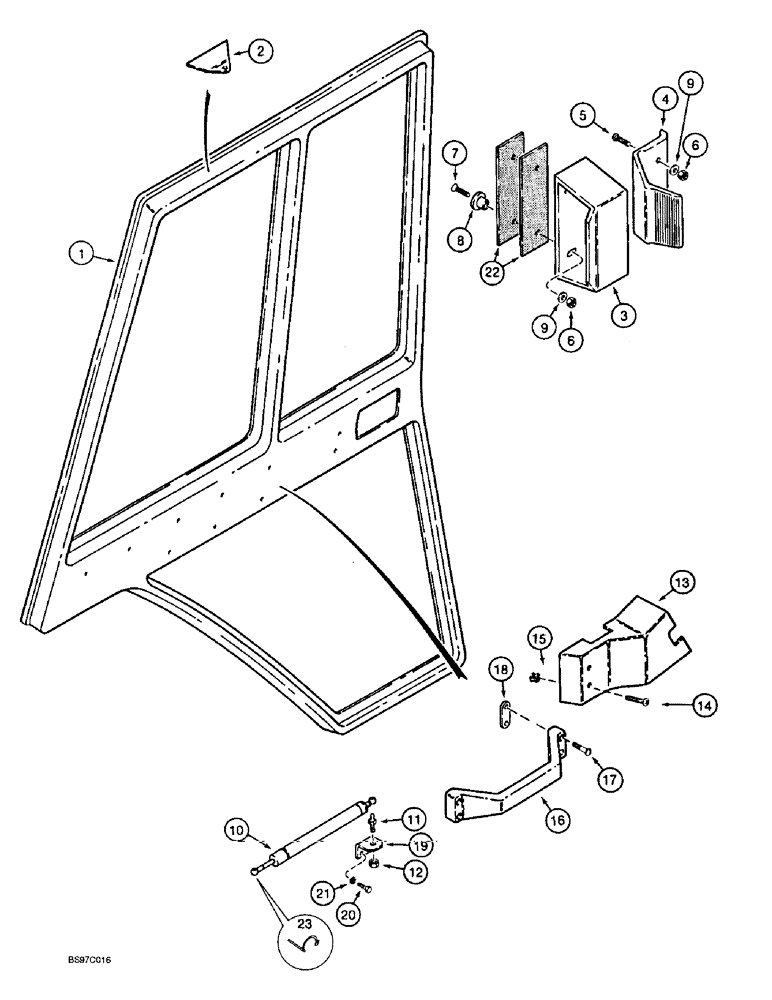

Запчасти Case 590L (9-104) - LEFT-HAND AND RIGHT-HAND CAB DOORS - INTERIOR (09) - CHASSIS/ATTACHMENTS

1

137868A3

DOOR ASSY.

FRAME - left-hand door, replaces 137868A1 and 137868A2, Includes: Ref. 2

1шт.

Ref 1, 137868a3 - Complete door assy is 194021a2

1шт.

1a

137869A3

DOOR ASSY.

FRAME - right-hand door, not shown, replaces 137868A1 and 137868A2, Includes: Ref. 2

1шт.

Ref 1a - 137869a3 - complete door assy is 194013a2

1шт.

2

R53562

BRACKET

- cable, welded to left-hand or right-hand door frame

1шт.

3

97399C1

HANDLE

- door window

2шт.

4

97398C1

LOCK ASSY

LATCH - push type, door window

2шт.

5

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

6

F45165

SPECIAL NUT,#10-24

NUT - hex, self-locking, special, No. 10 NC

8шт.

7

142-104

SCREW,Oval HD, #10 - 24 x 1"

4шт.

8

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- nylon, black, Serial Range: glass-bracket

4шт.

9

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

(1/4 x 9/16 x 3/64") #12

8шт.

10

F44881

CYLINDER ASSY.

CYLINDER - door, left-hand and right-hand

2шт.

11

1340345C1

BALL STUD

STUD - ball, cylinder

2шт.

12

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.

13

108938A2

PANEL

- left-hand door, used with 137868A1 frame, replaces 108938A1

1шт.

13a

108936A2

PANEL

- right-hand door, used with 137869A1 frame, not shown, replaces 108936A1

1шт.

14

260-16524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

SCREW, SELF TAPPING, pan Phillips, No. 10-16 x 1-1/2", Black, LH and RH door panels

4шт.

15

R53000

GROMMET

RETAINER - screw, left-hand and right-hand door panels

4шт.

16

1958970C1

HANDLE

- left-hand and right-hand inner door

2шт.

17

165-129

HEX SOC SCREW,Self-Lkg, 1/4" - 20 x 3/4"

BOLT - hex socket, self-locking, 1/4 NC x 3/4 inch, black, left-hand and right-hand inner door handles

8шт.

18

1971368C1

PLATE ASSY.

PLATE - retainer, left-hand and right-hand inner door handle

4шт.

19

1977399C1

SUPPORT ASSY.

BRACKET - cylinder

2шт.

20

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

22

R54047

PAD,30mm OD x 0.76mm Thk

SHIM - latch bracket, left-hand and right-hand door window

4шт.

23

F44883

CLIP,DIN 71805 - S10

RETAINER - lock, clip

2шт.
