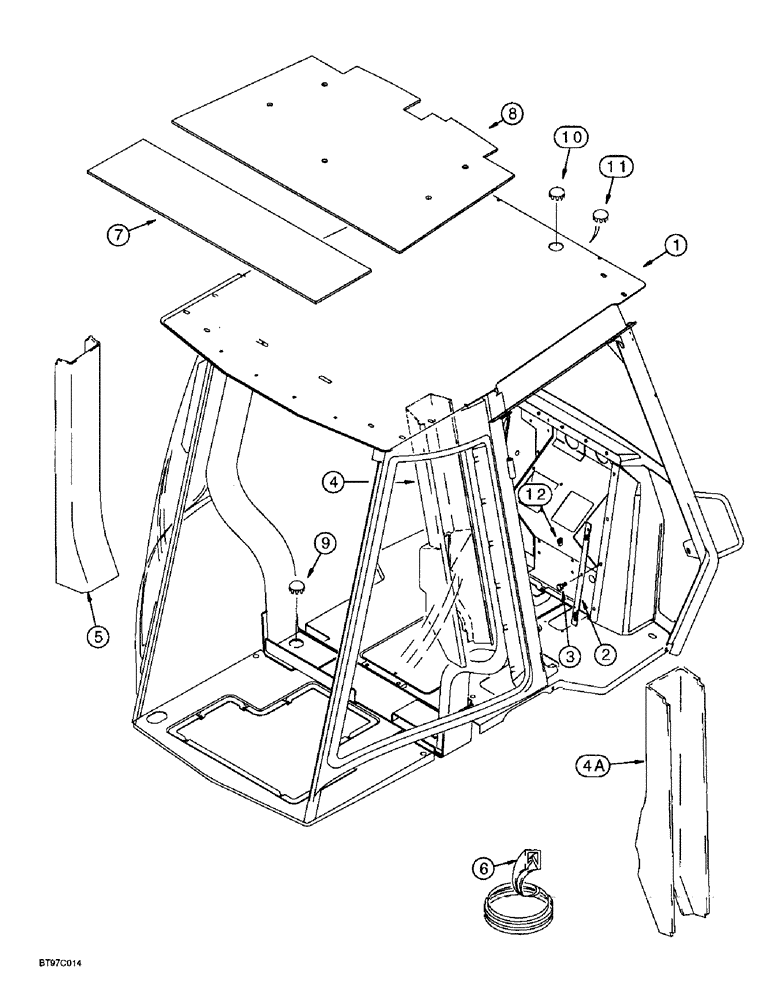

Запчасти Case 590L (9-100) - CAB FRAME, COVERS AND INSULATION (09) - CHASSIS/ATTACHMENTS

1

280999A1

KIT

FRAME - ROPS cab, this frame is not serviced separately, replaces 121648A1 and 121648A2 frame (Replaces 121648A3), Includes: Ref. 2 and 3

1шт.

2

137851A1

PLATE

- bar, front console mounting to firewall, also shown on Figure 4-22, no longer included with frame, purchase separately

2шт.

3

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

No longer included with frame, Purchase separately Hex Flg, M8 x 20, 8.8

13шт.

4

126371A1

COVER

- plastic, right-hand post

1шт.

4a

131977A2

PANEL

COVER - gray vinyl, right-hand post, optional deluxe interior, replaces 131977A1

1шт.

5

131976A2

CLOTHES

COVER - gray vinyl, left-hand post, optional deluxe interior, replaces 131976A1

1шт.

131976A2, LH POST COVER FOR DELUXE INTERIOR. THERE IS NOT A L.H. POST COVER AVAIL FOR UNITS WITH STD INTERIOR PER BURLINGTON ENGINEERING.

1шт.

6

108963A1

LINING

SEAL - trim, right-hand post

2шт.

7

108797A1

PANEL

PAD - insulation, rear, 200 x 813 x 6.4 mm, cut from 108794A2 bulk pad

1шт.

8

127021A2

PANEL

PAD - insulation, front cab roof, replaces 127021A1 pad

1шт.

9

205-129

HOLE PLUG BUTTON,2"

PLUG - button, 2 inch ID, floor

2шт.

10

353-415

PLUG,Dome, 1.500" hole, Nylon

- button, 1-1/2 inch, cab roof, models without radio antenna

1шт.

11

353-410

PLUG,Dome, .875" hole, Nylon

- button, 7/8 inch, Windshield frame, Top, Models without Radio Antenna

1шт.

12

833-40406

NUT,M6, U

- U-type, 6 mm - 1.0

4шт.

108794A2

ISOLATOR

PAD - bulk, 577 x 813 x 6.4 mm, insulation

1шт.
