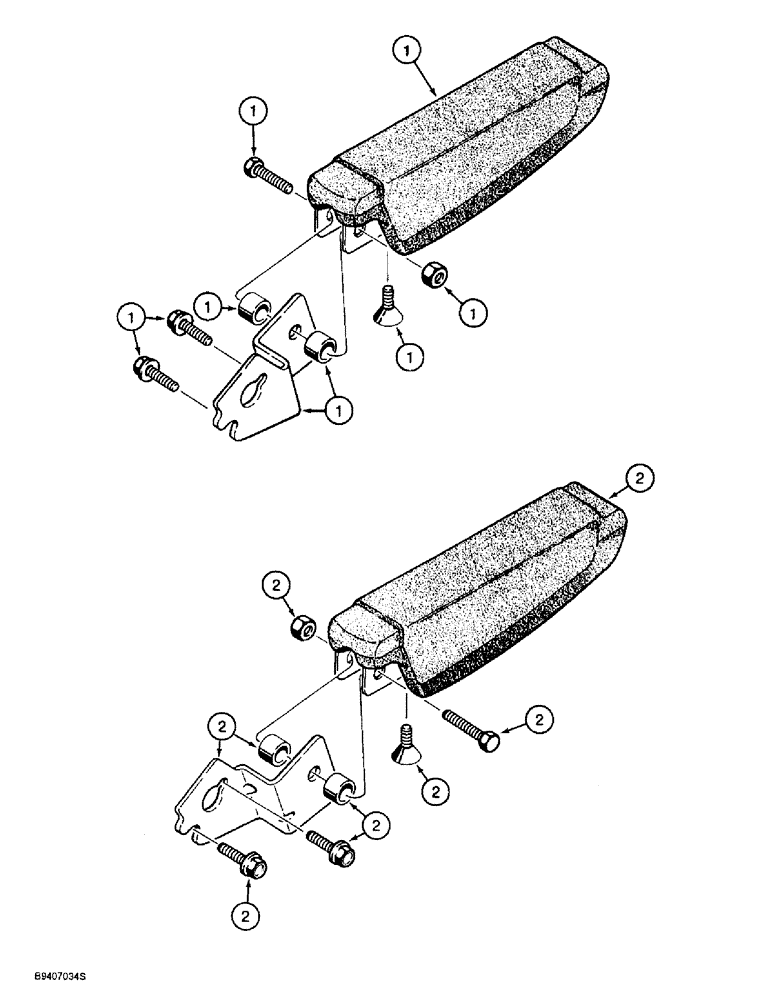

Запчасти Case 590L (9-096) - SUSPENSION SEAT ARMRESTS (09) - CHASSIS/ATTACHMENTS

185158A2

SEAT

ASSEMBLY - suspension, gray cloth, includes seat, armrests, suspension, pedestal, and weight adjuster on Figures 9-90 and 9-94, individual component parts NSS, for service order respective component kits, replaces 185158A1, Includes: Ref. 1 and 2

1шт.

185157A1

SEAT

ASSEMBLY - suspension, gray vinyl, includes seat, armrests, suspension, pedestal, and weight adjuster on Figures 9-90 and 9-94, individual component parts NSS, for service order respective component kits, Includes: Ref. 1 and 2

1шт.

1

176912A1

KIT

- left-hand armrest and mounting hardware, also includes (1) shroud upper left side plastic retainer, shown on Figure 9-90

1шт.

2

176913A1

KIT

- right-hand armrest and mounting hardware, also includes (1) shroud upper right side plastic retainer, shown on Figure 9-90

1шт.
