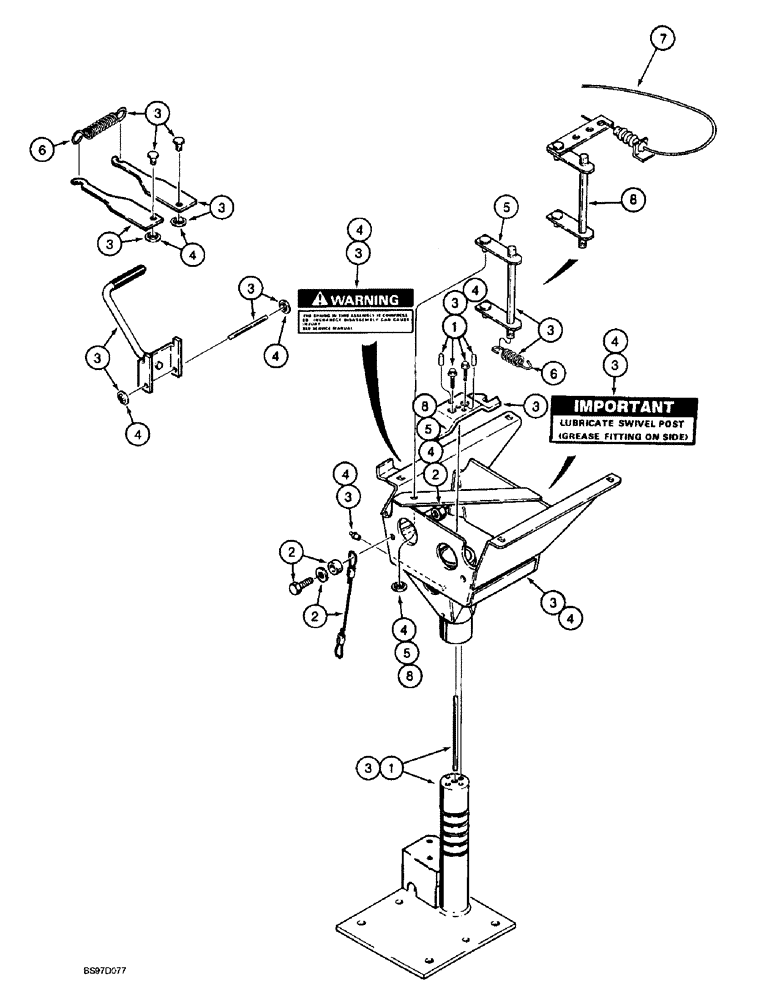

Запчасти Case 590L (9-092) - STANDARD SEAT SUPPORT AND PEDESTAL (09) - CHASSIS/ATTACHMENTS

185156A1

SEAT

ASSEMBLY - standard, gray vinyl, includes seat on Figure 9-88 and support and pedestal below, individual component parts not serviced separately, for service order respective kits, Includes: Ref. 1 - 8

1шт.

Consists of seat A and pedestal A . For seat A, which consist of shell, cushion, backrest and trim, order 234223A1. For pedestal A, order 116764A2.

1шт.

1

116761A2

KIT

- support, base

1шт.

Also includes (4) lock nuts for seat adjuster slide on Figure 9-88.

1шт.

The support kit does not include the little shaft pictured going through the center hole of the support.

1шт.

2

116763A1

KIT

- cable, anchor, includes hardware for both ends of cable

1шт.

3

116764A2

KIT

- pedestal, includes 219-16 grease fitting

1шт.

Also includes (4) lock nuts for seat adjuster slide on Figure 9-88.

1шт.

4

116766A2

KIT

- pedestal box, includes 219-16 grease fitting

1шт.

Also includes (4) lock nuts for seat adjuster slide on Figure 9-88.

1шт.

5

116767A1

KIT

- swivel latch, includes (6) lock nuts, (1) push nut and (1) swivel latch, if used

1шт.

Also includes (4) lock nuts for seat adjuster slide on Figure 9-88.

1шт.

6

119171A1

KIT

- spring, also includes seat slide adjuster spring on Figure 9-88

1шт.

7

181169A1

KIT

- cable, fore-aft/swivel mechanism, also includes (4) nuts on Figure 9-88

1шт.

8

253209A1

KIT

- swivel latch, includes (4) lock nuts, (1) rivet, (1) spacer, (1) washer, (1) push nut and (1) swivel latch, if used

1шт.
