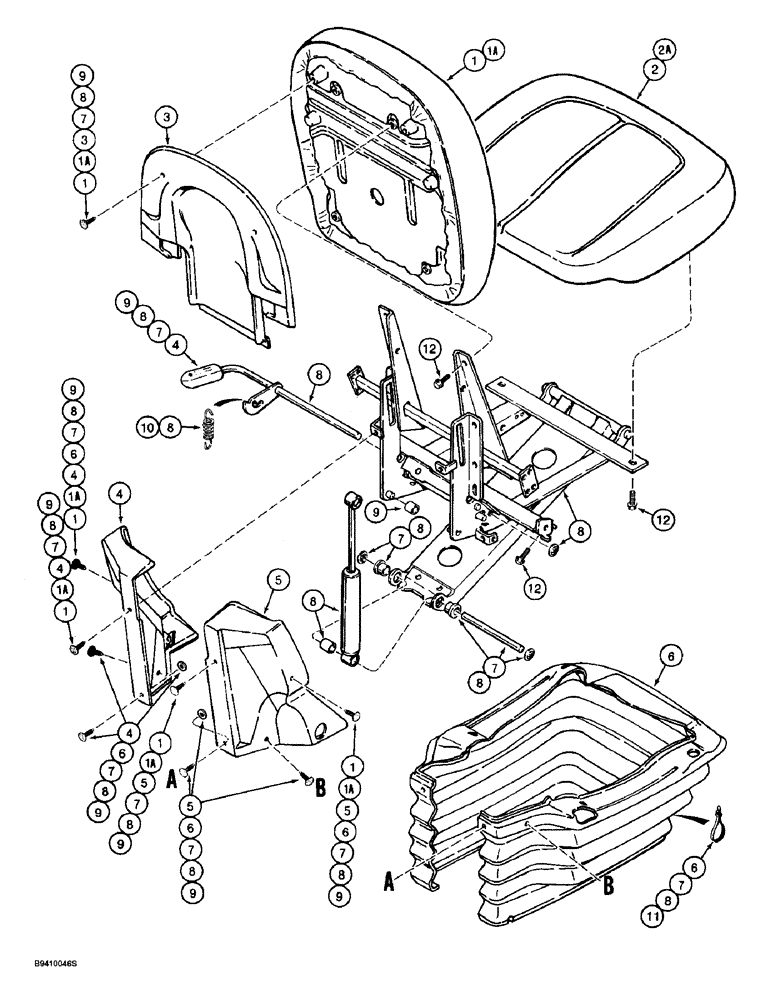

Запчасти Case 590L (9-090) - SUSPENSION SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

185158A2

SEAT

ASSEMBLY - suspension, gray cloth, includes seat, armrests, suspension, pedestal, & weight adjuster on Fig.s 9-94 and 9-96, individual component parts NSS, for service order respective component kits, replaces 185158A1, Includes: Ref. 1 - 11

1шт.

185157A1

SEAT

ASSEMBLY - suspension, gray vinyl, includes seat, armrests, suspension, pedestal, and weight adjuster on Figures 9-94 and 9-96, individual component parts not serviced separately, for service order respective component kits, Includes: Ref. 1 - 11

1шт.

1

176922A2

KIT

- backrest cushion, gray cloth, replaces 176922A1

1шт.

1a

176923A1

KIT

- backrest cushion, gray vinyl

1шт.

2

176909A2

KIT

- seat cushion, gray cloth, replaces 176909A1

1шт.

2a

176910A1

KIT

- seat cushion, gray vinyl

1шт.

3

176906A1

KIT

- backrest shroud

1шт.

4

176903A1

KIT

- left-hand shroud

1шт.

5

176904A1

KIT

- right-hand shroud

1шт.

6

176911A1

KIT

- boot, rubber

1шт.

7

176919A1

KIT

- swing arm pivot shaft

1шт.

8

116549A1

KIT

- suspension, includes parts from seat frame to adjuster slides, see additional kit parts on Figure 9-94, Ref. 1

1шт.

9

176921A1

KIT

- plastic components, also see additional kit parts on Figure 9-94, Ref. 2

1шт.

10

116547A1

KIT

- height adjusting spring, also includes (10) shroud plastic retainers, see additional kit parts on Figure 9-94, Ref. 6

1шт.

11

181170A1

KIT

- cable, fore-aft/swivel mechanism, also includes cable and (4) nuts on Figure 9-94

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - 5/16 inch thread, length as needed, purchase locally, seat cushion and backrest

8шт.
