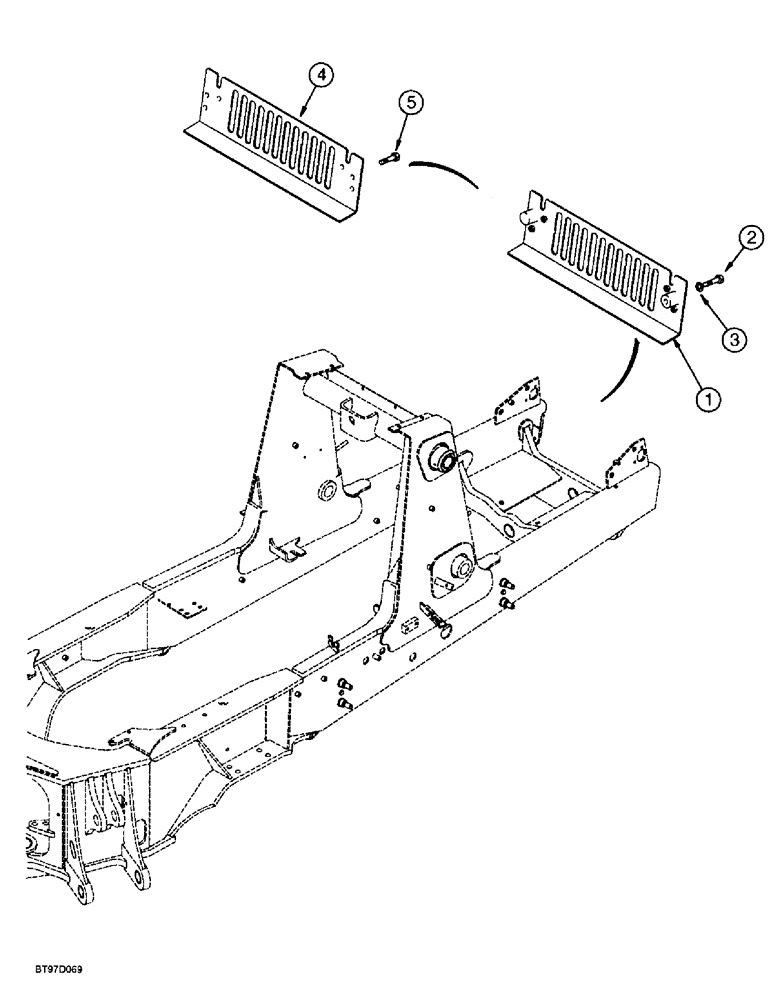

Запчасти Case 590L (9-072) - PUMP GUARDS (09) - CHASSIS/ATTACHMENTS

1

133800A1

PROTECTOR

GUARD - pump, if used

1шт.

2

814-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 8.8

- hex, 20 - 2.5 x 80 mm

2шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

2шт.

4

229676A1

LARGE PLATE

GUARD - pump, plate, if used

1шт.

5

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT - hex washer, special, 10 - 1.5 x 30 mm

2шт.
