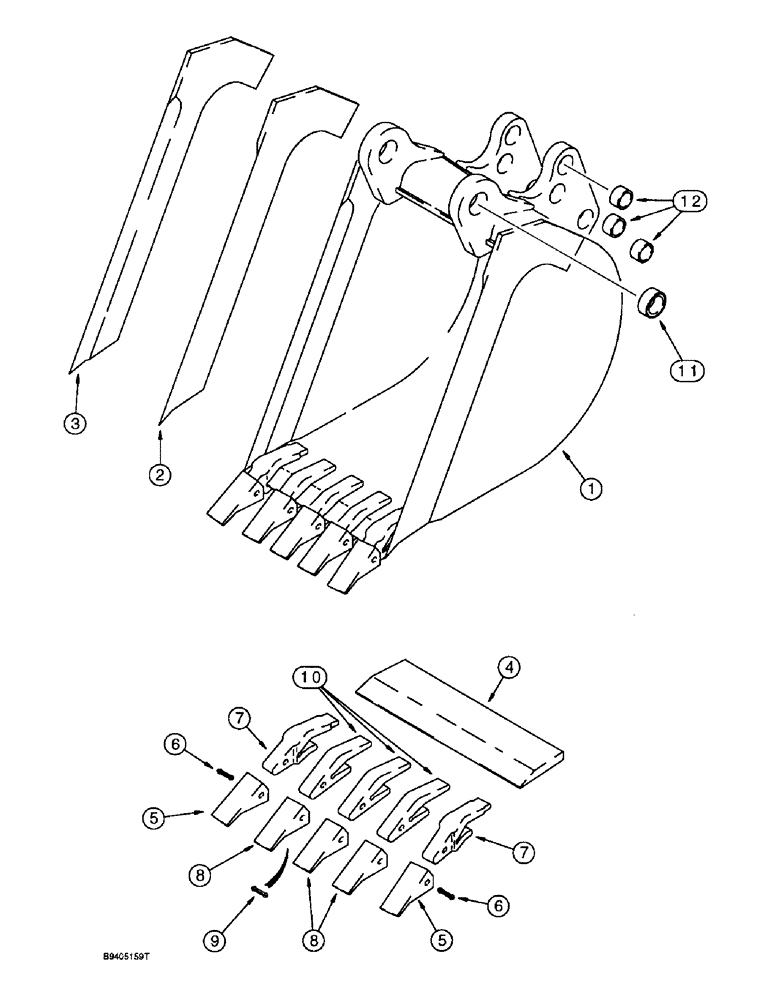

Запчасти Case 590L (9-060) - UNIVERSAL BACKHOE BUCKET, 610 MM (24") AND 762 MM (30") WIDE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
141232A1
BUCKET
ASSEMBLY - high capacity trenching, with 5 teeth, order from Machinery Price List, 610 mm (24 inch) wide, Includes: Ref. 2 - 12
1шт.
2
141234A1
EDGE, CUTTING
EDGE - cutting, right-hand side, bucket
1шт.
3
141233A1
EDGE, CUTTING
EDGE - cutting, left-hand side, bucket
1шт.
4
D142012
EDGE, CUTTING,597mm W x 165.1mm L
EDGE - cutting, center, 610 mm (24 inch) bucket
1шт.
D139851
BUCKET TOOTH
TOOTH, BUCKET, Assy - outer corners, Includes Ref 5 - 7
2шт.
5
D39093
TOOTH
POINT - tooth, outer corners
1шт.
6
245466A1
RETAINER,Flexpin, Bucket Tooth
Pin Flex, Outer point and shank, Replaces D134686
1шт.
7
D138157
SHANK
- tooth, outer corners
1шт.
D139849
BUCKET TOOTH
TOOTH, BUCKET, Assy, Center, order Ref 8 - 10
3шт.
8
D51750
BUCKET TOOTH POINT
POINT - tooth, center
1шт.
9
245466A1
RETAINER,Flexpin, Bucket Tooth
Pin Flex, Center point and shank, Replaces D134686
1шт.
10
D48212
SHANK
- tooth, center
1шт.
11
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
- 1-3/4 x 2-1/4 x 1-1/4 inch
2шт.
12
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
- 1-1/2 x 1-7/8 x 1-1/4 inch
6шт.
1
190267A1
BUCKET
ASSEMBLY - high capacity trenching, with 5 teeth, order from Machinery Price List, 762 mm (30 inch) wide high capacity trenching bucket, Includes: Ref. 2 - 12
1шт.
2
141234A1
EDGE, CUTTING
EDGE - cutting, right-hand side, bucket
1шт.
3
141233A1
EDGE, CUTTING
EDGE - cutting, left-hand side, bucket
1шт.
4
D145061
EDGE, CUTTING
EDGE - cutting, center, 762 mm (30 inch) bucket
1шт.
D139851
BUCKET TOOTH
TOOTH, BUCKET, Assy - outer corners, Includes Ref 5 - 7
2шт.
5
D39093
TOOTH
POINT - tooth, outer corners
1шт.
6
245466A1
RETAINER,Flexpin, Bucket Tooth
Pin Flex, Outer point and shank, Replaces D134686
1шт.
7
D138157
SHANK
- tooth, outer corners
1шт.
D139849
BUCKET TOOTH
TOOTH, BUCKET, Assy, Center, order Ref 8 - 10
3шт.
8
D51750
BUCKET TOOTH POINT
POINT - tooth, center
1шт.
9
245466A1
RETAINER,Flexpin, Bucket Tooth
Pin Flex, Center point and shank, Replaces D134686
1шт.
10
D48212
SHANK
- tooth, center
1шт.
11
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
- 1-3/4 x 2-1/4 x 1-1/4 inch
2шт.
12
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
- 1-1/2 x 1-7/8 x 1-1/4 inch
6шт.
Выбрано товаров: 28
