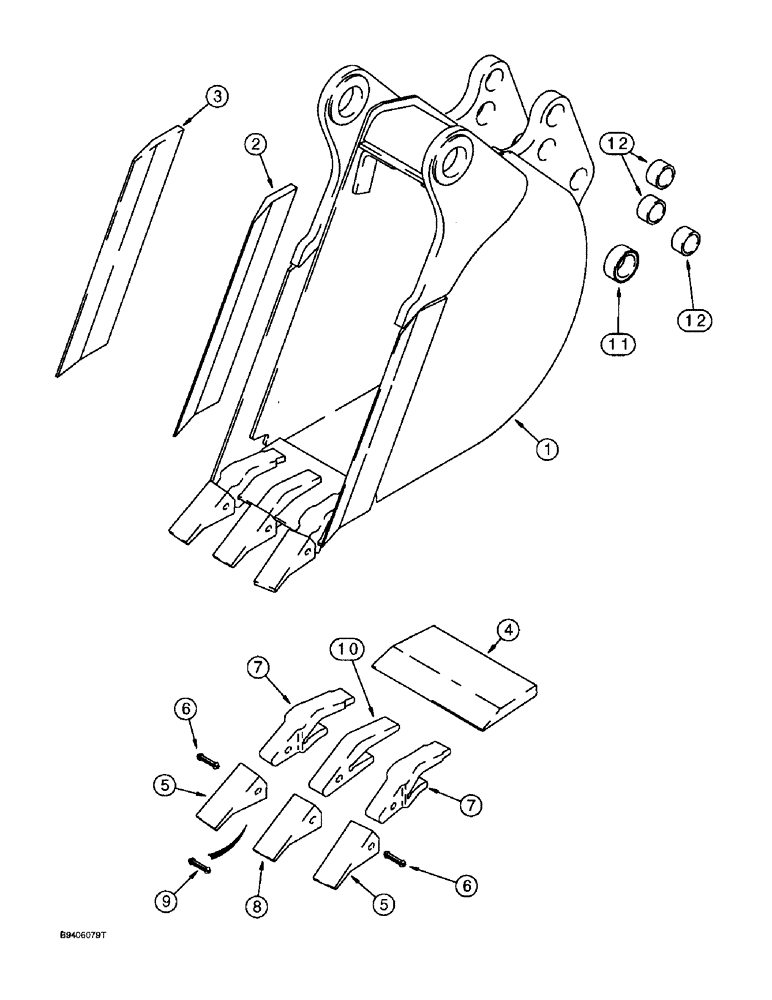

Запчасти Case 590L (9-052) - UNIVERSAL BACKHOE BUCKET, 305 MM (12 INCH) WIDE, TRENCHING BUCKET & TEETH- HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

D147418

BUCKET

ASSEMBLY - heavy duty trenching, with 3 teeth, order from Machinery Price List, 305 mm (12 inch) wide, Includes: Ref. 2 - 12

1шт.

See Ref. 32 on Figure 9-46 for pin used on 12 inch Universal bucket.

1шт.

2

D147411

EDGE, CUTTING

EDGE - cutting, right-hand side, bucket

1шт.

3

D147410

EDGE

- cutting, left-hand side, bucket

1шт.

4

D147409

EDGE, CUTTING

EDGE - cutting, center, 305 mm (12 inch) bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy - outer corners, Includes Ref 5 - 7

2шт.

5

D39093

TOOTH

POINT - tooth, outer corners

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin Flex, Outer point and shank, Replaces D134686

1шт.

7

D138157

SHANK

- tooth, outer corners

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, order Ref 8 - 10

1шт.

8

D51750

BUCKET TOOTH POINT

POINT - tooth, center

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin Flex, Center point and shank, Replaces D134686

1шт.

10

D48212

SHANK

- tooth, center

1шт.

11

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- 1-3/4 x 2-1/4 x 3/4 inch

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- 1-1/2 x 1-7/8 x 1-1/4 inch

6шт.
