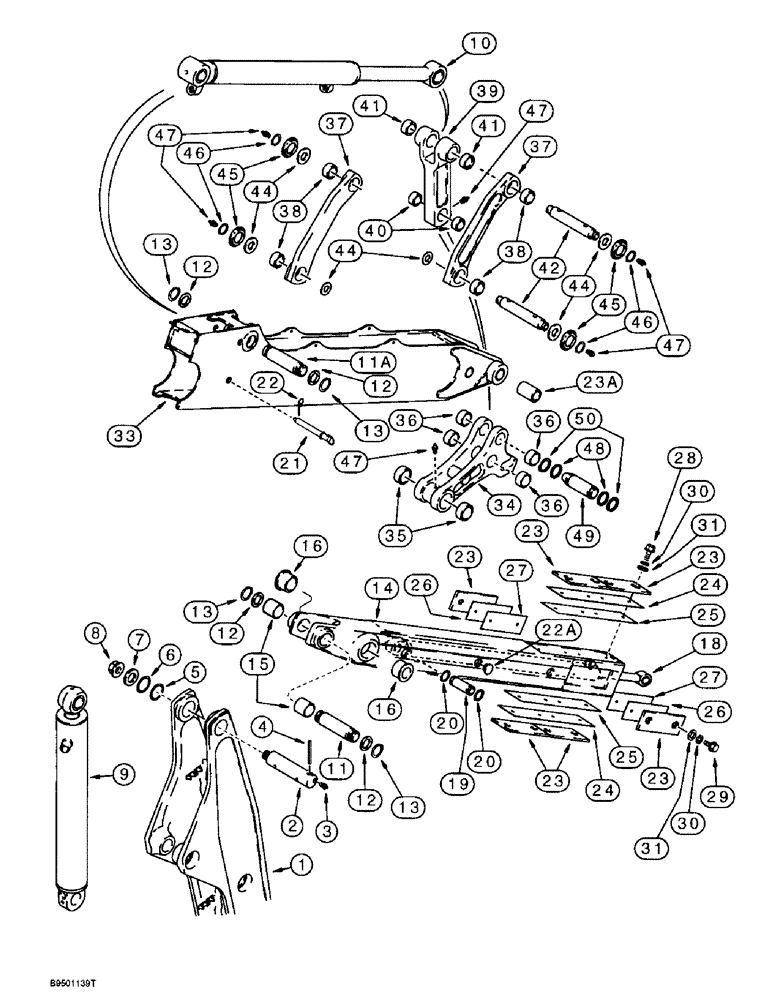

Запчасти Case 590L (9-048) - EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

140505A1

BOOM

- backhoe, complete, see Figure 9-38 for bushings

1шт.

2

175313A1

PIN

-Boom to dipper

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, straight

2шт.

4

435-51660

GROOVED PIN,1/2" x 3 3/4", Type E, Hardened

Pin, Grooved, , center groove 1/2" x 3 3/4", Type E, Hardened

1шт.

5

D144486

SHIM,82mm ID x 98mm OD x 1.57mm Thk

1шт.

6

D144485

SHIM,82mm ID x 98mm OD x 3.05mm Thk

1шт.

7

175318A1

WASHER

- flat, special, hardened, 45 ID x 8 mm thick

1шт.

8

181042A1

FLANGE NUT

- hex flange, special, 1-3/4 inch NF

1шт.

9

140965A1

CYLINDER,Double Acting, 69.8mm Rod, 564.2mm Stroke

ASSEMBLY - 140 (5-1/2) ID x 564 mm (22-7/32 inch) stroke, dipper, parts list Figure 8-160

1шт.

9

140965A1R

REMAN-HYD CYLINDER

590SL

1шт.

9

140965A1C

CORE-HYD CYLINDER

Return Number

1шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY - 89 (3-1/2) ID x 872 mnm (34-5/16 inch) stroke, bucket, parts list Figure 8-162 or 8-164

1шт.

11

175581A1

PIN,70mm OD x 230mm L

- dipper cylinder mounting

1шт.

11a

175316A1

PIN,60mm OD x 199mm L

- bucket cylinder mounting

1шт.

12

H433285

SPACER

SHIM - 57 x 76 x 1.5 mm

1шт.

13

800-1155

RETAINER,55mm ID

RING - external retaining, No. 55, pin retaining

2шт.

D150963

BOOM

DIPPER ASSEMBLY - extension, inner, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

DIPPER - inner

1шт.

15

D144161

BUSHING,70.19mm ID x 80mm OD x 46mm L

- 70 (2-3/4) ID x 50 mm (2 inch) long, dipper cylinder rod end pivot

2шт.

16

D151059

BUSHING,80.19mm ID x 104mm OD x 42mm L

- 80 (3-5/32) ID x 46 mm (1-13/16 inch) long, boom to dipper pivot

2шт.

18

1340853C2

CYLINDER,Double Acting, 44.4mm Rod, 1220mm Stroke

ASSEMBLY - 76 (3) ID x 1220 mm (48 inch) stroke, dipper extension, parts list Figure 8-166

1шт.

19

175815A1

PIN

- dipper extension cylinder closed end

1шт.

20

800-44040

SNAP RING,M40, Ext

RING - external retaining, No. 40, pin retaining

2шт.

21

D140247

LOCK PIN,25.4mm OD x 232.6mm L

PIN, LOCK, Used at dipper extension cylinder closed end when transporting only, Used with Ref. 22 lock pin

1шт.

22

A33509

PIN,11.18mm OD

- lock, 7/16 inch diameter

1шт.

22a

D133865

PLUG

- plastic, inner dipper extension

4шт.

23

D141998

LARGE PLATE

PLATE - wear, plastic

6шт.

23a

D127168

BUSHING,44.6mm ID x 57.15mm OD x 94mm L

- 45 ID x 94 mm long, bucket coupler pivot

2шт.

New bushing P/N 307186A1 is 194 mm. Old bushing P/N D127168 is 94 mm. The new longer bushing won't let the bushing work out of the bore.

1шт.

24

D140874

BLOCK

SHIM - 1.6 mm thick, wear plate

1шт.

25

D140873

BLOCK

SHIM - 0.76 mm thick, wear plate

1шт.

26

D140886

SHIM,116mm OD x 1.6mm Thk

SHIM - 1.6 mm thick, wear plate

1шт.

27

D140885

BLOCK

SHIM - 0.8 mm thick, wear plate

1шт.

28

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

29

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

- hex serrated flange, 3/8 NC x 1/2 inch, replaces D143961 hex flange self-locking bolt

4шт.

30

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

12шт.

31

D143167

WASHER

- special

12шт.

32

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 3/32 inch, used as a spacer between outer dipper housing and bucket guide links

2шт.

33

108942A1

DIPPER

HOUSING - dipper, outer

1шт.

Dipper housing on the right-hand end there is a reinforcment ear that is broken down on print no. 108944A1. There is a flat washer that is P/N 95-81154 that can be ordered from GPS. Advise the dealer that great care must be used when welding because there is a very low tolerance.

1шт.

134437A1

COUPLING

COUPLER ASSEMBLY - bucket, used with Ref. 37 and 39 links, if used, Includes: Ref. 38

1шт.

See Figure 9-44, Ref. 37 - 44, for optional coupler and bucket links.

1шт.

34

NSS

NOT SOLD SEPARAT

COUPLER - backhoe bucket

1шт.

35

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

LINK - bucket guide, used with 281185A1 coupler, if used

2шт.

36

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

- 28 mm long, at bucket link

4шт.

37

D150608

PITMAN

LINK - 33 mm wide bushing, bucket guide, used with 134437A1 coupler, if used, Includes: Ref. 38

2шт.

See Figure 9-44, Ref. 37 - 44, for optional coupler and bucket links.

1шт.

38

D150122

BUSHING

- 50 x 60 x 33 mm

2шт.

39

D150080

PITMAN

LINK - bucket dump, with two bushings at forked end, used with 134437A1 coupler, if used, Includes: Ref. 40 and 41

1шт.

See Figure 9-44, Ref. 37 - 44, for optional coupler and bucket links.

1шт.

40

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

- 28 mm long

2шт.

41

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

- 54 mm (2-1/8 inch) long

2шт.

42

175317A1

PIN

- guide links

2шт.

44

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 3/32 inch

1шт.

45

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

- 1-13/16 x 3 x 1/8 inch

4шт.

46

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

47

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

6шт.

48

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

2шт.

49

D146288

PIN,44.45mm OD x 167mm L

Dump Link to Bucket Coupler

1шт.

50

103-16175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.
