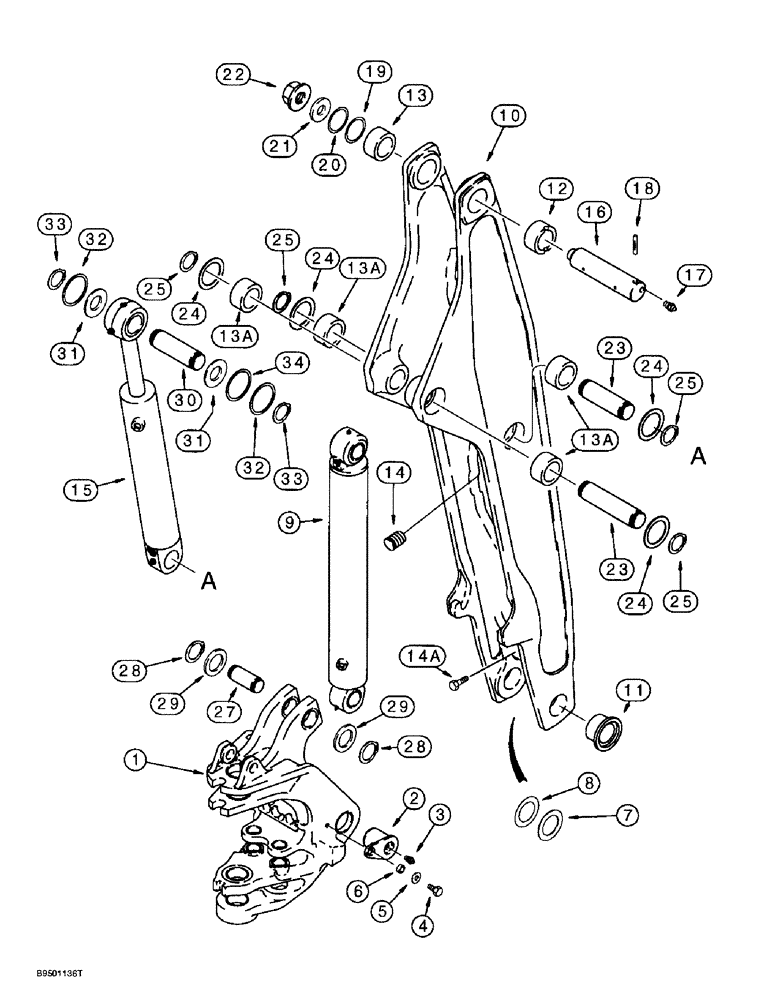

Запчасти Case 590L (9-038) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SWING TOWER - backhoe, with inner ears, see Figure 9-36 for swing tower and bushings

1шт.

2

175596A1

PIN

- swing, tower, boom

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

4

604-20040

BOLT,Hex, M20 x 40mm, Cl 8.8

- hex, self-locking, 20 - 2.5 x 40 mm, replaces 614-20040 bolt used on some models

2шт.

5

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

- flat, 13/16 x 1-3/4 x 7/32 inch, hardened

2шт.

6

122897A1

SPACER,21mm ID x 31.75mm OD x 12mm L

- 21 x 32 x 12 mm

2шт.

7

D144485

SHIM,82mm ID x 98mm OD x 3.05mm Thk

Boom to swing tower 3.05mm Thk

1шт.

8

D144486

SHIM,82mm ID x 98mm OD x 1.57mm Thk

1шт.

9

175785A1

CYLINDER,Double Acting, 63.5mm Rod, 975.7mm Stroke

ASSEMBLY - 140 (5-1/2) ID x 976 mm (38-13/32 inch) stroke, boom, parts list Figure 8-158

1шт.

9

175785A1R

REMAN-HYD CYLINDER

590SL

1шт.

9

175785A1C

CORE-HYD CYLINDER

Return Number

1шт.

10

140505A1

BOOM

- backhoe, Includes: Ref. 11 - 14A

1шт.

11

D151059

BUSHING,80.19mm ID x 104mm OD x 42mm L

- 80 (3-5/32) ID x 46 mm (1-13/16 inch) long

2шт.

12

D144197

BUSHING,80.19mm ID x 100mm OD x 56mm L

- 80 (3-5/32) ID x 56 mm (2-7/32 inch) long, with slot for groove pin, right-hand side of boom at boom to dipper pivot

1шт.

13

D144168

BUSHING,80.19mm ID x 100mm OD x 56mm L

- 80 (3-5/32) ID x 44 mm (1-3/4 inc) long, without slot for groove pin, left-hand side of boom at boom to dipper pivot

1шт.

13a

D144161

BUSHING,70.19mm ID x 80mm OD x 46mm L

- 70 (2-3/4) ID x 50 mm (2 inch) long, dipper and boom cylinder pivot

4шт.

14

D120450

PLUG

- plastic

7шт.

14a

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, Boom bumper, See Figure 9-42, Ref. 18 for mounting, No longer included with boom assembly, Purchase separately Hex, M10 x 30, 8.8

1шт.

15

140965A1

CYLINDER,Double Acting, 69.8mm Rod, 564.2mm Stroke

ASSEMBLY - 140 (5-1/2) ID x 564 mm (22-7/32 inch) stroke, dipper, parts list Figure 8-160

1шт.

15

140965A1R

REMAN-HYD CYLINDER

590SL

1шт.

15

140965A1C

CORE-HYD CYLINDER

Return Number

1шт.

16

175313A1

PIN

-Boom, dipper

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

18

435-51660

GROOVED PIN,1/2" x 3 3/4", Type E, Hardened

Pin, Grooved, , center groove 1/2" x 3 3/4", Type E, Hardened

1шт.

19

D144486

SHIM,82mm ID x 98mm OD x 1.57mm Thk

Boom to dipper 1.57mm Thk

1шт.

20

D144485

SHIM,82mm ID x 98mm OD x 3.05mm Thk

Boom to dipper 3.05mm Thk

1шт.

21

175318A1

WASHER

- flat, special, hardened, 45 ID x 8 mm thick

1шт.

22

181042A1

FLANGE NUT

- hex flange, special, 1-3/4 inch NF

1шт.

23

175581A1

PIN,70mm OD x 230mm L

-Cylinders, boom

2шт.

24

175323A1

SHIM

- 1.6 mm thick

4шт.

25

800-40065

SNAP RING,M65, Ext

RING - external retaining, No. 65, pin retaining

4шт.

27

175315A1

PIN,80mm OD x 160.5mm L

- boom cylinder rod end to swing tower

1шт.

28

800-40080

SNAP RING,M80, Ext

RING - external retaining, No. 80, pin retaining

2шт.

29

D144486

SHIM,82mm ID x 98mm OD x 1.57mm Thk

1шт.

30

175581A1

PIN,70mm OD x 230mm L

- dipper cylinder rod, end, dipper

1шт.

31

175321A1

SHIM

- 72 ID x 3.0 mm thick

1шт.

32

175323A1

SHIM

- 1.6 mm thick

1шт.

33

800-40065

SNAP RING,M65, Ext

RING - external retaining, No. 65, pin retaining

2шт.

34

175319A1

SHIM

- 72 ID x 1.6 mm thick, right-hand side

1шт.
