(9-030) - BACKHOE CONTROLS WITH HAND SWING, LOWER CONTROL LEVERS, WITH NON-EXTENDABLE DIPPER

Запчасти Case 590L (9-030) - BACKHOE CONTROLS WITH HAND SWING, LOWER CONTROL LEVERS, WITH NON-EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

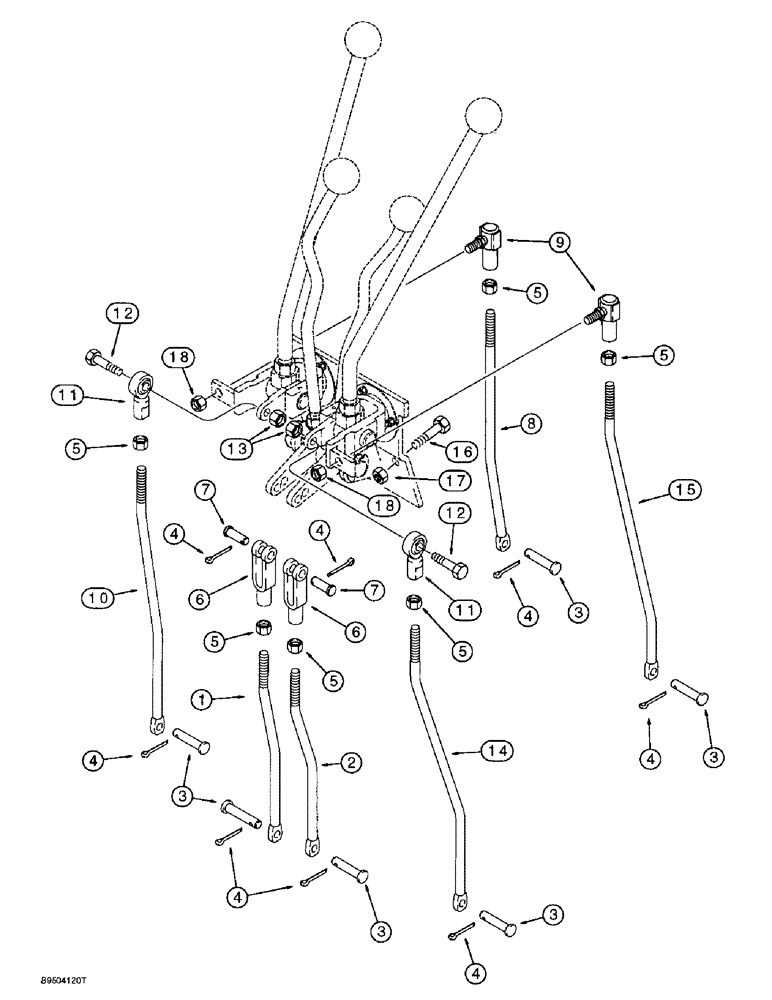

Схема запчастей Case 590L - (9-030) - BACKHOE CONTROLS WITH HAND SWING, LOWER CONTROL LEVERS, WITH NON-EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS
13
17
7
5
5
4
4
2
18
5
11
5
12
4
14
3
9
8
6
3
7
18
4
5
15
12
10
4
5
3
4
3
16
1
11
4
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

185981A1

THREADED ROD

ROD - stabilizer, right-hand stabilizer

1шт.

2

185982A1

THREADED ROD

ROD - stabilizer, left-hand stabilizer

1шт.

3

D149287

PIN,7.9mm OD x 26.72mm L

- Clevis, Special, 5/16 x 15/16 inch, hardened, Serial Range: rods-valve

6шт.

4

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

8шт.

5

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

6шт.

6

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8 inch NF

2шт.

7

D149288

PIN,8.33mm OD x 30.66mm L

- Clevis, Special

2шт.

8

185977A1

THREADED ROD

ROD - bucket control

1шт.

9

D149295

BALL JOINT,3/8"

JOINT - ball, control rod

2шт.

10

185978A1

THREADED ROD

ROD - dipper control

1шт.

11

D136773

BALL JOINT

JOINT - ball, 3/8 inch NF, control rods

2шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

185979A1

THREADED ROD

ROD - boom control

1шт.

15

185980A1

THREADED ROD

ROD - swing control

1шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

18

231-2446

NUT,3/8"-24, GB

NUT - hex, self-locking, 3/8 inch NF

2шт.
