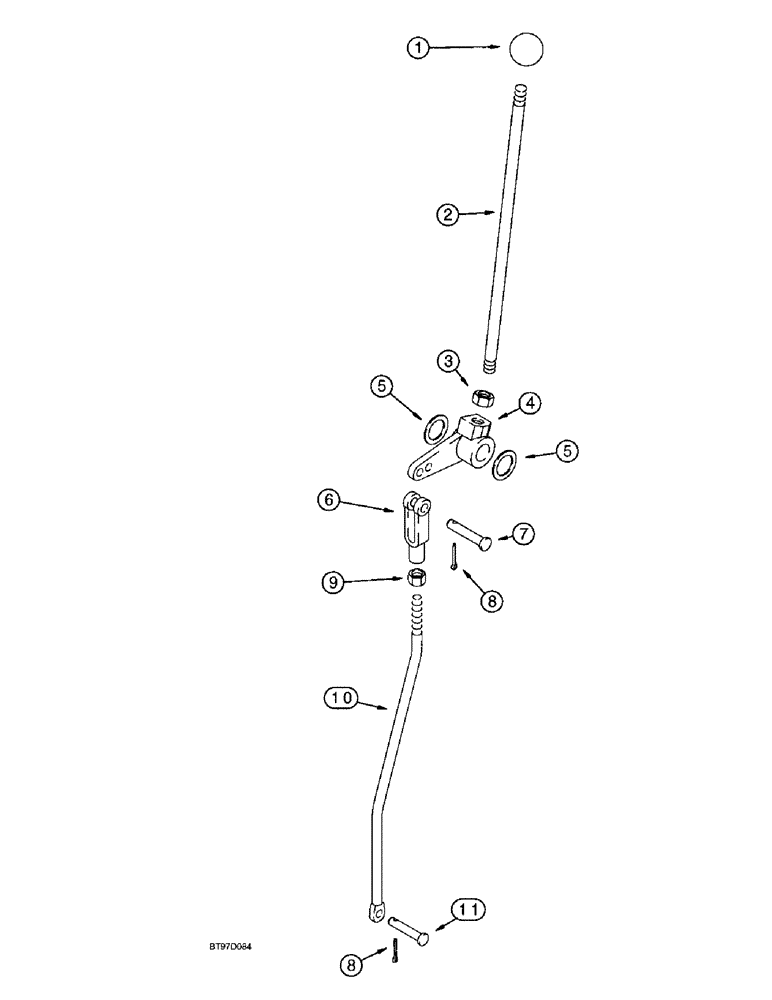

Запчасти Case 590L (9-026) - BACKHOE CONTROLS WITH FOOT SWING, PARTS USED WITH EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

- control lever, extendahoe

1шт.

2

136263A1

ROD,12.7mm OD x 407mm L

LEVER - control, extendahoe

1шт.

3

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

4

182006A1

LEVER

BELLCRANK - extendahoe control lever

1шт.

5

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - special, hardened, flat, spacer

1шт.

6

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8 inch NF

1шт.

7

427-6088

CLEVIS PIN,3/8" x 3/4"

PIN - clevis, 3/8 x 7/8 inch, hardened

1шт.

8

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

9

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

10

189293A1

ROD

- extendahoe control, Serial Range: lever-valve

1шт.

11

D149287

PIN,7.9mm OD x 26.72mm L

- Clevis, Special, 5/16 x 15/16 inch, hardened, Serial Range: rod-valve

1шт.
