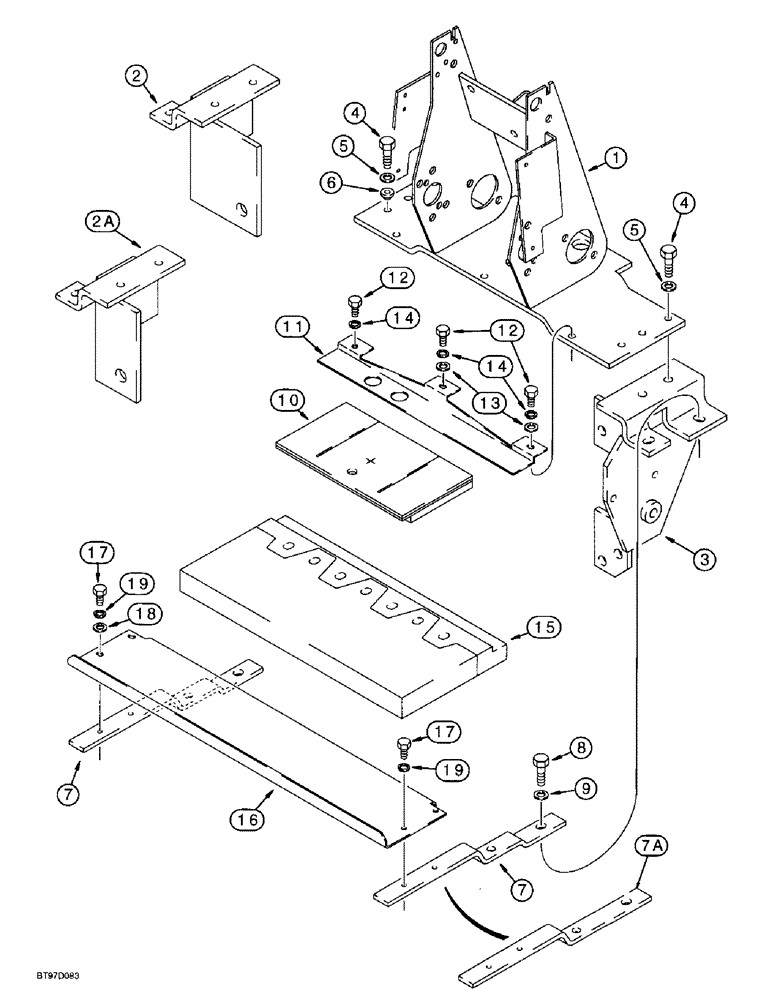

Запчасти Case 590L (9-018) - BACKHOE CONTROL TOWER SUPPORT AND SEALS (09) - CHASSIS/ATTACHMENTS

1

185975A1

SUPPORT

- backhoe control mounting

1шт.

2

224952A1

BRACKET

- mounting, left-hand, 6 spool valve, replaces 193360A1

1шт.

2a

224949A1

BRACKET

- mounting, left-hand, 7 spool valve, replaces 193359A1

1шт.

3

224946A1

BRACKET

- mounting, right-hand, valve mounting, replaces 193355A1

1шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm

4шт.

5

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

6

179956A1

INSULATOR,10.16mm ID x 27.7mm OD x 11.2mm L

Mount - Console

2шт.

7

194548A1

BRACKET

- support, seal and brackets, if used

2шт.

7a

225018A1

STRAP

BRACKET - support, seal and brackets, if used

2шт.

8

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

May use 4 to mount LH and RH brackets or may use 2 to mount left-hand bracket and 2 of 614-10030 to mount right-hand bracket Hex, M10 x 60, 8.8

2-4шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, Used on RH bracket, if used Hex, M10 x 30, 8.8

2шт.

9

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

10

182295A1

SUPPORT

SEAL - foam, control tower

1шт.

11

184695A1

SUPPORT

BRACKET - seal support, front

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

3шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

15

190721A1

BAFFLE

SEAL - noise reduction, backhoe valve rods

1шт.

16

184694A1

CHANNEL

BRACKET - seal support, rear

1шт.

17

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.
