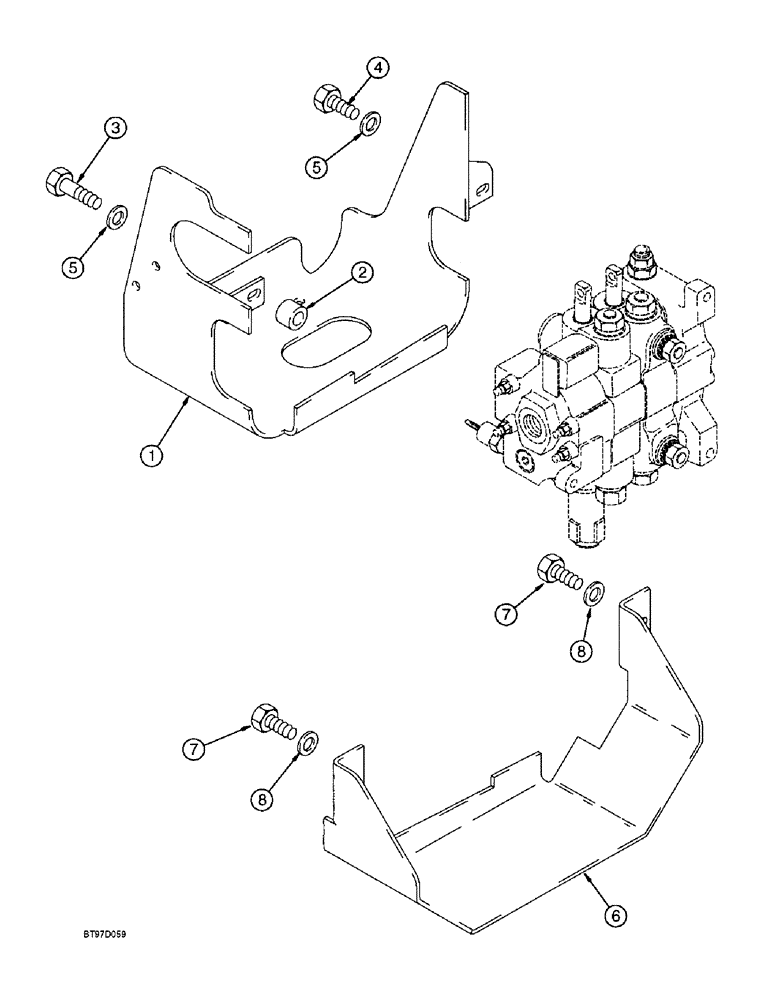

Запчасти Case 590L (9-017A) - LOADER VALVE GUARD (09) - CHASSIS/ATTACHMENTS

230241A1

PACKAGE, REPAIR

KIT - guard, loader valve, purchase from Parts and Components, if used, Includes: Ref. 1 - 5

1шт.

1

228944A2

PROTECTOR

GUARD - valve shield

1шт.

2

F44505

SPACER

- valve, used on models with two spool valves

1шт.

3

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

1шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

1шт.

5

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

6

238048A1

SHIELD

GUARD - valve shield, if used

1шт.

7

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

8

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.
