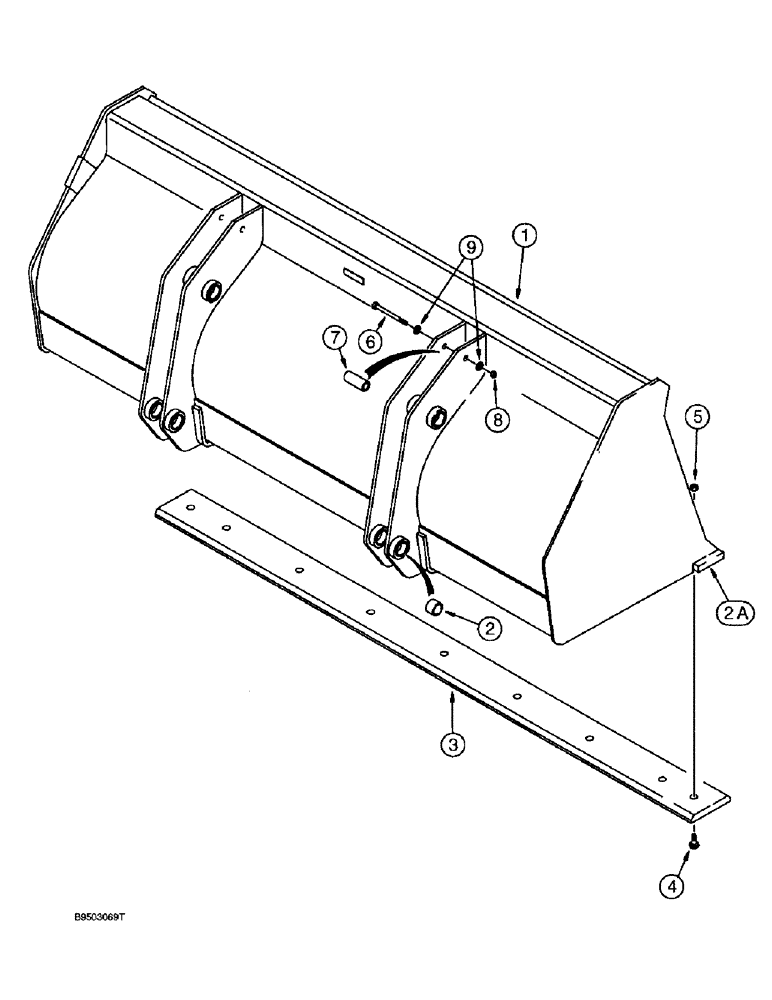

Запчасти Case 590L (9-014) - LOADER LONG LIP BUCKET (09) - CHASSIS/ATTACHMENTS

198539A1

BUCKET

ASSEMBLY - loader, without bucket teeth, order from Machinery Price List, 2362 mm (93 inch) wide, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

- bucket ear

8шт.

2a

134844A1

CUTTING EDGE,Bolt On, 10 Holes, 12mm W x 2389mm L

EDGE, CUTTING, Weld-on, blade mounting

1шт.

3

185506A1

CUTTING EDGE

EDGE, CUTTING, Bolt-On, 93" (2362 mm) bucket

1шт.

4

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

BOLT, PLOW, 3/4"-10 x 2", G8, Full Thd

10шт.

5

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

10шт.

6

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

- hex, 20 - 2.5 x 160 mm, class 10.9

2шт.

7

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

- chain hook

2шт.

8

832-10420

NUT,M20 x 2.5, Cl 8

NUT, LOCK, M20 x 2.5, Cl 8

2шт.

9

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

4шт.
