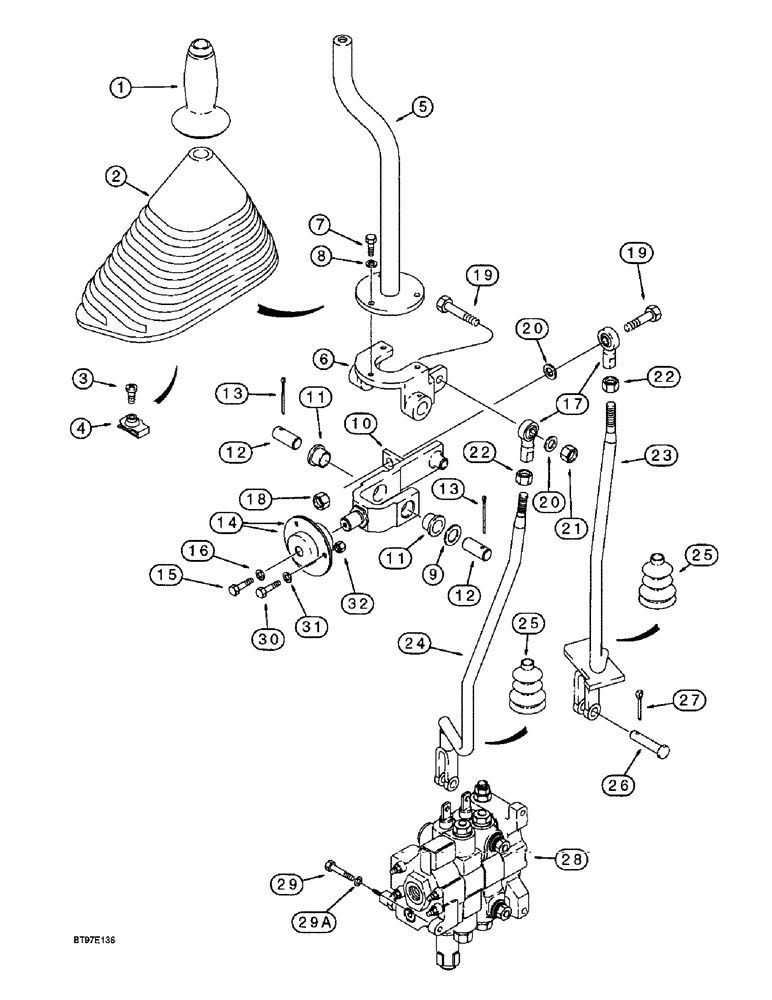

Запчасти Case 590L (9-002) - LOADER LIFT AND BUCKET CONTROLS (09) - CHASSIS/ATTACHMENTS

1

138605A1

HANDLE

- control lever, see Figure 4-20 for clutch cutout harness, switch and cover

1шт.

2

133615A1

BOOT

- control lever, models without clam control lever, see Figure 9-6 for boot used on models with clam control lever

1шт.

3

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

1шт.

4

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

5

132661A1

LEVER

- control, loader lift and bucket control, see Figure 4-20 for clutch cutout harness, switch and cover

1шт.

6

195615A1

SUPPORT

BRACKET - control, Serial Range: lever-bellcrank

1шт.

7

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

8

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

9

495-81184

WASHER,21/32" x 1 1/2" x .030"

- flat, 21/32 x 1-1/2 x 1/32 inch, use as a spacer

1шт.

10

176311A1

BELLCRANK

- control, loader lift and bucket control, Includes: Ref. 11

1шт.

11

108088A1

BUSHING,15.96mm ID x 19.15mm OD x 15mm L

- flanged, bellcrank

2шт.

12

102761A1

PIN,15.91mm OD x 35mm L

Bellcrank to control lever bracket

2шт.

13

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

2шт.

14

112380A1

BEARING ASSY

Retainer

2шт.

15

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

16

396-41028

WASHER,.281" x 7/8" x .098", HDN

- flat, 9/32 x 7/8 x 3/32 inch, hardened

1шт.

17

D136773

BALL JOINT

JOINT - ball, 3/8 inch NF

2шт.

18

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Hex, self-locking 3/8"-16, GB

1шт.

19

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

20

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened, Replaces 495-11041, 1/16" thick washer used on some models

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

2шт.

23

122359A1

THREADED ROD

ROD - bucket control

1шт.

24

120204A1

THREADED ROD

ROD - lift control

1шт.

25

132931A1

BOOT

1/2" rod, at loader valve

2шт.

26

D149288

PIN,8.33mm OD x 30.66mm L

- Clevis, Special

2шт.

27

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

28

REF

INSTRUCTION

VALVE ASSEMBLY - control, loader, two spool, for correct assembly and components, see Figure 8-84

1шт.

29

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm, replaces 183586A1 hex washer head bolt and 614-10035 35 mm long bolt used on some models

3шт.

29a

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

Replaces 895-11010, 2 mm thick washer used on some models M10 x 21.5 x 2.5, HT

3шт.

30

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm

3шт.

31

396-41028

WASHER,.281" x 7/8" x .098", HDN

- flat, 9/32 x 7/8 x 3/32 inch, hardened

3шт.

32

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.
