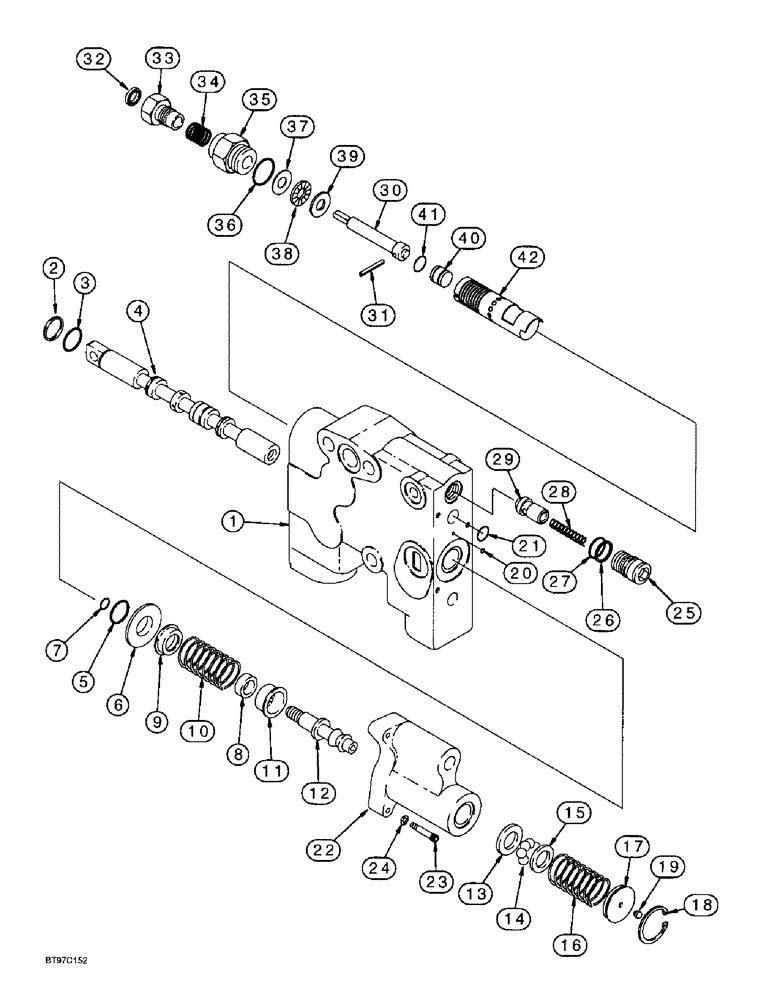

Запчасти Case 590L (8-136) - AUXILIARY VALVE, BACKHOE SECTION (08) - HYDRAULICS

131158A3

ELEMENT

SECTION ASSEMBLY - backhoe auxiliary hydraulics, replaces 131158A2, Includes: Ref. 1 - 42

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - section

1шт.

2

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

WIPER - shaft seal

1шт.

3

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

- spool

1шт.

131196A1

SPOOL

ASSEMBLY - detent, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - detent

1шт.

5

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

- spool

1шт.

6

G108630

HOLDER

RETAINER - O-ring

1шт.

7

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

8

1980085C1

SPACER

STOP - spool

1шт.

9

G108914

SPRING CUP

SEAT - spring, upper

1шт.

10

130932A1

SPRING

- centering

1шт.

11

G108913

SPRING CUP

SEAT - spring, lower

1шт.

12

1980084C3

STUD

SHAFT - detent

1шт.

13

G108912

WASHER

- detent, ball

1шт.

14

211-1007

BALL,7/32" Dia

Chrome alloy steel, Gr 24 7/32" Dia

8шт.

15

G108911

WASHER

- detent, ball

1шт.

16

130919A1

SPRING

- detent

1шт.

17

1341975C1

SPRING CUP

RETAINER - detent, spring

1шт.

18

100-21118

SNAP RING,1.188", Int, #118

Ring, Snap, (Replaces A30975) 1.188", Int, #118

1шт.

19

G107780

VALVE, CHECK

PLUG - check valve

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

22

129391A1

CAP

HOUSING - detent

1шт.

23

61-31016

HEX SOC SCREW,#10 - 24 x 1"

SCREW, , Detent housing retaining Hex Soc Hd, #10-24 x 1"

3шт.

24

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

(Flat, 7/32" x 7/16" x 3/64") #10

3шт.

1542563C1

KIT

VALVE ASSEMBLY - check, Includes: Ref. 25 - 29

1шт.

25

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

26

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

- backup

1шт.

27

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

28

1994581C1

SPRING,6.1mm OD x 31.1mm L

- load check

1шт.

29

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

PLUG - poppet

1шт.

1343791C2

SET OF PARTS

KIT - flow control adjustment, for service order 1343735C2 kit and 8-95140 instruction sheet, 1343735C2 kit, includes Ref. 30 - 39

1шт.

30

1980302C2

ROD

ASSEMBLY - adjusting, flow control, Includes: Ref. 31

1шт.

31

38-1811

LOCK PIN,1/8" x 11/16", Slotted

Pin, , replaces 138-56 1/8" x 11/16", Slotted

1шт.

32

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

- oil, adjusting rod

1шт.

33

1980227C1

NUT

NUT - compression

1шт.

34

1986628C1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- 3/8 ID x 9/16 inch wide, rod seal

5шт.

35

1980226C1

PLUG

- adjusting, flow

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

37

G108956

RACE,9.58mm ID x 20.37mm OD x 0.81mm Thk

- bearing, thin

1шт.

38

F13537

THRUST BEARING

BEARING - thrust

1шт.

39

G108957

RACE,9.58mm ID x 20.37mm OD x 1.59mm Thk

- bearing, thick

1шт.

175455A4

SLEEVE ASSY

SLEEVE ASSEMBLY - flow control, replaces 175455A2 and 175455A3, Includes: Ref. 40 - 42

1шт.

40

NSS

NOT SOLD SEPARAT

PLUG - spool

1шт.

41

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- 7/16 ID x 1/16 inch wide

1шт.

42

NSS

NOT SOLD SEPARAT

SPOOL - flow control

1шт.
