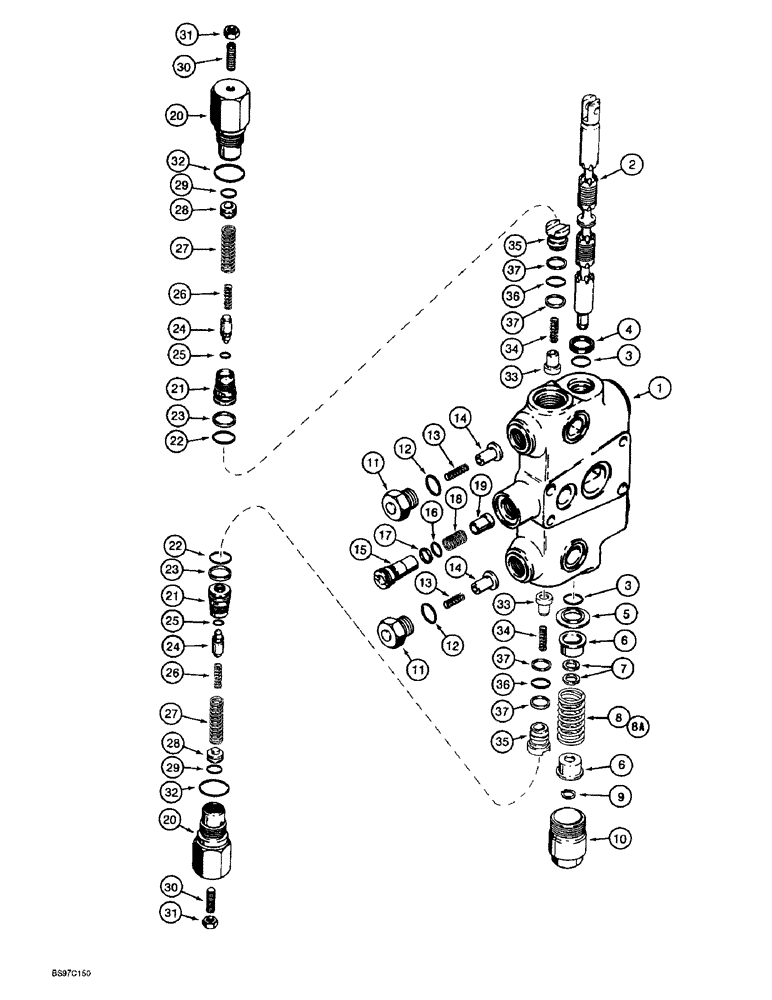

Запчасти Case 590L (8-126) - 241088A3 BACKHOE CONTROL VALVE, SWING SECTIONS (08) - HYDRAULICS

241088A3

HYD VALVE SECTION

SECTION ASSEMBLY - swing, uses Ref. 8 spring, foot swing control valves, with circuit relief and anticavitation valves, replaces 241088A2 section, if used, Includes: Ref. 1 - 19

1шт.

243145A3

HYD VALVE SECTION

SECTION ASSEMBLY - swing, uses Ref. 8A spring, hand swing control valves, with circuit relief and anticavitation valves, replaces 243145A2 section, if used, Includes: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - swing section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - swing section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil, spool

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

7

G106410

SPACER

- spool

2шт.

8

1986722C1

SPRING

- centering, black, 2-1/4 inch free length, spool, used in 241088A2 or 241088A3 swing section

1шт.

8a

1994596C1

SPRING

- centering, purple, 2-15/16 inch free length, spool, used in 243145A2 or 243145A3 swing section

1шт.

9

100-1647

SNAP RING,#47, Ext

Ring, Snap, , Spool end (Replaces G33077) #47, Ext

1шт.

10

G33080

CAP

- centering spring, spool end

1шт.

1346221C1

VALVE

ASSEMBLY - anticavitation, order Ref. 11 - 14

2шт.

11

G34937

PLUG

- anticavitation valve

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

13

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- anticavitation valve

1шт.

14

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET - anticavitation valve

1шт.

1346222C1

VALVE

ASSEMBLY - check, order Ref. 15 - 17

1шт.

15

G109964

HOUSING

- valve check

1шт.

16

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

17

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

- backup

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

18

G109971

SPRING

- valve check

1шт.

19

1978068C1

VALVE POPPET

POPPET - valve check

1шт.

G107786

VALVE, PRESSURE RELI

VALVE ASSEMBLY - circuit relief, swing section, used in production, order G109449 kit for service, Includes: Ref. 20 - 32

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - circuit relief valve

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

23

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, seat O-ring

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

24

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - relief, inner

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING - relief, outer

1шт.

28

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

30

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

31

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 33 - 37

2шт.

33

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET - hollow poppet pin with orifice, load check

1шт.

34

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

- load check

1шт.

35

1343708C1

PLUG

- load check

1шт.

36

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Part of Service Kit, P/N G109449

1шт.

37

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup, plug O-ring

2шт.

Part of Service Kit, P/N G109449

1шт.

G109449

KIT

- service, for G107786 circuit relief valve, kit includes an instruction sheet and G109447 circuit relief valve, Ref. 20 - 32 which is the same as G107786 except with a different pressure setting

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

1346105C2

SEAL KIT

KIT seal, Includes Ref. 3, 4, 12, 16, 17, 22, 23 and 32, plus additional O-rings not required for this application

1шт.
