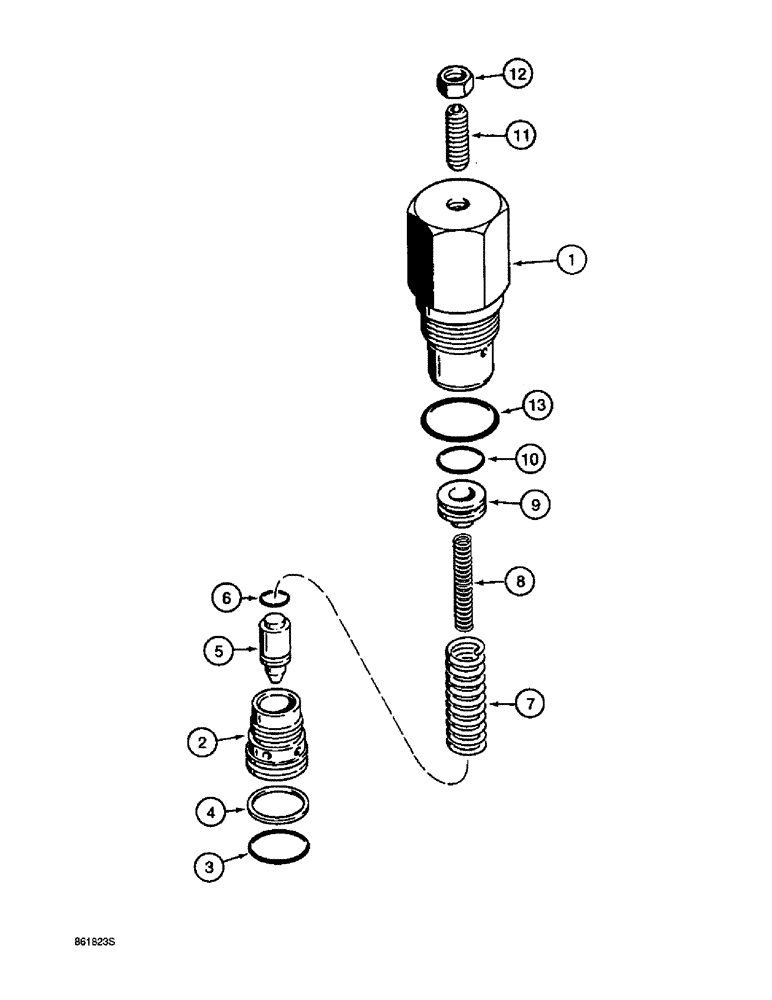

Запчасти Case 590L (8-098) - LOADER CONTROL VALVE, BUCKET SECTION CIRCUIT RELIEF VALVE (08) - HYDRAULICS

G109391

VALVE

ASSEMBLY - circuit relief, 3200 psi, one piece cap, used in production, order G109449 kit for service, Includes: Ref. 1 - 13

2шт.

Part of Service Kit, P/N G109449

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - circuit relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - relief, outer

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - relief, inner

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

11

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

12

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

G109449

KIT

- service, for G109391 circuit relief valve, kit includes an instruction sheet and G109447 circuit relief valve (Ref. 1-13) which is the same as G109391 except with a different pressure setting

1шт.
