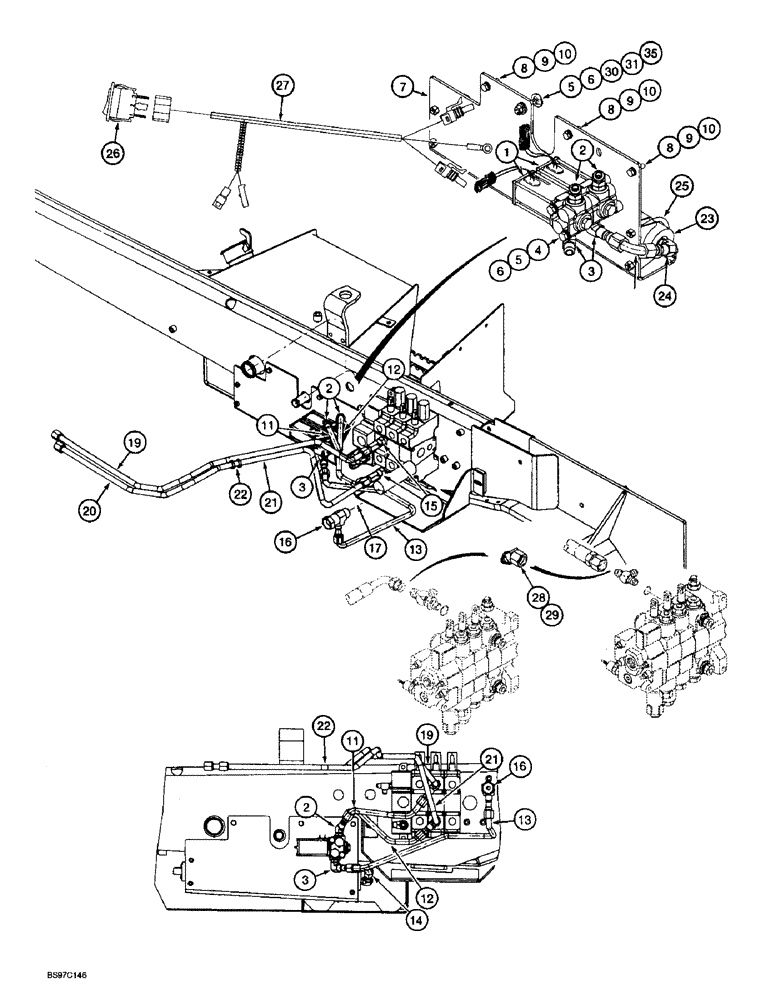

Запчасти Case 590L (8-078) - RIDE CONTROL HYDRAULIC, AND ELECTRICAL CIRCUIT (08) - HYDRAULICS

235369A1

PACKAGE

KIT - ride control, includes instructions, order from the Machinery Price List, also includes 238565A2 hose which is not used on the 590 Super L, Includes: Ref. 1 - 35

1шт.

1

224103A1

SOLENOID VALVE

VALVE ASSEMBLY - solenoid, two-way, component parts are not illustrated, Includes Kit, Coil, Screws Seal Kit and Valve Repair Kit

2шт.

237895A1

PACKAGE, REPAIR

KIT - solenoid repair, includes case, coil, end plate, screws, guide tube, sleeves and spring

1шт.

237896A1

COIL

- solenoid

1шт.

1986698C1

SCREW

- Fillister, No. 10 - 24 x 3-7/8 inch

4шт.

251980A1

SEAL KIT

KIT - seal, includes all O-rings

1шт.

253292A1

PACKAGE, REPAIR

KIT - valve repair, includes 251980A1 seal kit plus all springs

1шт.

2

218-5145

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 7/8-14 flare x 3/4-16 inch adj. O-ring, upper port of solenoid valves, Includes: Ref. 2A

2шт.

2a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Not shown

1шт.

3

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj. O-ring boss, lower port of solenoid valves, Includes: Ref. 3A

2шт.

3a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Not shown

1шт.

4

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2-4шт.

6

892-11010

LOCK WASHER,M10

2-4шт.

7

240693A2

SUPPORT

PLATE - mounting, two-way solenoid valve

1шт.

8

781-24830

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 30mm

BOLT - hex flange, self-tapping, 8 - 1.25 x 30 mm, if used, models without keyhole in frame

3шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , If used M8

3шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, If used

3шт.

11

240709A4

TUBE

- left-hand solenoid valve upper port to tee at loader control valve lift section upper port

1шт.

12

240711A4

TUBE

- right-hand solenoid valve upper port to tee at loader control valve lift section lower port

1шт.

13

240706A2

TUBE

- left-hand solenoid valve lower port to tee at filter

1шт.

14

240703A2

TUBE,15.88 mm OD

- accumulator to right-hand solenoid valve lower port

1шт.

15

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch flare branch x flare x swivel, attaches to tees at loader control valve lift section, see Figure 8-10 for tee at lift section upper and lower ports

2шт.

16

218-5490

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

- 7/8-14 flare branch x 1-5/16-12 inch flare x swivel, attaches to existing tee at filter (Ref. 37, Figure 8-2)

1шт.

17

230078A2

HOSE

- 415 mm (16-3/8 inch) long, replaces existing hose from loader valve to filter (Ref. 36, Figure 8-4), replaces 230078A1, 443 mm (17 inch) long hose

1шт.

19

230072A1

TUBE

- replaces existing tube (Figure 8-10) at loader valve upper lift port to left-hand loader lift cylinder rod end

1шт.

20

232941A1

TUBE

- replaces existing tube (Figure 8-10) at loader valve lower lift port to left-hand loader lift cylinder closed end

1шт.

21

238563A1

TUBE

- replaces existing tube (Figure 8-10) at loader valve lower lift port to left-hand loader lift cylinder closed end

1шт.

235369A1

PACKAGE

KIT - ride control, includes instructions, order from the Machinery Price List

1шт.

22

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR - straight, large hex, 7/8-14 inch flare

1шт.

23

234412A1

ACCUMULATOR,0.98L

ASSEMBLY - hydraulic, ride control, parts list Figure 8-142

1шт.

24

218-5600

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, O-Ring

- 90 degree, 7/8-14 flare x 3/4-16 inch adj. O-ring boss, Includes: Ref. 24A

1шт.

24a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Not shown

1шт.

25

A13240

CLAMP,2-5/8" ID

- two piece, includes hardware

2шт.

26

235002A1

ROCKER SWITCH

- ride control, mounts in side instrument panel console

1шт.

27

236197A3

HARNESS

- ride control, solenoid valves to ride control switch

1шт.

28

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

- 45 degree, 7/8-14 inch flare x swivel, for 5/8 hose ID, if used

1шт.

29

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degree, 1-1/16-12 inch flare x swivel, for 3/4 hose ID, if used

1шт.

30

711-10030

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

BOLT - carriage, 10 - 1.5 x 30 mm, if used, models with keyhole in frame

2шт.

31

829-1410

NUT,M10 x 1.5, Cl 10.9

If used M10, Cl 10

2шт.

32

121413A1

FUSE,15A, Mini, Blue

Not shown 15 Amp, Mini

1шт.

33

255927A1

WARNING DECAL

- Warning, do not turn the ride control on, if the loader arms and bucket are holding the front of the machine off the ground, mounts on console by ride control switch, not shown, see Figure 9-142 for decal

1шт.

34

256318A1

DECAL

- Warning, pressure accumulator in loader hydraulic system, mounts on accumulator mounting plate, not shown, see Figure 9-142 for decal

1шт.

35

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Used on models with keyhole in frame, if used M11 x 24 x 2

2шт.
